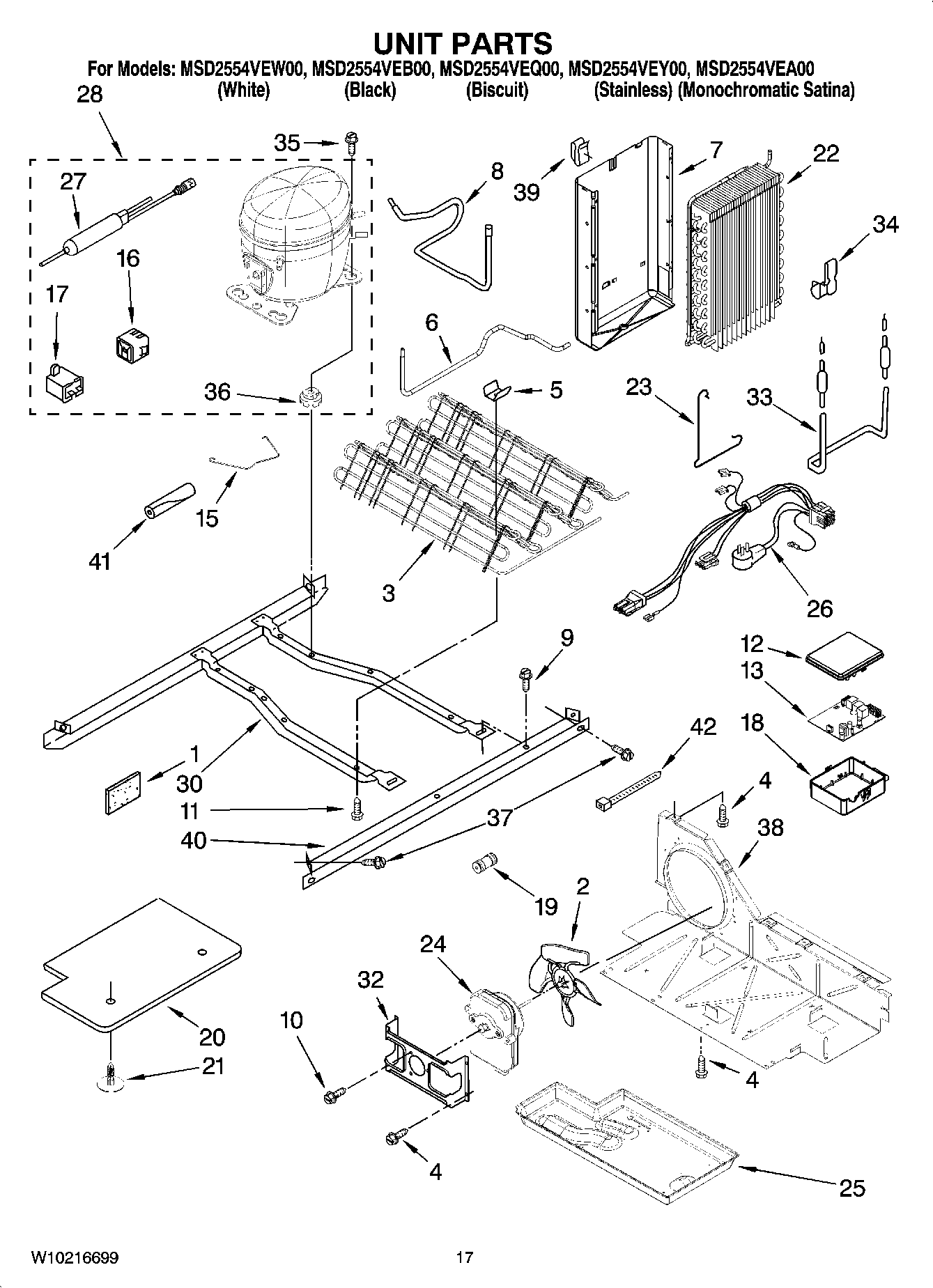

MSD2554VEW00 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	SEALER, INSULATION
2	Fan, Blade
3	MAY 2324712
4	Screw (3)
5	MAY 2311725
6	MAY 2325479
7	Heat Shield (Includes 26)
8	MAY 2205765
9	MAY 489427
10	MAY 8533993
11	MAY 8281232
12	Box Cover
13	MAY 2322572
15	MAY 2255199
16	Start Device, Combination (Start Relay and overload) for (Service)
17	CAPACITATOR (SERVICE)
18	MAY 2326982
19	Connector, Water
20	Unit Cover, Bottom
21	MAY 489396
22	Evaporator
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Harness, Unit
27	Drier
27	MAY 2319825
28	COMPRESSOR (ALSO ORDER 876765 TUBE KIT)
30	MAY 2304904
32	MAY 2181929
33	MAY 2188175
34	Clip
35	MAY 489373
36	MAY 4387558
36	Grommet (Production)
37	MAY 489340
38	MAY 2196202
39	MAY 2155547
40	MAY 2305374
41	Sleeve, Pressure Switch Hose
42	Wire Tie
