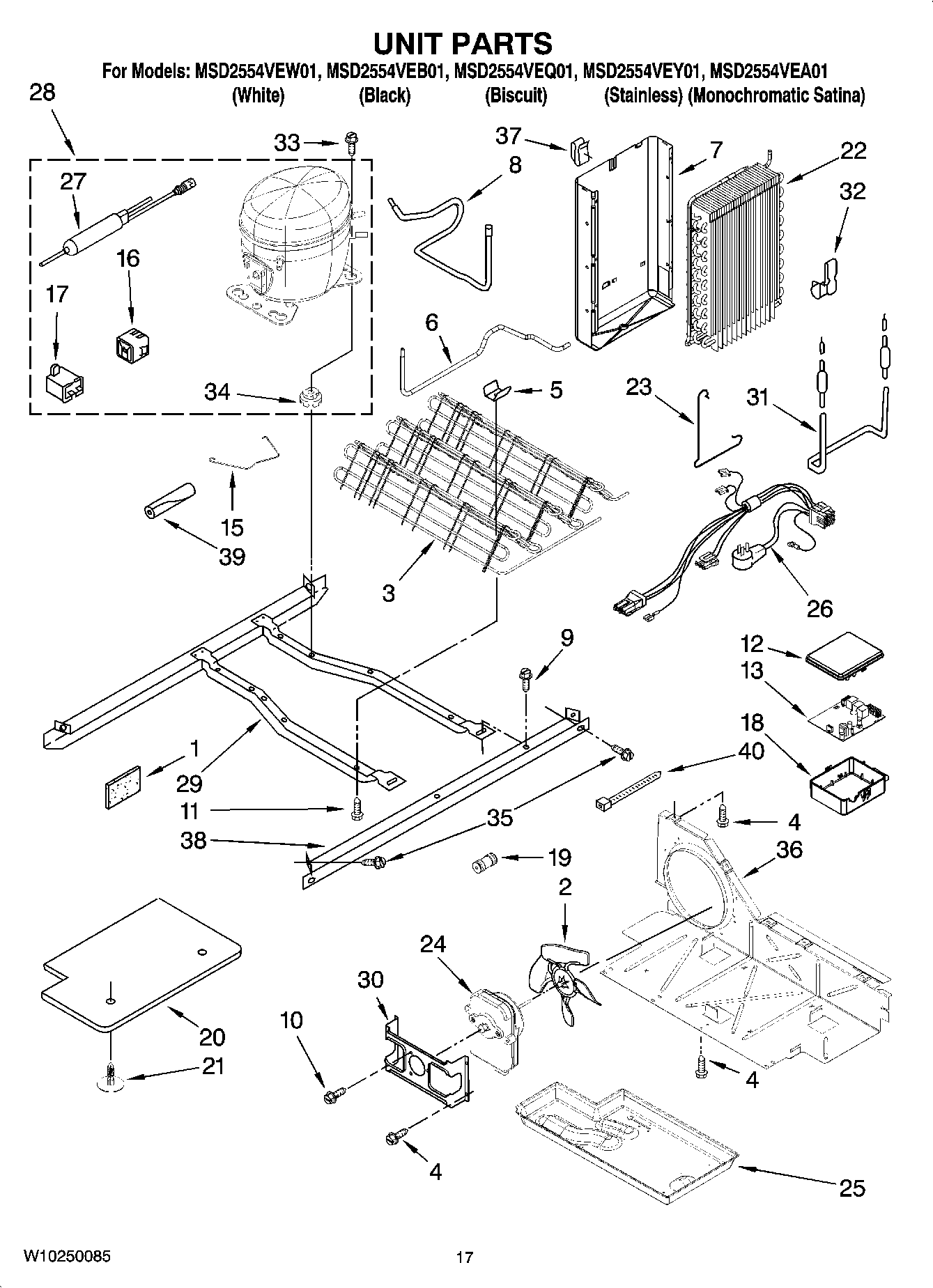

MSD2554VEW01 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	MAY 2215468
2	Fan, Blade
3	MAY 2324712
4	Screw (3)
5	MAY 2311725
6	MAY 2325479
7	Heat Shield
8	MAY 2205765
9	MAY 489427
10	MAY 8533993
11	MAY 8281232
12	Box Cover
13	MAY 2322572
15	Clip, Retaining
16	Start Device, Combination (Start Relay and overload) for (Service)
17	CAPACITATOR (SERVICE)
18	MAY 2326982
19	Connector, Water
20	Unit Cover, Bottom
21	MAY 489396
22	Evaporator
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Harness, Unit
27	Drier
27	Drier
28	COMPRESSOR (ALSO ORDER 876765 TUBE KIT)
29	Unit Mounting Frame
30	MAY 2181929
31	MAY 2188175
32	Clip
33	MAY 489373
34	MAY 4387558
34	Grommet (Production)
35	MAY 489340
36	MAY W10163483
37	MAY 2155547
38	MAY W10196323
39	Sleeve, Pressure Switch Hose
40	MAY 2263990
