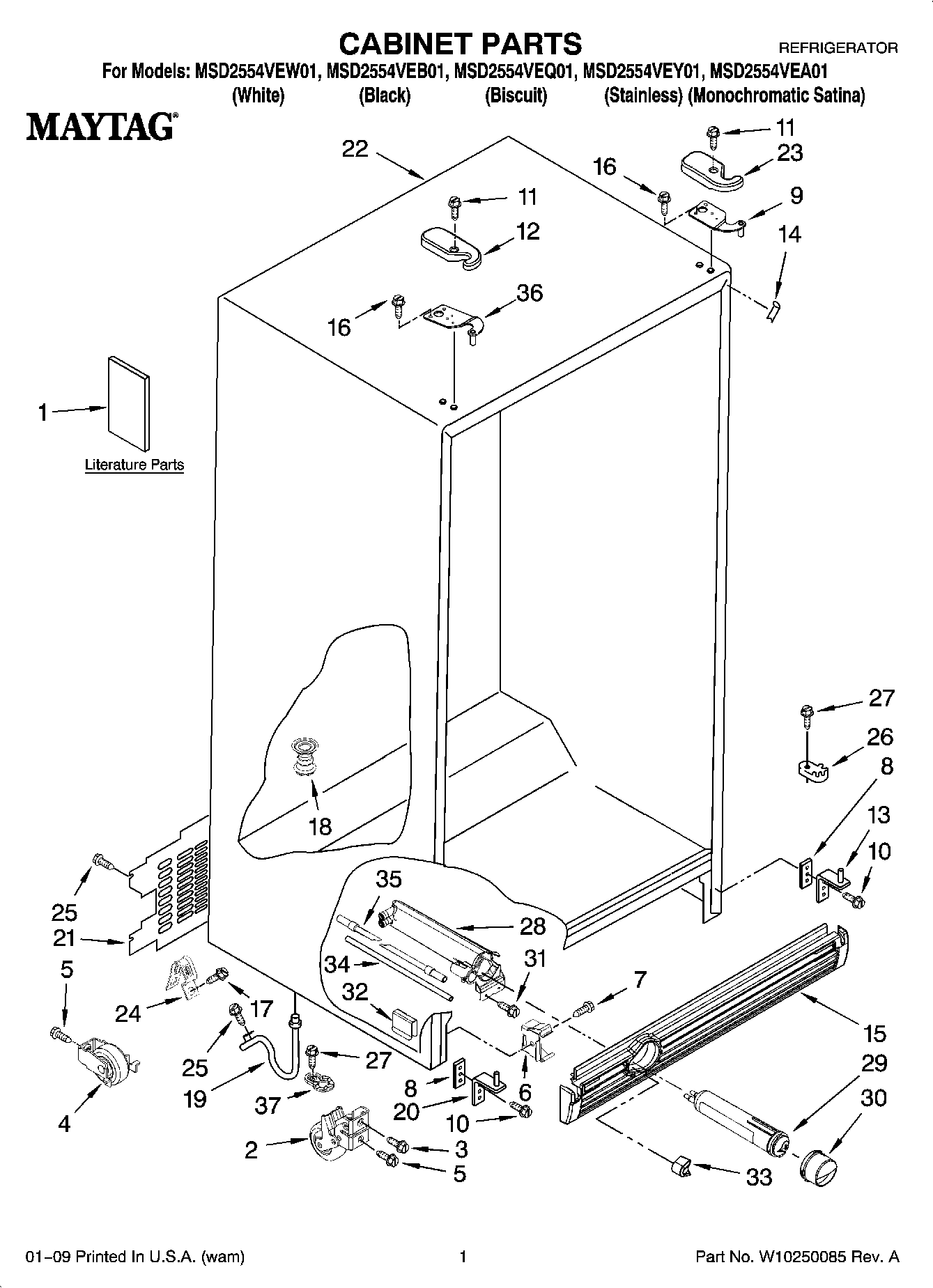

MSD2554VEY01 01 – CABINET PARTSadmin2025-04-26T13:11:08+00:00MSD2554VEY01 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10159882 |
| 1 | MAY W10180407 |
| 1 | MAY W10180857 |
| 1 | Instruction Sheet (Door Removal) |
| 2 | MAY 2174748 |
| 3 | MAY 3400517 |
| 4 | MAY 2196236 |
| 5 | MAY 489427 |
| 6 | MAY 2155013 |
| 7 | MAY 489478 |
| 8 | Shim (2) |
| 9 | HINGE TOP RC |
| 10 | Screw (4) |
| 11 | MAY 8281227 |
| 12 | COVER, HINGE (FREEZER) (GREY) |
| 12 | Hinge Cover (RC) (Black) |
| 12 | Hinge Cover (Biscuit) |
| 12 | Hinge Cover (RC) (White) |
| 13 | MAY 2217075 |
| 14 | MAY 2201017 |
| 14 | Filler, Wrapper (Apollo Grey) |
| 14 | Corner Filler (2) (White) |
| 15 | MAY 2323580B |
| 15 | MAY 2323580MG |
| 15 | MAY 2323580W |
| 15 | MAY 2323580T |
| 16 | MAY 489497 |
| 17 | Screw (3) |
| 18 | MAY 2304888 |
| 19 | MAY W10153550 |
| 20 | Hinge Bottom (FC) |
| 21 | MAY 2188735 |
| 23 | Hinge Cover (Biscuit) |
| 23 | Hinge Cover (FC) (Black) |
| 23 | COVER, HINGE (REFRIGERATOR) (GREY) |
| 23 | Hinge Cover (FC) (White) |
| 24 | MAY 549193 |
| 25 | MAY 489084 |
| 26 | MAY 2155311 |
| 27 | MAY 489483 |
| 28 | Housing, Water Filter |
| 29 | MAY 4396841 |
| 30 | MAY 2260502T |
| 30 | MAY 2260502W |
| 30 | MAY 2260502B |
| 30 | CAP, WATER FILTER (GREY) |
| 31 | MAY 489500 |
| 32 | Block, Housing Support |
| 33 | MAY 2260503T |
| 33 | MAY 2260503W |
| 33 | BUTTON, WATER FILTER (GREY) |
| 33 | Button, Filter (Black) |
| 34 | Tube, Filter Outlet |
| 35 | MAY 2319867 |
| 36 | HINGE TOP, FC |
| 37 | CLOSER, FREEZER DOOR |
