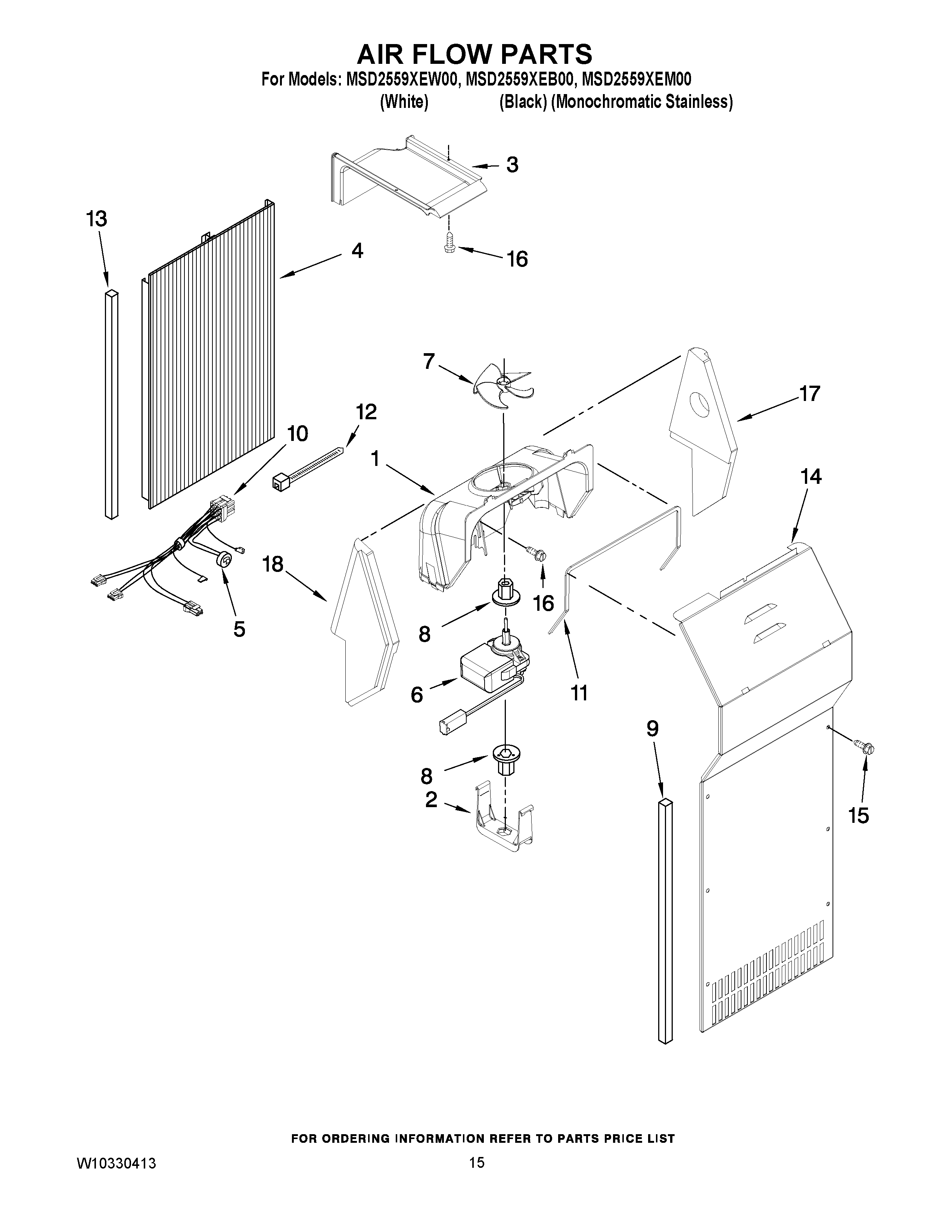

MSD2559XEB00 09 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY W10188846
3	MAY W10272514
4	MAY 2198580
5	MAY W10225581
6	MAY W10236142
7	Blade, Fan (Evaporator)
8	GROMMET, MOTOR
9	Gasket
10	MAY W10297480
11	Gasket, Fan Scroll
12	Wire Tie
13	MAY 2203876
14	Cover, Evaporator (Includes 9)
15	SCREW
16	SCREW, 8 X 1/2
17	SUPPORT, FAN SCROLL (RIGHT HAND)
18	SUPPORT, FAN SCROLL (LEFT HAND)
