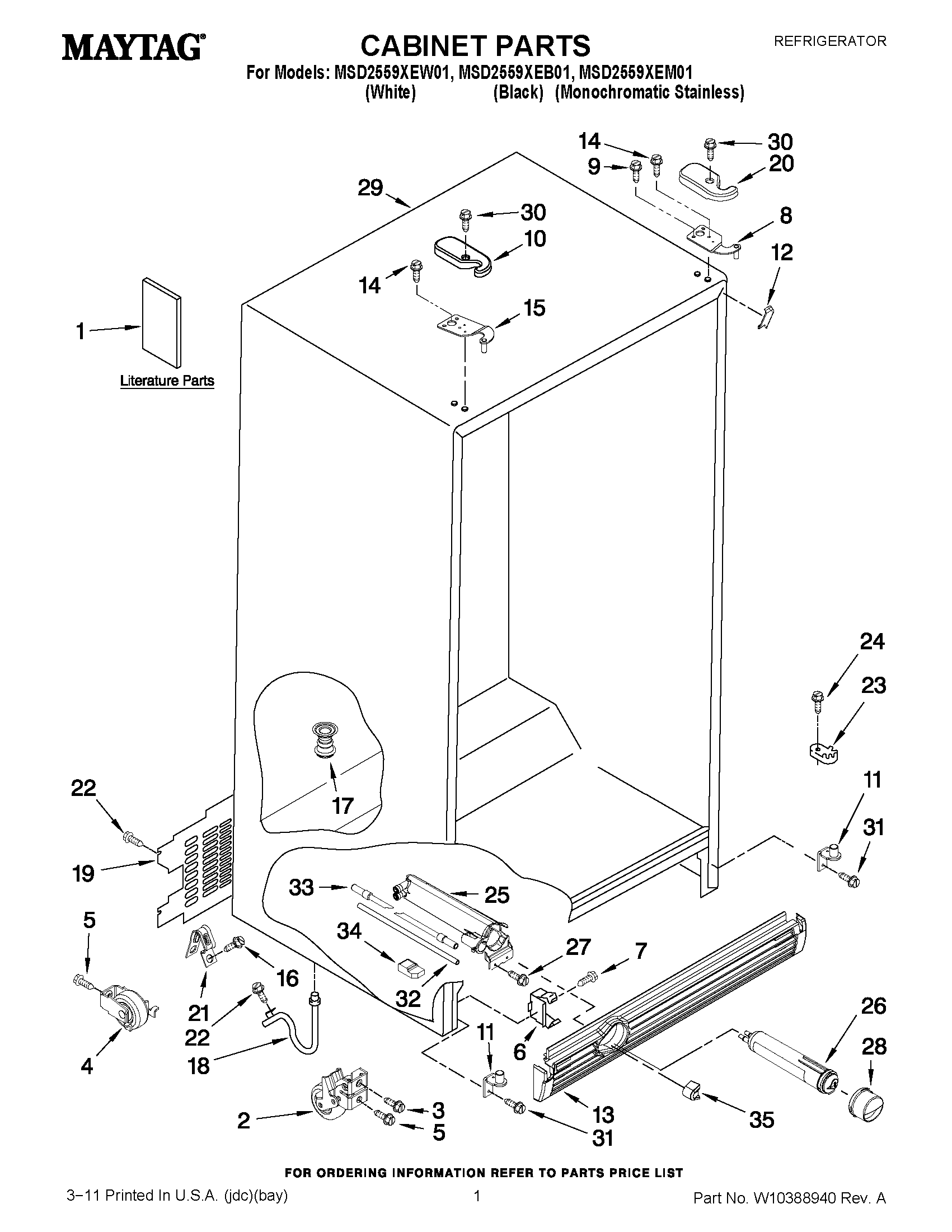

MSD2559XEB01 01 – CABINET PARTSadmin2025-04-26T13:09:51+00:00MSD2559XEB01 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10324264 |
| 1 | INSTR SHEET, DOOR REMOVAL |
| 1 | MAY W10289680 |
| 1 | MAY W10320922 |
| 1 | MAY 2220407 |
| 2 | MAY 2174748 |
| 3 | MAY 3400517 |
| 4 | MAY W10250570 |
| 5 | MAY W10146358 |
| 6 | MAY 2155013 |
| 7 | SCREW |
| 8 | HINGE TOP RC |
| 9 | MAY W10142288 |
| 10 | HINGE COVER, FC (BLACK) |
| 10 | HINGE COVER, FC (WHITE) |
| 10 | HINGE COVER, FC (APOLLO GRAY) |
| 11 | MAY W10140558 |
| 12 | MAY 2304848 |
| 12 | MAY 2304846 |
| 12 | FILLER, WRAPPER (GREY) |
| 13 | MAY W10184888 |
| 13 | MAY W10184886 |
| 13 | GRILLE (MIDNIGHT GREY) |
| 14 | MAY 489497 |
| 15 | HINGE TOP, FC |
| 16 | MAY W10001250 |
| 17 | MAY 2304888 |
| 18 | MAY W10153550 |
| 19 | MAY 2188735 |
| 20 | HINGE COVER, RC (WHITE) |
| 20 | HINGE COVER, RC (BLACK) |
| 20 | HINGE COVER, RC (APOLLO GRAY) |
| 21 | MAY 549193 |
| 22 | MAY W10141645 |
| 23 | MAY 2155311 |
| 24 | MAY 489483 |
| 25 | MAY 2260507 |
| 26 | MAY 4396841 |
| 27 | MAY 489500 |
| 28 | MAY 2260502B |
| 28 | MAY 2260502W |
| 28 | CAP, WATER FILTER (GREY) |
| 29 | LINER (NOT A SERVICEABLE PART) |
| 30 | MAY 8281227 |
| 31 | SCREW |
| 32 | Tube, Filter Outlet |
| 33 | MAY W10281289 |
| 34 | Block, Housing Support |
| 35 | Button, Filter (Black) |
| 35 | MAY 2260503W |
| 35 | BUTTON, WATER FILTER (GREY) |
