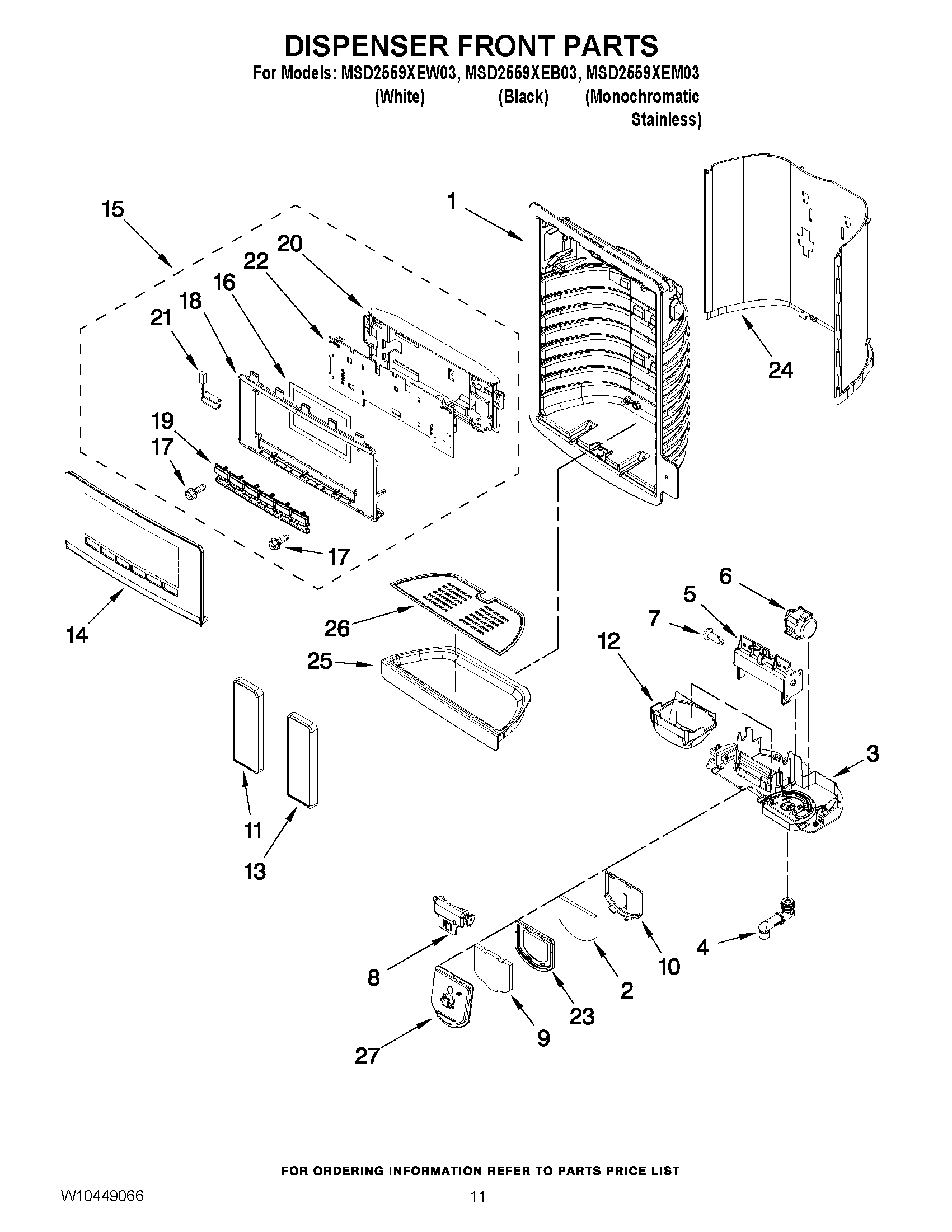

MSD2559XEB03 07 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10331454
3	MAY W10286902
4	SPIGOT-BODY ASSY
5	MAY W10174827
6	MOTOR, DISPENSER
7	CLIP, MOTOR COUPLING
8	MAY W10346124
9	MAY W10331456
10	DOOR, ICE
11	MAY W10334789
11	MAY W10334792
12	GUIDE, ICE
13	MAY W10334816
13	MAY W10334813
14	MAY W10286927
14	MAY W10286928
15	MAY W10286924
15	MAY W10286929
16	MAY W10254293
17	Screw (2)
18	MAY W10286907
19	TREE BUTTON (CHROME (FOR WHITE MODEL))
19	MAY W10286926
20	MAY W10254277
21	MAY W10238083
22	MAY W10291367
23	MAY W10317282
24	MAY W10286898
24	MAY W10286899
24	MAY W10286900
25	MAY W10286894
25	MAY W10286896
25	MAY W10286895
26	MAY W10286920
26	MAY W10286921
26	MAY W10286922
27	ICE DOOR, CLIP SIDE
