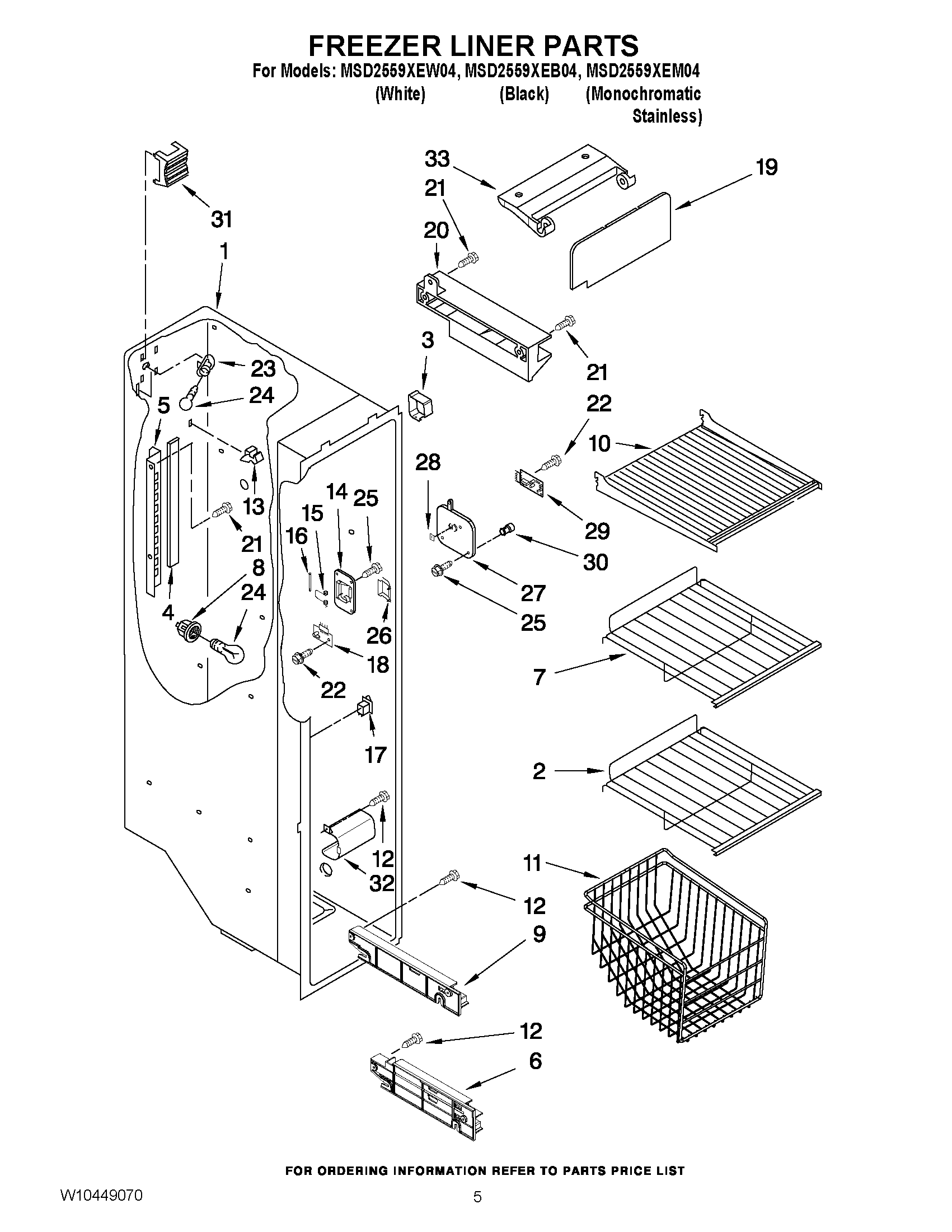

MSD2559XEB04 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	SHELF, SLIDE OUT LOWER
3	MAY 2303234
4	MAY 2198697
5	LADDER (RIGHT HAND)
5	LADDER (LEFT HAND)
6	MAY 2301291
6	MAY 2301292
7	MAY 2211746
8	SOCKET, LIGHT
9	MAY 2301289
9	MAY 2301290
10	MAY 2205837K
11	MAY 2182971
12	MAY W10004810
13	MAY 2315163
14	MAY 2198587
15	SPRING, DOOR
16	PIN, DOOR
17	Switch, Rocker Arm
18	MAY W10193840
19	MAY 2255720
20	Slide, Ice Maker Mounting (Right Side)
21	SCREW, 8 X 1/2
22	Screw (2)
23	Socket, Light
24	MAY W10311505
25	SCREW (WHITE)
26	MAY 2198633
27	MAY W10173569
28	MAY 2315398
29	MAY W10279461
30	MAY 2198643
31	MAY 2198589
32	MAY 2212340
33	Bracket, Ice Maker Cover
