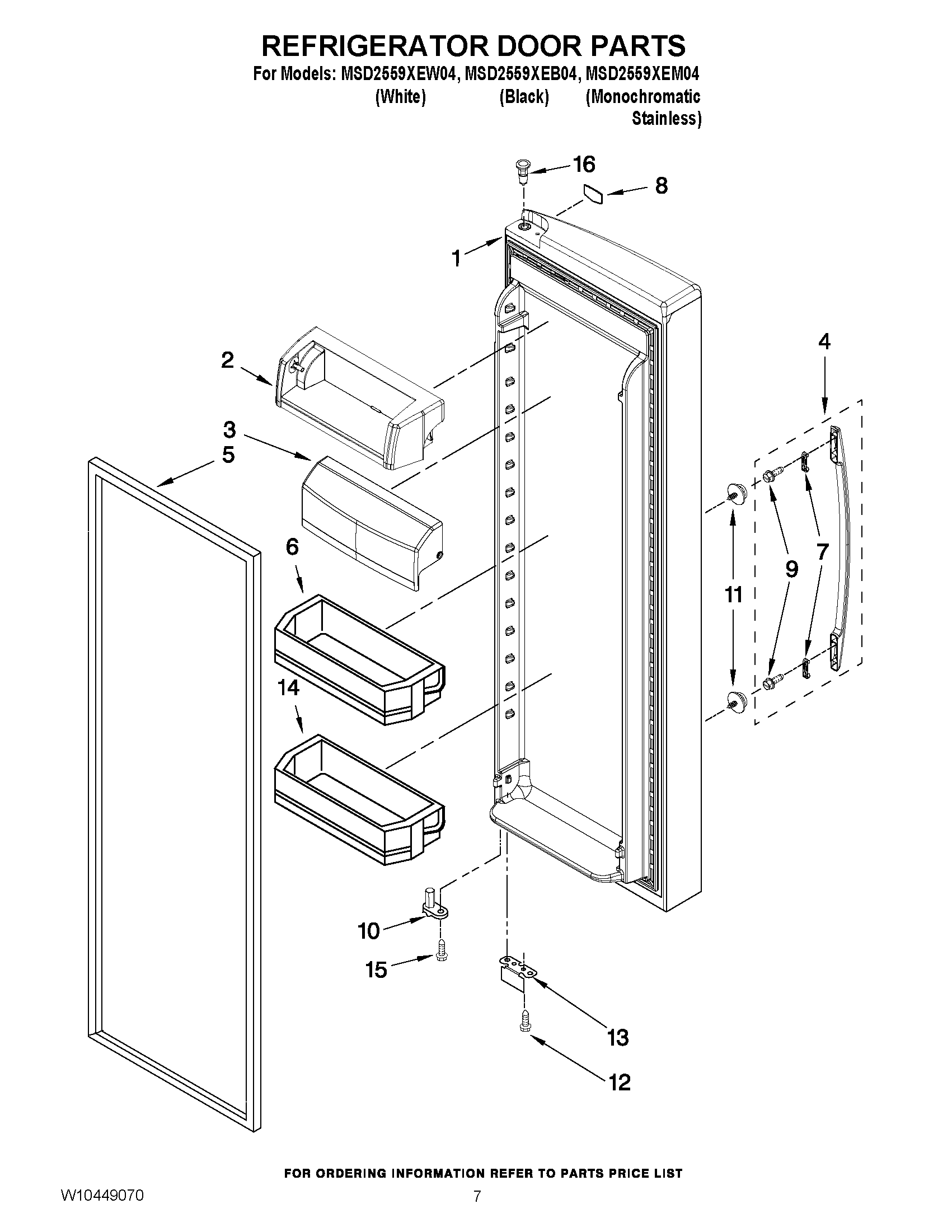

MSD2559XEB04 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10318389
1	MAY W10317497
1	REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
2	DOOR, COMPARTMENT
3	MAY 2255421
4	HANDLE (INCLUDES ITEMS 7 & 9) (BLACK)
4	HANDLE (INCLUDES ITEMS 7 & 9) (WHITE)
4	HANDLE (STAINLESS STEEL)
5	GASKET, DOOR (GREY)
5	Door Gasket, Magnetic (Repair) (Mist Beige)
5	Door Gasket, Magnetic (Repair) (Black)
6	MAY W10321303
7	MAY 2255411
8	Nameplate
9	SCREW 10-16 X 1/2 (FOR STAINLESS MODELS)
9	SCREW 10-16 X 1/2 (FOR WHITE & BLACK MODELS)
10	DOOR CLOSER
11	MAY W10288153
12	MAY 489420
13	BRACKET, DOOR STOP (CHROME (FOR WHITE MODEL))
13	BRACKET, DOOR STOP (BLACK (FOR BLACK & STAINLESS MODELS))
14	Shelf Bin
15	MAY 3400012
16	THIMBLE
