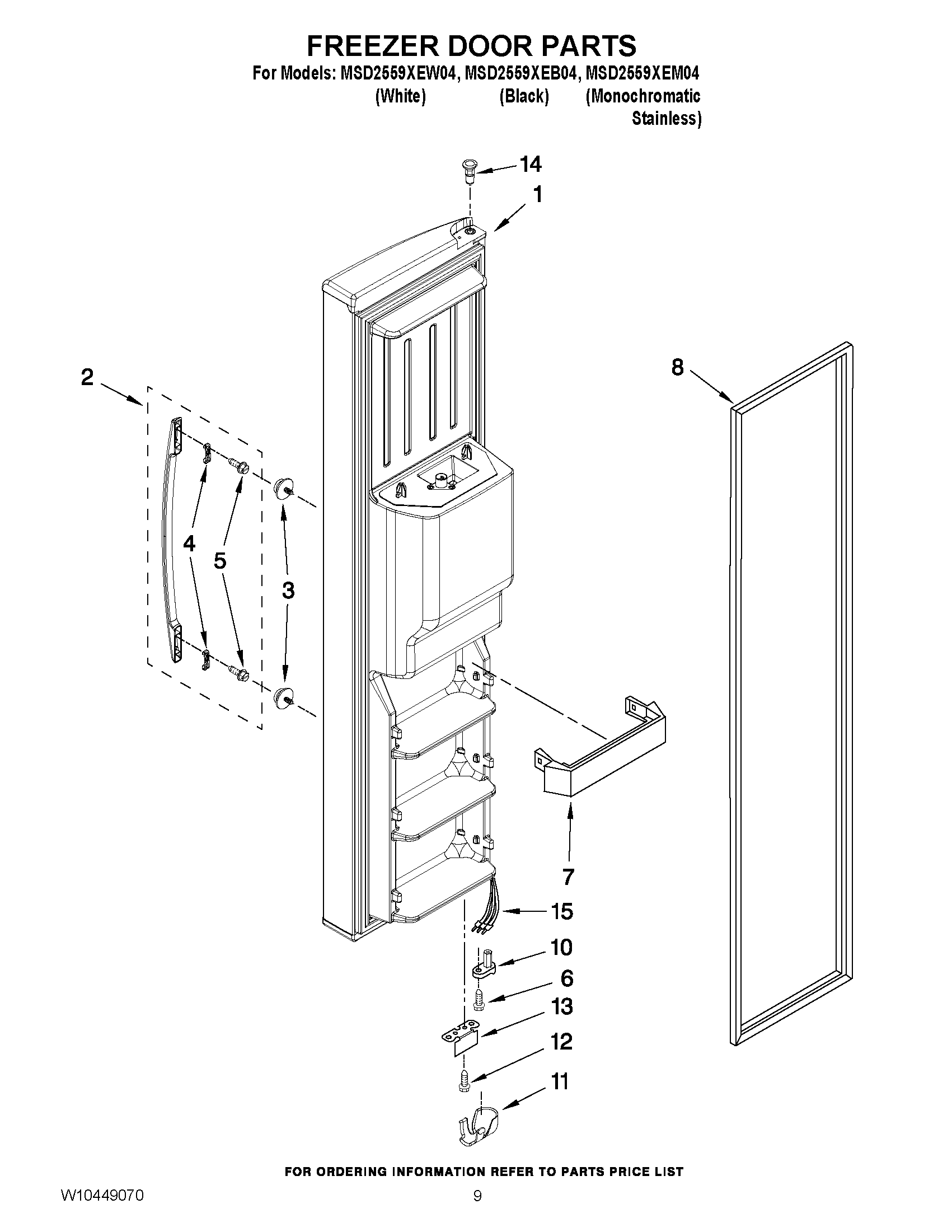

MSD2559XEB04 06 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10317487
1	MAY W10318317
1	MAY W10294123
2	HANDLE (STAINLESS STEEL)
2	HANDLE (INCLUDES ITEMS 7 & 9) (BLACK)
2	HANDLE (INCLUDES ITEMS 7 & 9) (WHITE)
3	MAY W10288153
4	MAY 2255411
5	SCREW 10-16 X 1/2 (FOR WHITE & BLACK MODELS)
5	SCREW 10-16 X 1/2 (FOR STAINLESS MODELS)
6	MAY 3400012
7	Trim, Door (4)
8	MAY 2326339
8	Door Gasket, Magnetic (Repair) (Mist Beige)
8	Door Gasket, Magnetic (Repair) (Black)
10	MAY 2323535
11	THIMBLE COVER
12	MAY 489420
13	BRACKET, DOOR STOP (CHROME (FOR WHITE MODEL))
13	BRACKET, DOOR STOP (BLACK (FOR BLACK & STAINLESS MODELS))
14	THIMBLE
15	MAY W10295774
