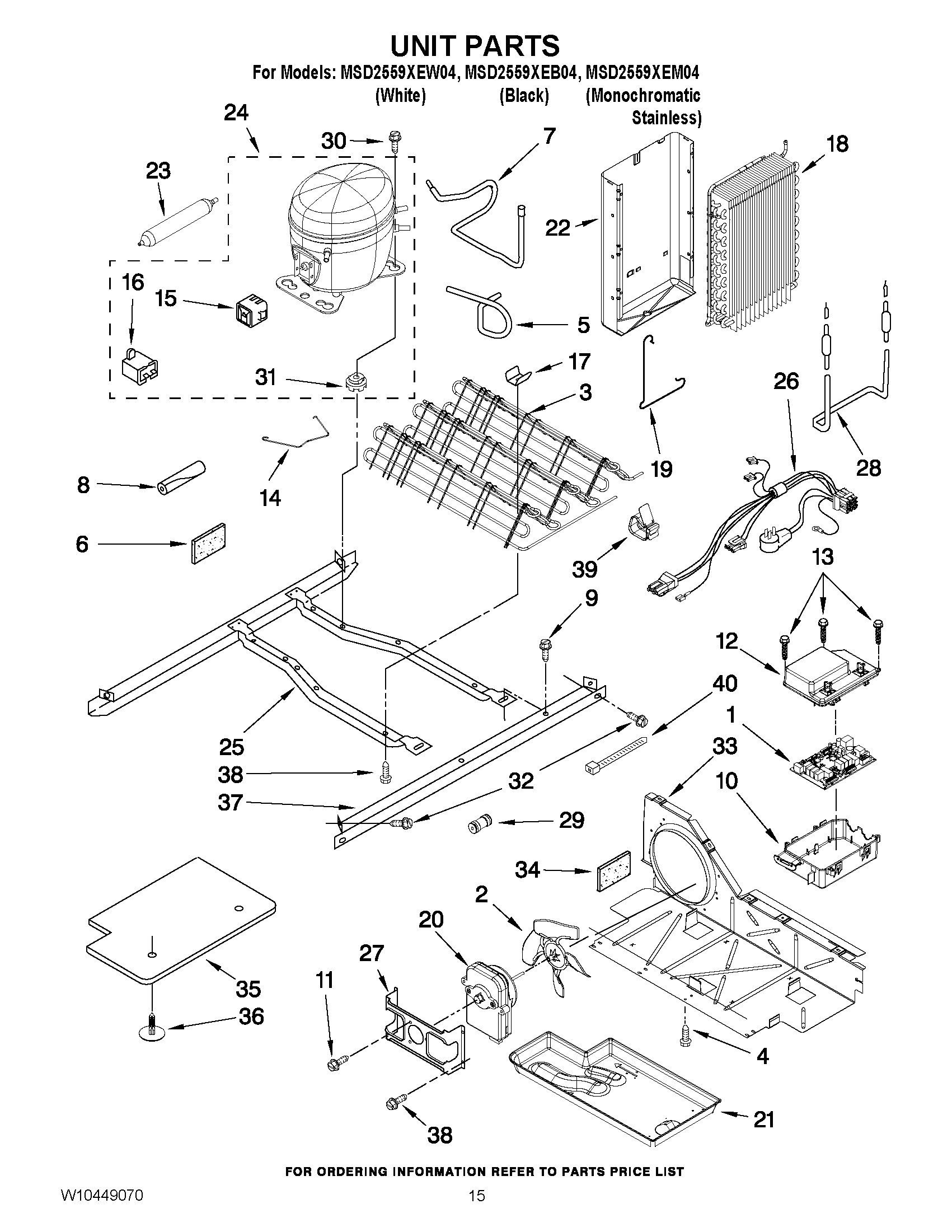

MSD2559XEB04 10 – UNIT PARTSadmin2025-04-26T13:10:26+00:00MSD2559XEB04 10 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY W10268634 |
| 2 | Fan, Blade |
| 3 | MAY 2324712 |
| 4 | MAY W10001250 |
| 5 | PROCESS TUBE |
| 6 | SEALER, INSULATION |
| 7 | MAY 2205765 |
| 8 | Sleeve, Pressure Switch Hose |
| 9 | MAY W10146358 |
| 10 | BOX, CONTROL |
| 11 | MAY 8533993 |
| 12 | MAY W10334855 |
| 13 | MAY 8533859 |
| 14 | Clip, Retaining |
| 15 | Start-Device, Combination (Start Relay and Overload) (Production) |
| 16 | Capacitator (Production) |
| 17 | MAY 2216914 |
| 18 | Evaporator |
| 19 | Clip |
| 20 | MOTOR, CONDENSOR |
| 21 | MAY 1105523 |
| 22 | Heat Shield (Includes 26) |
| 23 | MAY W10423407 |
| 24 | COMPRESSOR (ALSO ORDER 876765 TUBE KIT) |
| 25 | MAY 2304904 |
| 26 | MAY W10334858 |
| 27 | MAY 2181929 |
| 28 | MAY 2323198 |
| 29 | CONNECTOR, WATER TUBE |
| 30 | MAY 489373 |
| 31 | Grommet (Production) |
| 32 | MAY 489340 |
| 33 | MAY W10411518 |
| 34 | FOAM PAD |
| 35 | Unit Cover, Bottom |
| 36 | MAY 489396 |
| 37 | MAY 2305374 |
| 38 | MAY 8281232 |
| 39 | MAY 2326941 |
| 40 | Wire Tie |
