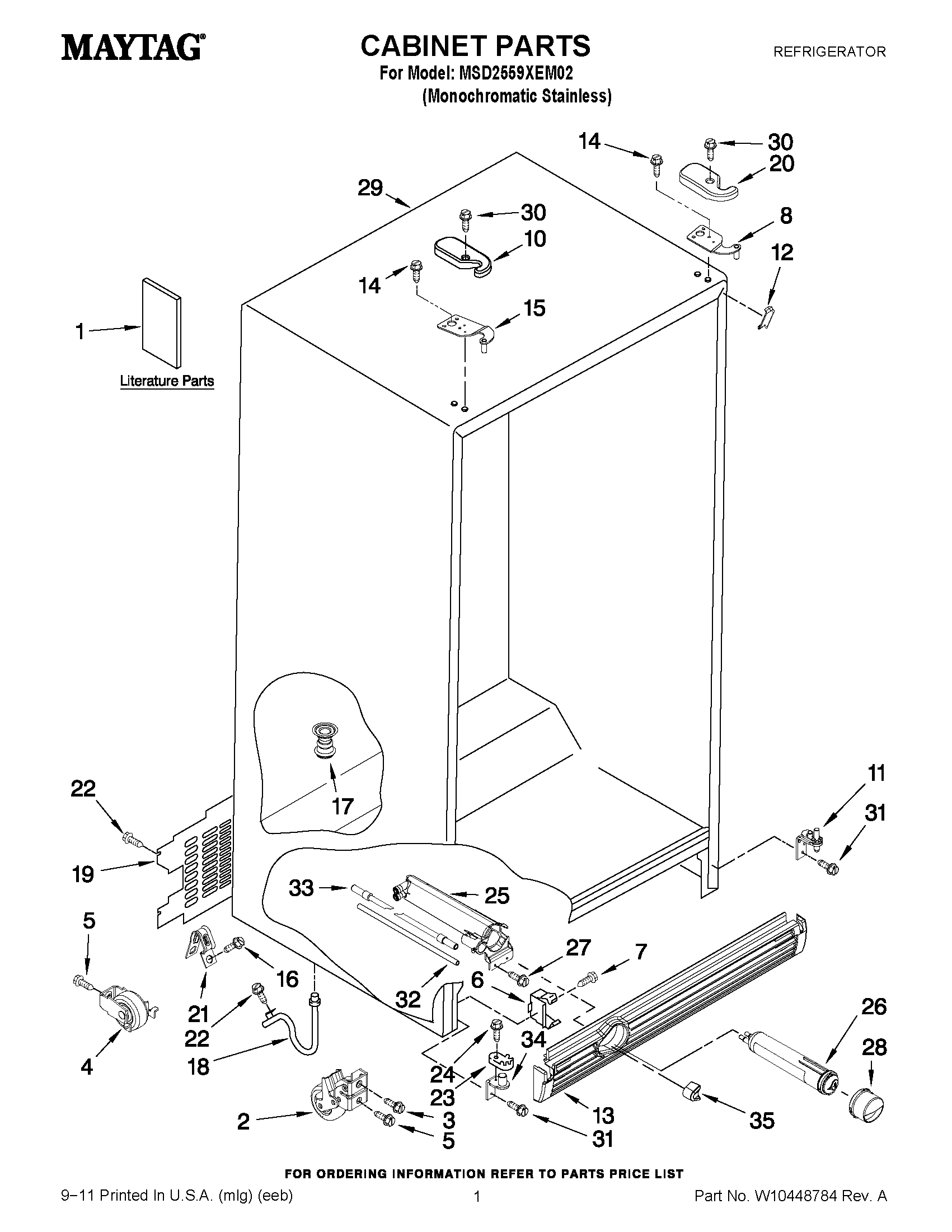

MSD2559XEM02 01 – CABINET PARTS

Products

Position	Product
1	MAY W10324264
1	MAY W10320922
1	INSTR SHEET, DOOR REMOVAL
1	MAY W10289680
1	MAY 2220407
2	MAY 2174748
3	MAY 3400517
4	MAY W10250570
5	MAY W10146358
6	MAY 2155013
7	SCREW
8	HINGE TOP RC
10	HINGE COVER, FC (APOLLO GRAY)
11	HINGE ASSEMBLY
12	FILLER, WRAPPER (GREY)
13	GRILLE (MIDNIGHT GREY)
14	MAY 489497
15	HINGE TOP, FC
16	MAY W10001250
17	MAY 2304888
18	MAY W10153550
19	MAY 2188735
20	HINGE COVER, RC (APOLLO GRAY)
21	MAY 549193
22	MAY W10141645
23	CLOSER, FREEZER DOOR
24	MAY 489483
25	MAY 2260507
26	MAY 4396841
27	MAY 489500
28	CAP, WATER FILTER (GREY)
29	LINER (NOT A SERVICEABLE PART)
30	MAY 8281227
31	SCREW
32	MAY W10330344
33	MAY W10281289
34	Hinge Bottom (FC)
35	BUTTON, WATER FILTER (GREY)
