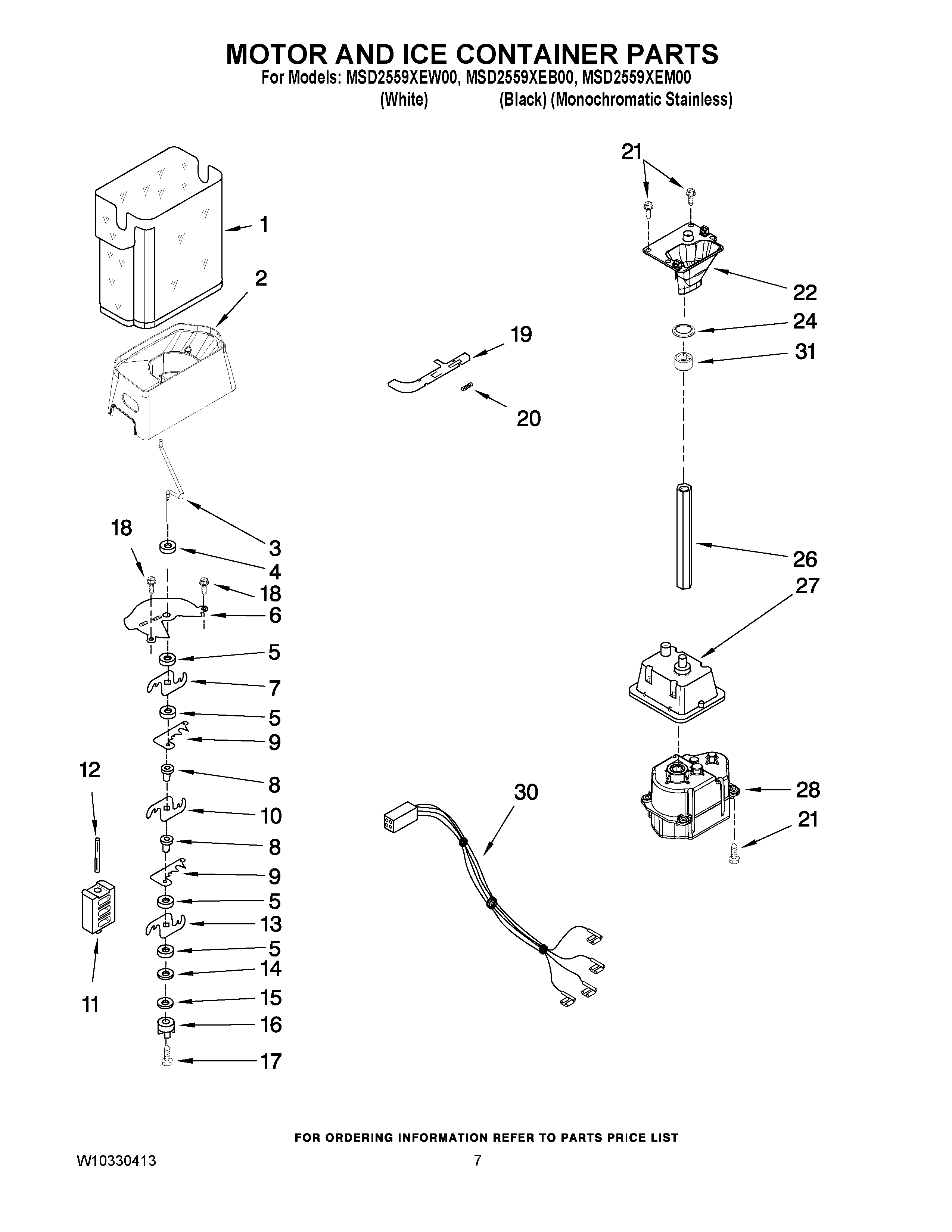

MSD2559XEW00 05 – MOTOR AND ICE CONTAINER PARTS
Written by
in
MSD2559XEW00 05 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
MAY W10286861
2
MAY W10286870
3
MAY W10166869
4
Washer, Auger
5
MAY W10189658
6
MAY 2317248
7
MAY W10278731
8
MAY W10189661
9
MAY 2198601
10
MAY W10278732
11
BLADE, BLOCK
12
ROLL PIN
13
MAY W10278733
14
MAY 489235
15
MAY 2198661
16
Coupling, Top
17
MAY 8281164
18
SCREW (STAINLESS)
19
MAY W10166863
20
MAY 2198608
21
Screw
22
MAY W10286869
24
MAY 2198628
26
MAY W10317613
27
MAY W10258546
28
MAY W10215646
30
MAY W10295559
31
MAY W10317615
100
MAY W10286864
←
