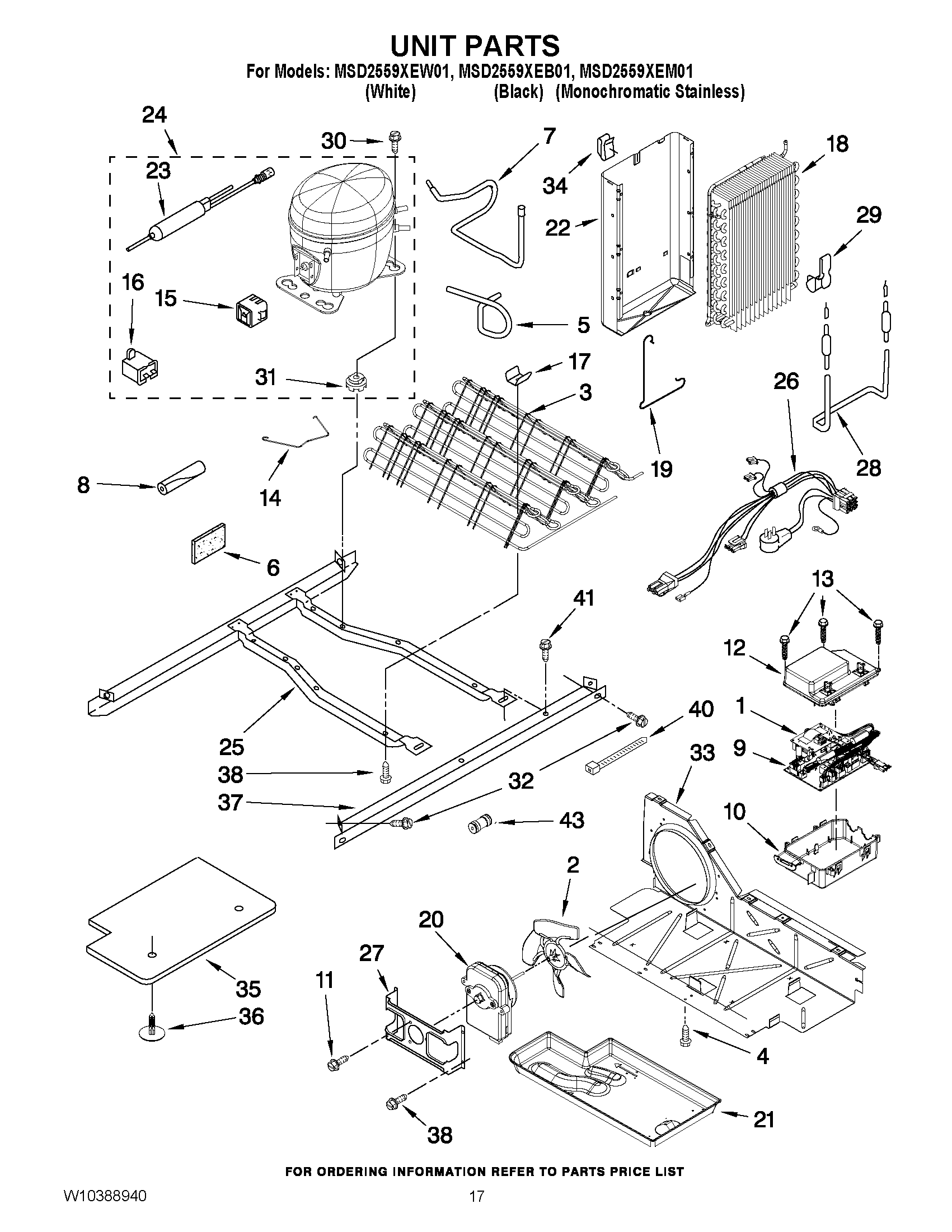

MSD2559XEW01 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	MAY W10318714
2	Fan, Blade
3	MAY 2324712
4	MAY W10001250
5	PROCESS TUBE
6	SEALER, INSULATION
7	MAY 2205765
8	Sleeve, Pressure Switch Hose
9	CONTROL, ELECTRONIC (POWER SUPPLY)
10	BOX, CONTROL
11	MAY 8533993
12	CONTROL, COVER
13	MAY 8533859
14	Clip, Retaining
15	Start-Device, Combination (Start Relay and Overload) (Production)
16	Capacitator (Production)
17	MAY 2216914
18	Evaporator
19	Clip
20	MOTOR, CONDENSOR
21	MAY 1105523
22	Heat Shield (Includes 26)
23	Drier
24	COMPRESSOR (ALSO ORDER 876765 TUBE KIT)
25	MAY 2304904
26	UNIT, HARNESS
27	MAY 2181929
28	MAY 2323198
29	MAY 2304287
30	MAY 489373
31	Grommet (Production)
32	MAY 489340
33	MAY 2196202
34	MAY 2155547
35	Unit Cover, Bottom
36	MAY 489396
37	MAY 2305374
38	MAY 8281232
40	Wire Tie
41	MAY W10146358
43	CONNECTOR, WATER TUBE
