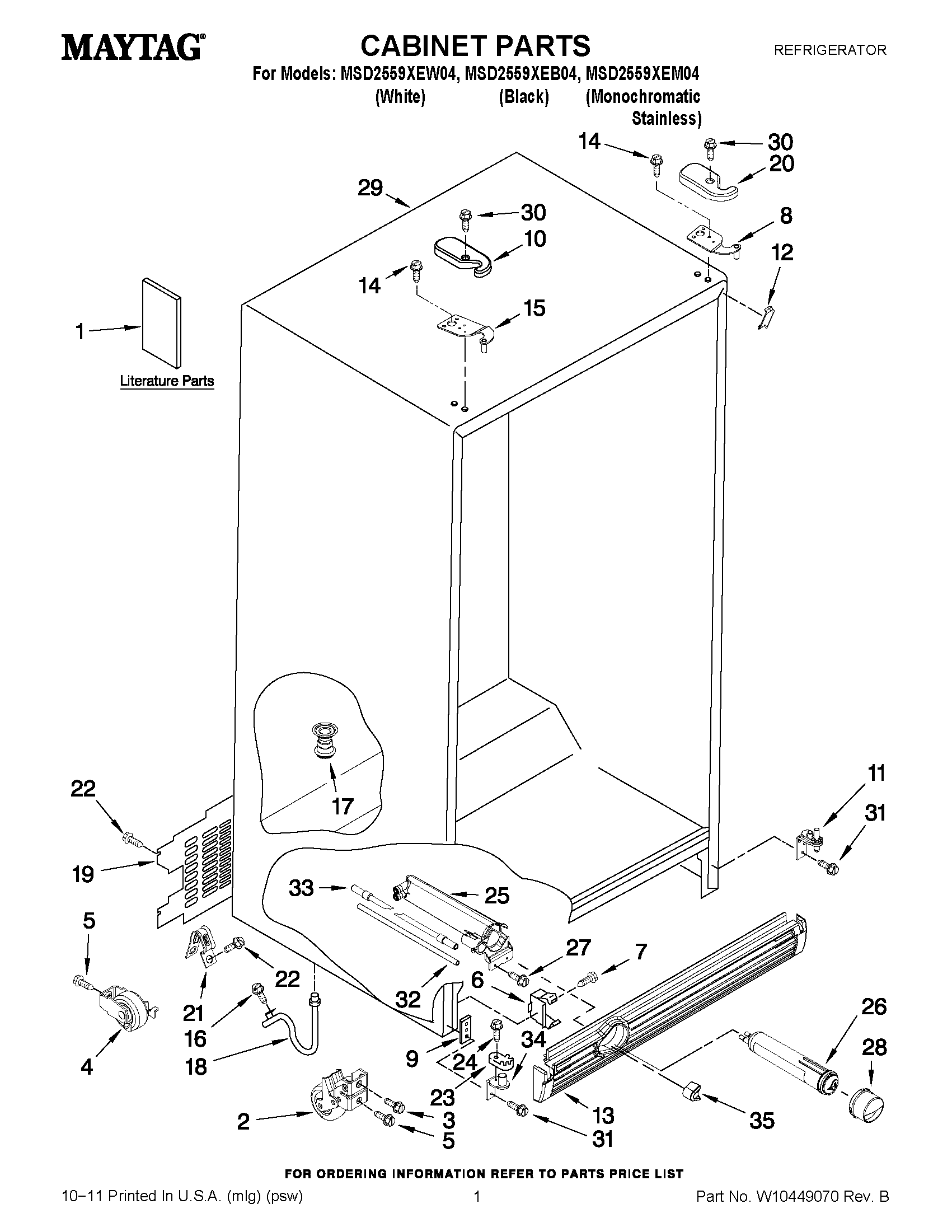

MSD2559XEW04 01 – CABINET PARTS
Written by
in
MSD2559XEW04 01 – CABINET PARTS
Products
Position
Product
1
MAY 2220407
1
INSTR SHEET, DOOR REMOVAL
1
MAY W10289680
1
MAY W10320922
1
MAY W10324237
2
MAY 2174748
3
MAY 3400517
4
MAY W10250570
5
MAY W10146358
6
MAY 2155013
7
SCREW
8
HINGE TOP, RC
9
SHIM, HINGE
10
HINGE COVER, FC (BLACK)
10
HINGE COVER, FC (WHITE)
10
HINGE COVER, FC (APOLLO GRAY)
11
HINGE ASSEMBLY
12
FILLER, WRAPPER (GREY)
12
MAY 2304848
12
MAY 2304846
13
GRILLE (MIDNIGHT GREY)
13
MAY W10184888
13
MAY W10184886
14
MAY 489497
15
HINGE, TOP FC
16
MAY W10001250
17
MAY 2304888
18
MAY W10153550
19
MAY 2188735
20
HINGE COVER, RC (WHITE)
20
HINGE COVER, RC (APOLLO GRAY)
20
HINGE COVER, RC (BLACK)
21
MAY 549193
22
MAY W10141645
23
CLOSER, FREEZER DOOR
24
MAY 489483
25
MAY 2260507
26
MAY 4396841
27
MAY 489500
28
MAY 2260502B
28
CAP, WATER FILTER (GREY)
28
MAY 2260502W
29
LINER (NOT A SERVICEABLE PART)
30
MAY 8281227
31
SCREW
32
MAY W10330344
33
MAY W10281289
34
Hinge Bottom (FC)
35
MAY 2260503W
35
Button, Filter (Black)
35
BUTTON, WATER FILTER (GREY)
←
