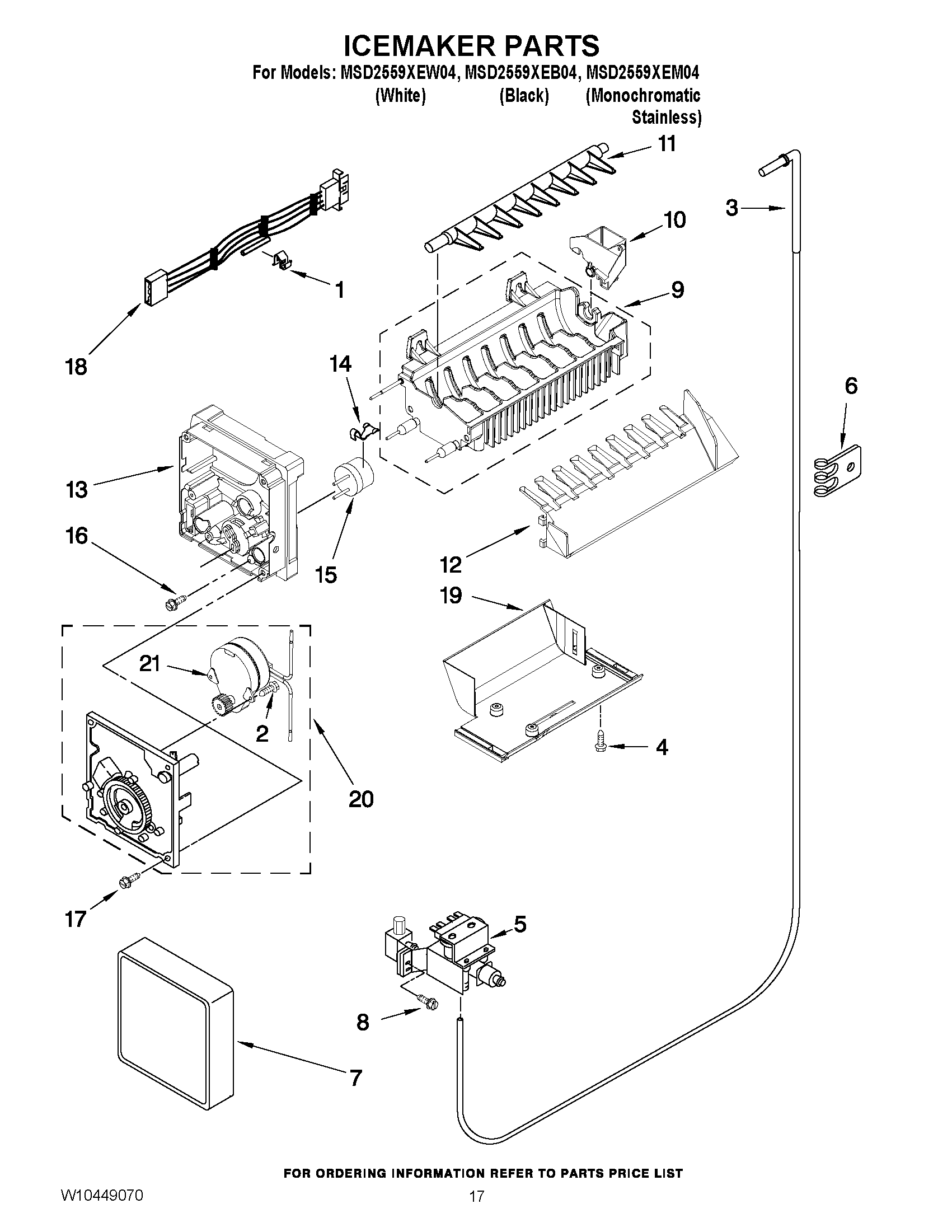

MSD2559XEW04 11 – ICEMAKER PARTS

Products

Position	Product
1	Clip
2	MAY 489136
3	MAY 2303216
4	SCREW, 8 X 1/2
5	MAY W10179146
6	CLIP, TUBE
7	COVER
8	SCREW 8-32 X 1/2
9	Mold & Heater Assembly (Also Order 542638)
10	MAY W10272168
11	MAY W10318914
12	MAY W10286877
13	MAY 2194712
14	MAY 2315522
15	THERMOSTAT (ALSO ORDER 542369 CEMENT)
16	MAY 8533917
17	Screw (3)
18	ASSEMBLY, ICE MAKER WIRE
19	Bracket, Ice Maker Mounting
20	Module Assembly (Includes Items 23 and 24)
21	MAY 626683
100	MAY W10272870
