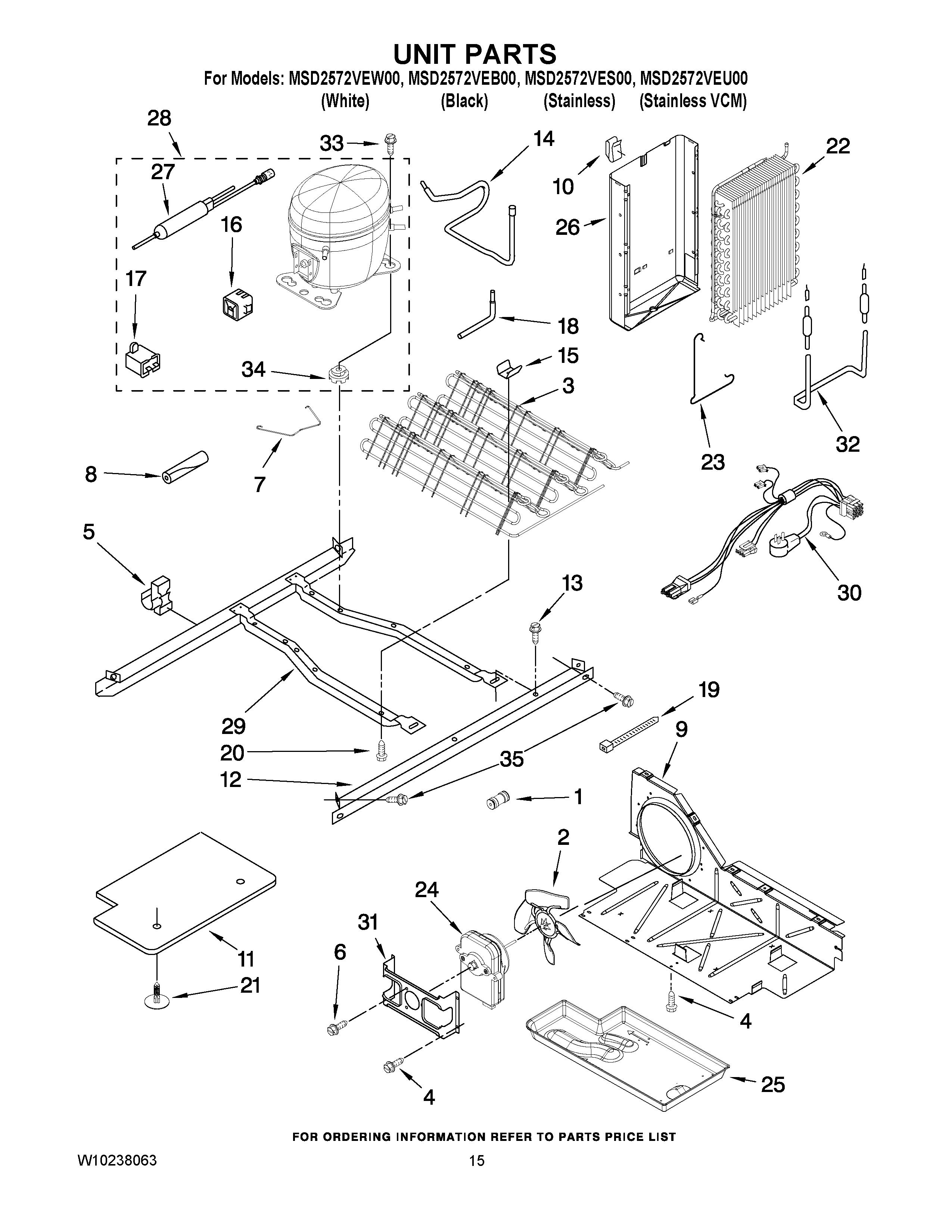

MSD2572VEB00 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	Connector, Water
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
7	Clip, Retaining
8	Sleeve, Pressure Switch Hose
9	MAY W10163483
10	MAY 2155547
11	MAY 2304891
12	MAY W10196323
13	MAY 489427
14	MAY 2205765
15	MAY 2311725
16	Start-Device, Combination (Start Relay and Overload) (Production)
16	Start-Device, Combination (Start Relay and Overload) (Service)
17	Capacitator (Production)
18	MAY 2325479
19	MAY 2263990
20	MAY 8281232
21	MAY 489396
22	Evaporator
23	Clip
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Heat Shield (Includes 26)
27	Drier
27	Drier
28	Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit)
29	Unit Mounting Frame
30	Unit, Harness
31	MAY 2181929
32	MAY 2188175
33	MAY 489373
34	Grommet (Production)
34	MAY 4387558
35	MAY 489340
