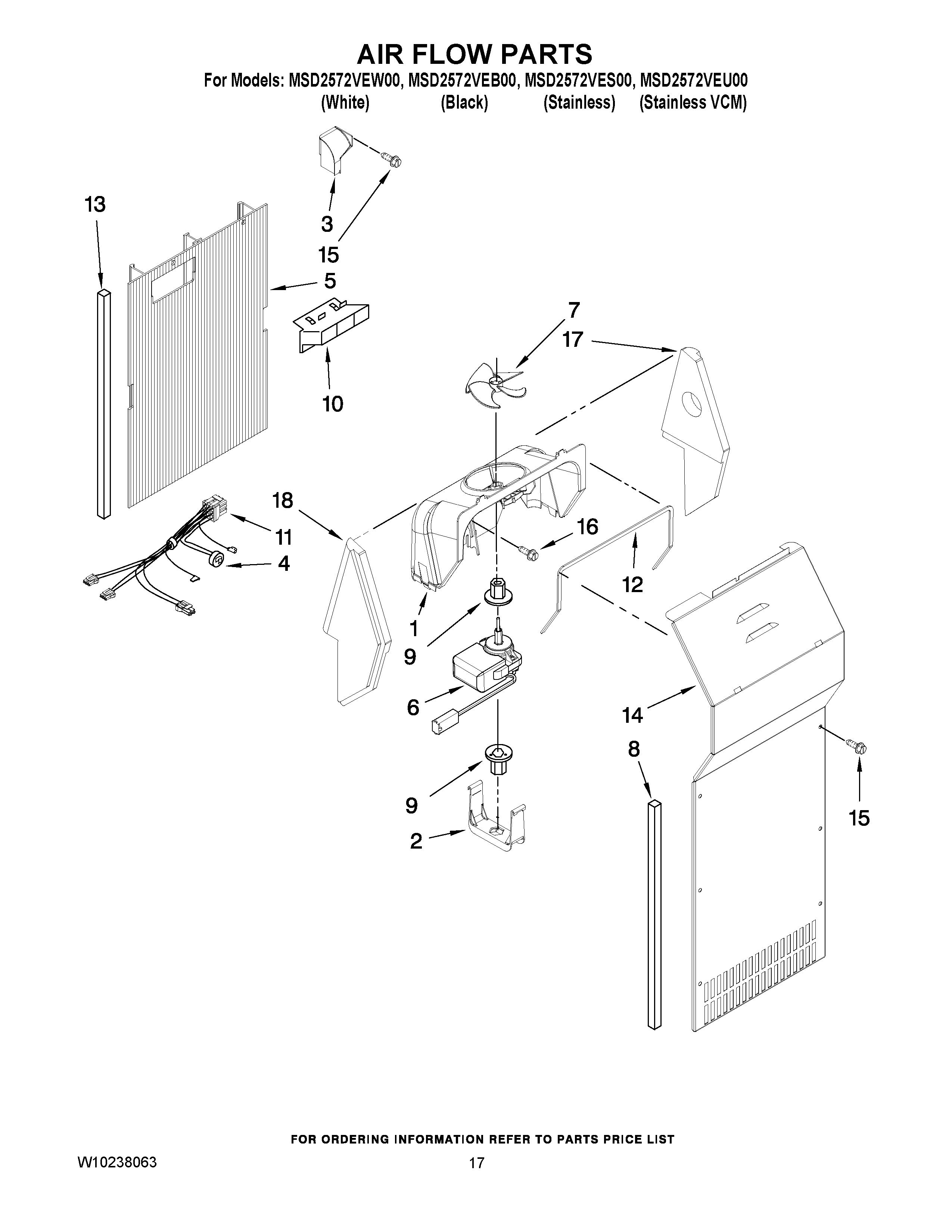

MSD2572VEB00 10 – AIR FLOW PARTS

MSD2572VEB00 10 – AIR FLOW PARTS

Written by

in

MSD2572VEB00 10 – AIR FLOW PARTS

Products

PositionProduct
1Fan Scroll
2MAY 2155590
3MAY 2161229
4MAY 2321799
5MAY W10138219
6MAY 2315549
7Blade, Fan (Evaporator)
8Gasket
9GROMMET, MOTOR
10MAY 2182146
11Harness, Fan Evaporator (Includes 4)
12Gasket, Fan Scroll
13MAY 2203876
14MAY W10196307
15MAY 8281159
16MAY 489478
17SUPPORT, FAN SCROLL (RIGHT HAND)
18SUPPORT, FAN SCROLL (LEFT HAND)
