MSD2572VEB01 11 – CONTROL PARTS – Aparts

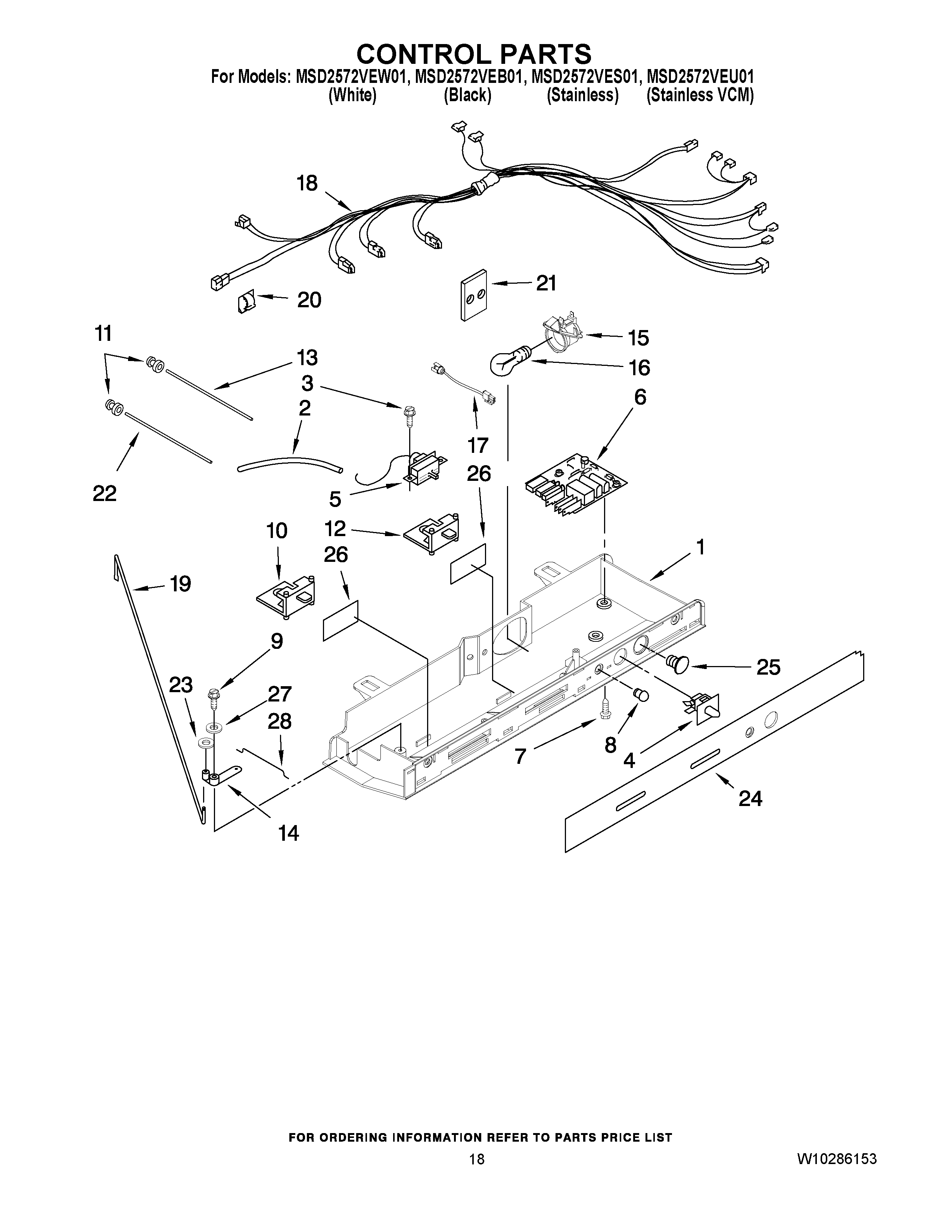

MSD2572VEB01 11 – CONTROL PARTS

Products

Position	Product
1	MAY 2311721
2	TUBE-BARRIER, THERMOSTAT
3	Screw (2)
4	MAY 2149705
5	Thermostat
6	Control Board Assembly
7	Screw
8	LENS, LIGHT
9	MAY 627068
10	MAY 2181741
11	Grommet, Light Bar (4)
12	MAY 2161466
13	MAY 2179920
14	Pivot Arm
15	Socket, Light
16	MAY 527949
17	LED LIGHT ASSEMBLY
18	MAY 2311632
19	Connecting Rod
20	MAY 1115374
21	MAY 2172931
22	LIGHT BAR FC
23	Fastner, Push-On
24	Escutcheon, Control Box
25	MAY 940014
26	MAY 2175513
27	Spring Washer
28	CONNECTING ROD, SHORT
