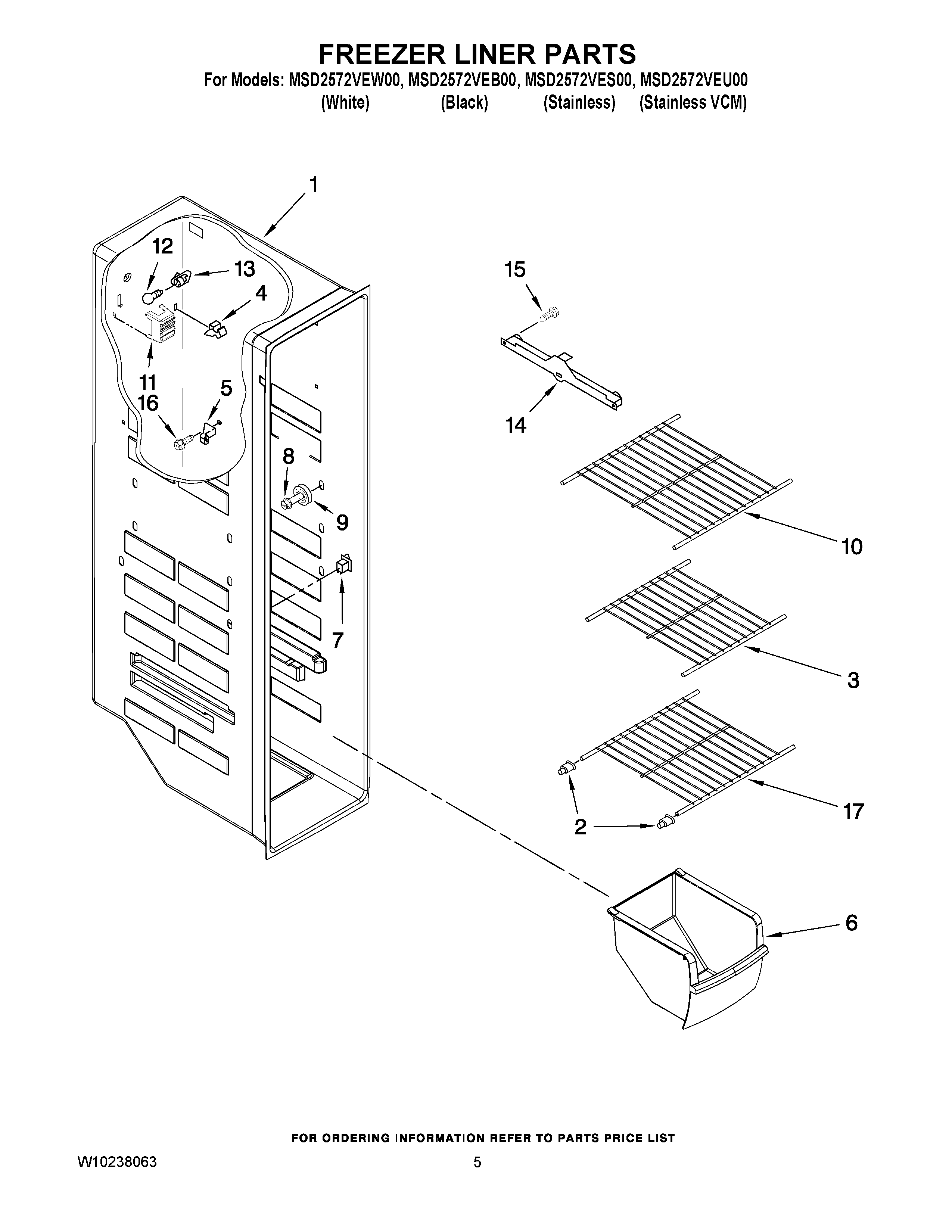

MSD2572VES00 04 – FREEZER LINER PARTS

MSD2572VES00 04 – FREEZER LINER PARTS

Written by

in

MSD2572VES00 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Cup, Shelf Mount
3MAY 2309597
4Clip, Air Duct (2)
5Support, Stud (4)
6Freezer Bin
7Switch, Rocker Arm
8MAY 8281158
9MAY 2196483
10Shelf, Wire
11MAY 2212340
12MAY 527949
13Socket, Light
14Slide, Container (Left Side)
14Slide, Container (Right Side)
15MAY 489100
16MAY 3400893
17SHELF WIRE
