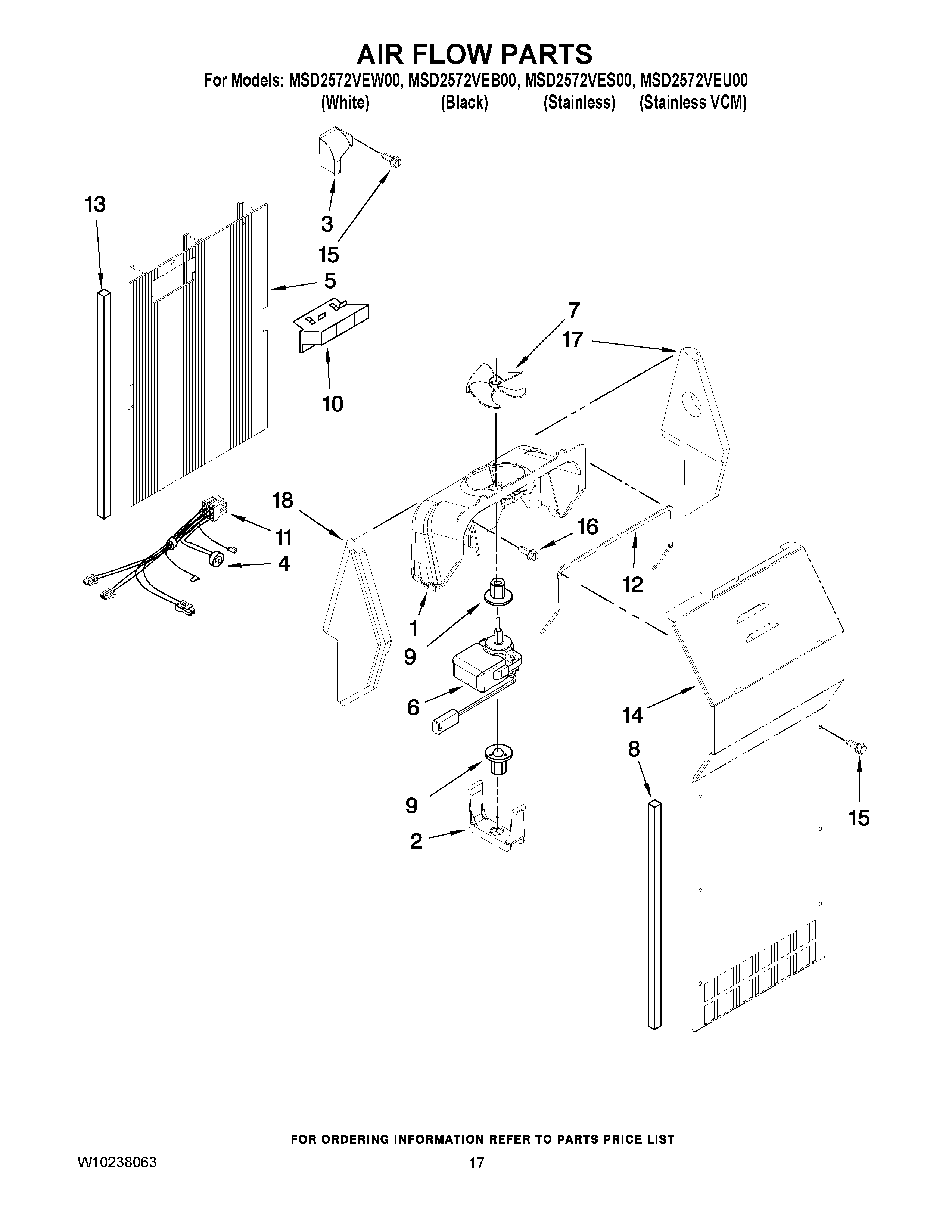

MSD2572VES00 10 – AIR FLOW PARTS

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 2161229
4	MAY 2321799
5	MAY W10138219
6	MAY 2315549
7	Blade, Fan (Evaporator)
8	Gasket
9	GROMMET, MOTOR
10	MAY 2182146
11	Harness, Fan Evaporator (Includes 4)
12	Gasket, Fan Scroll
13	MAY 2203876
14	MAY W10196307
15	MAY 8281159
16	MAY 489478
17	SUPPORT, FAN SCROLL (RIGHT HAND)
18	SUPPORT, FAN SCROLL (LEFT HAND)
