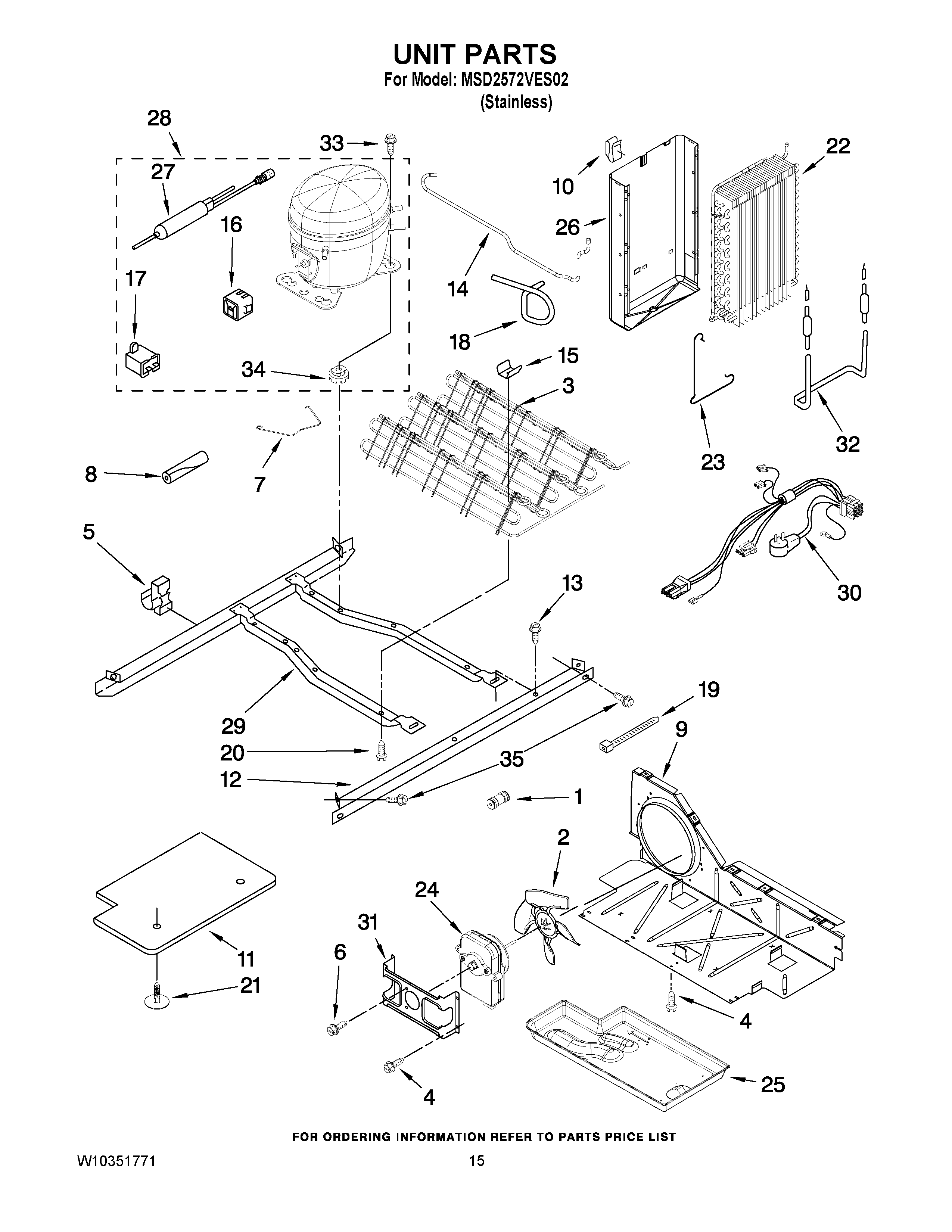

MSD2572VES02 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	VALVE, ACCESS (3/8``)
NI	MAY 876764
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	CONNECTOR, WATER
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
7	MAY W10174384
8	Sleeve, Pressure Switch Hose
9	MAY W10332806
10	MAY 2155547
11	MAY 2304891
12	MAY W10196323
13	MAY 489427
14	MAY W10210786
15	MAY 2311725
16	Start-Device, Combination (Start Relay and Overload) (Production)
16	Start-Device, Combination (Start Relay and Overload)
17	Capacitator (Production)
18	Process Tube
19	MAY 2263990
20	MAY 8281232
21	MAY 489396
22	Evaporator
23	Clip
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Heat Shield
27	Drier
27	Drier
28	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
29	Unit Mounting Frame
30	Unit, Harness
31	MAY 2181929
32	MAY 2188175
33	MAY 489473
34	Grommet (Production)
34	MAY 2183042
35	MAY 489340
