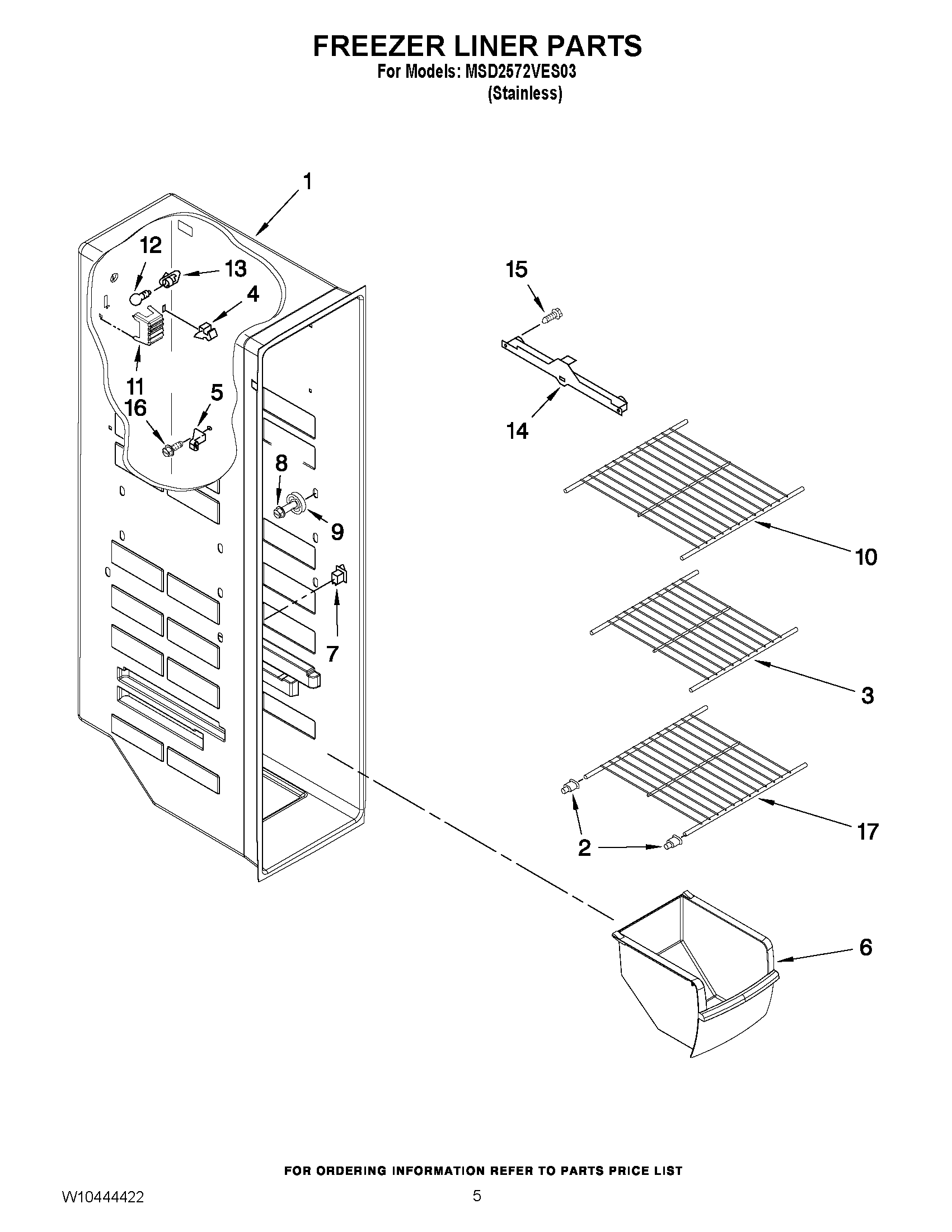

MSD2572VES03 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Cup, Shelf Mount
3	MAY W10318948
4	MAY 2315163
5	Support, Stud (4)
6	Freezer Bin
7	Switch, Rocker Arm
8	MAY W10191952
9	ASSEMBLY, SHELF STUD
10	MAY W10318947
11	MAY 2212340
12	MAY 527949
13	Socket, Light
14	Slide, Container (Left Side)
14	Slide, Container (Right Side)
15	MAY 489100
16	MAY 3400893
17	MAY W10318946
