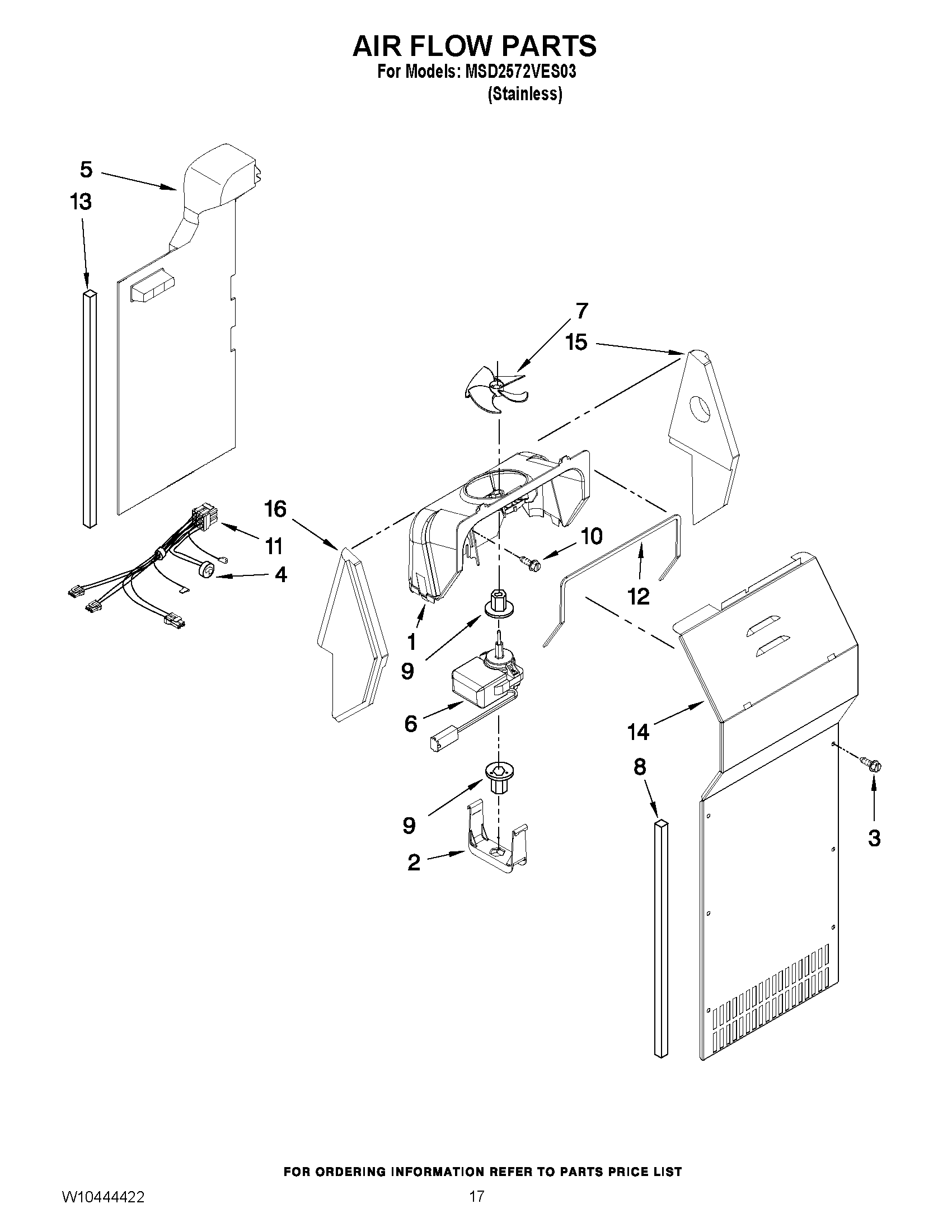

MSD2572VES03 10 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 8281159
4	MAY W10225581
5	AIR DUCT FREEZER
6	MAY W10131845
7	Blade, Fan (Evaporator)
8	Gasket
9	GROMMET, MOTOR
10	MAY 489478
11	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
12	Gasket, Fan Scroll
13	GASKET
14	MAY W10196307
15	SUPPORT, FAN SCROLL (RIGHT HAND)
16	SUPPORT, FAN SCROLL (LEFT HAND)
