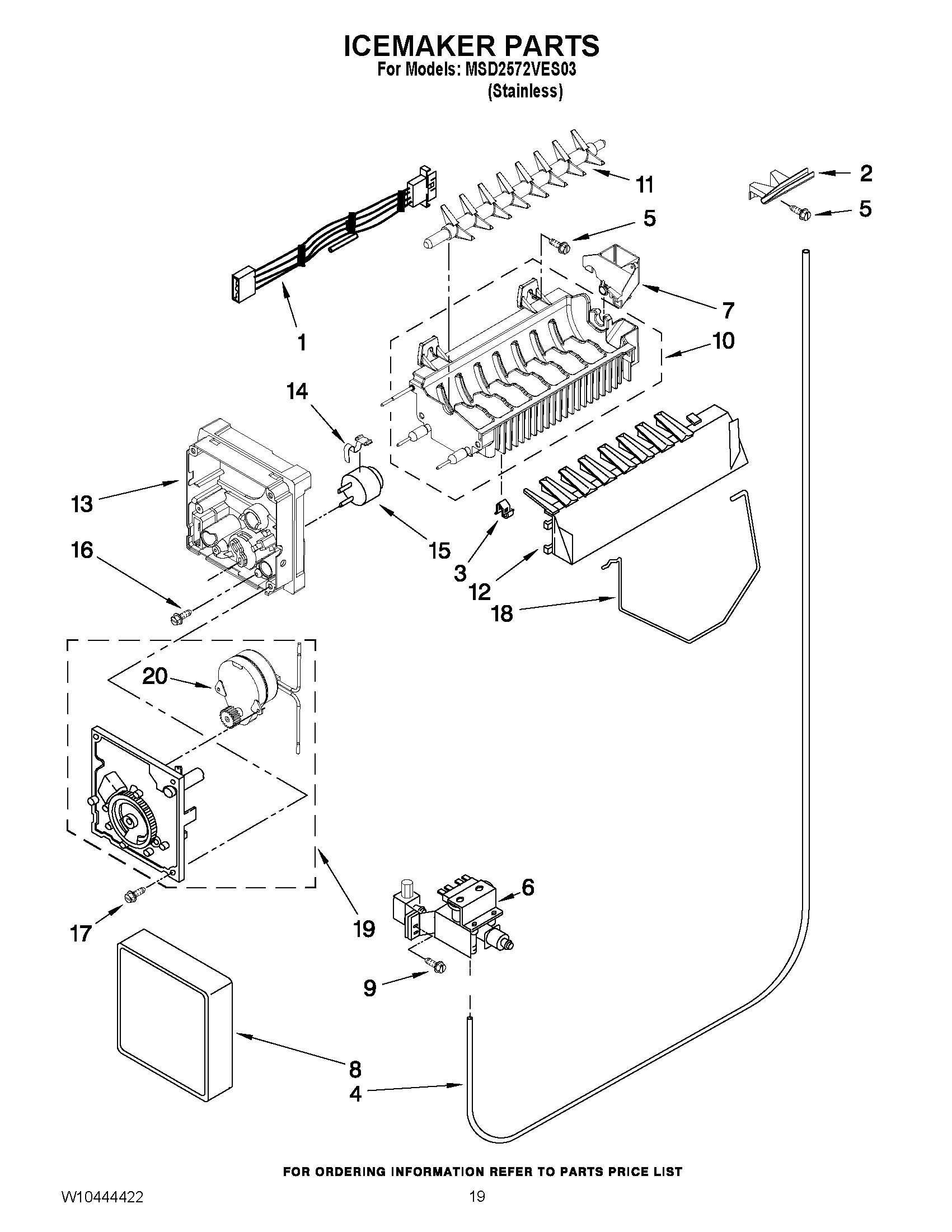

MSD2572VES03 12 – ICEMAKER PARTS

MSD2572VES03 12 – ICEMAKER PARTS

Written by

in

MSD2572VES03 12 – ICEMAKER PARTS

Products

PositionProduct
1ASSEMBLY, ICE MAKER WIRE
2MAY 2209774
3Clip
4MAY W10357076
5Screw
6MAY W10179146
7MAY W10122561
8COVER
9MAY 488649
10ASSEMBLY, MOLD AND HEATER
11MAY W10318914
12ICE STRIPPER
13Support & Motor Assembly
14MAY 2315522
15THERMOSTAT (ALSO ORDER 542369 CEMENT)
16MAY 8533917
17MAY 489478
18MAY 2304354
19Module Assembly (Includes Items 23 and 24)
20LINER (NOT A SERVICEABLE PART)
100MAY W10300022
