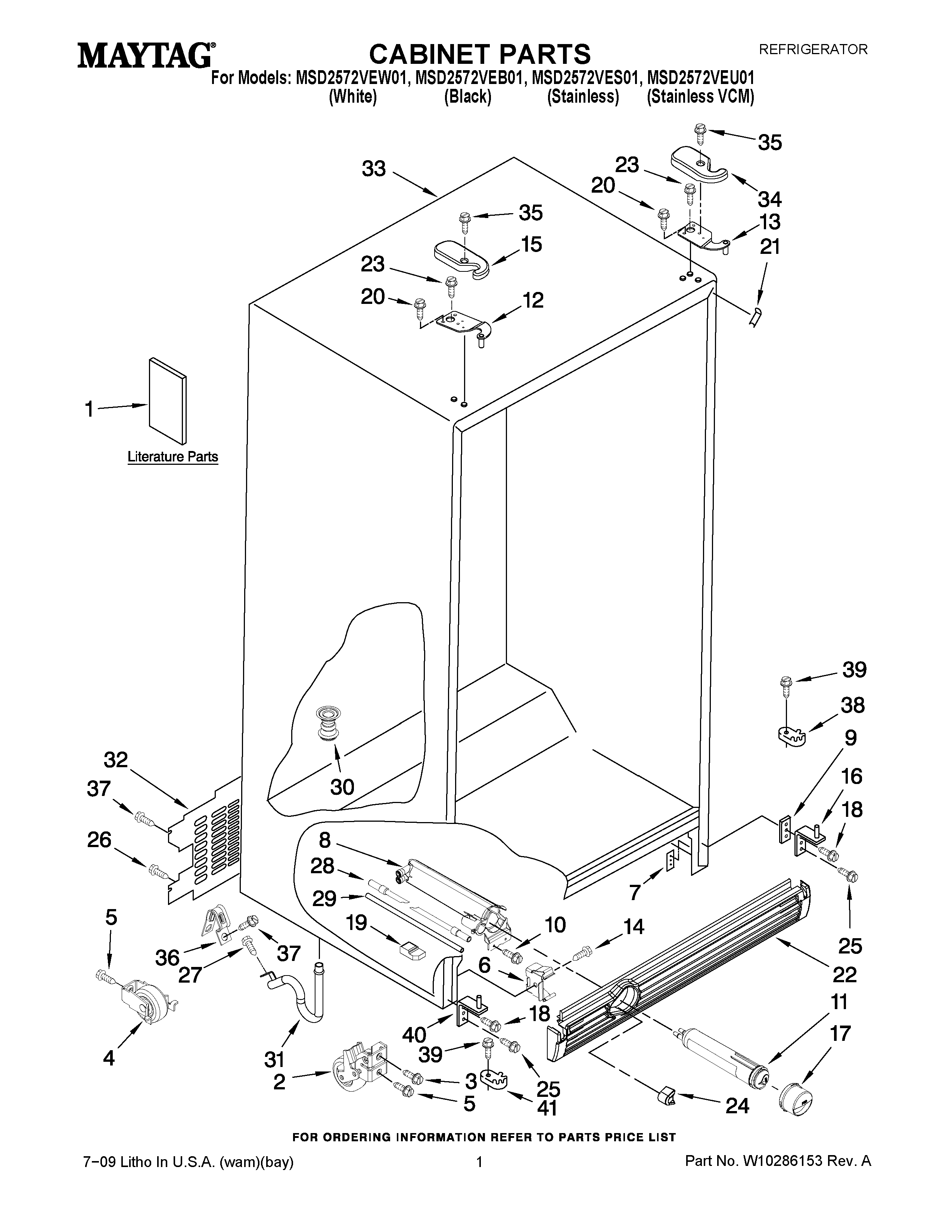

MSD2572VEU01 01 – CABINET PARTS

MSD2572VEU01 01 – CABINET PARTS

Products

PositionProduct
1MAY W10166406
1MAY W10214490
1MAY 2311539
1MAY 628370
1MAY W10275777
2MAY 2174748
3MAY 3400517
4MAY W10250570
5MAY 489427
6MAY 2155013
7MAY 2304249
8Housing, Water Filter
9Shim (2)
10MAY 489500
11MAY 4396841
12HINGE TOP, FC
13HINGE TOP RC
14MAY 488500
15Hinge Cover (RC) (White)
15Hinge Cover (RC) (Black)
16MAY 2217075
17MAY 2260502W
17MAY 2260502B
18Screw (4)
19Block, Housing Support
20MAY 3400858
21MAY 2201017
21Corner Filler (2) (White)
22MAY W10168144
22MAY W10153178
23MAY 489497
24Button, Filter (Black)
24MAY 2260503W
25MAY 3400103
26SCREW
27Screw (3)
28MAY 2319867
29Tube, Filter Outlet
30MAY 2304888
31MAY W10153550
32MAY 2188735
33LINER (NOT A SERVICEABLE PART)
34Hinge Cover (FC) (Black)
34Hinge Cover (FC) (White)
35MAY 8281227
36MAY 549193
37MAY 489084
38MAY 2155311
39MAY 489483
40Hinge Bottom (FC)
41CLOSER, FREEZER DOOR
