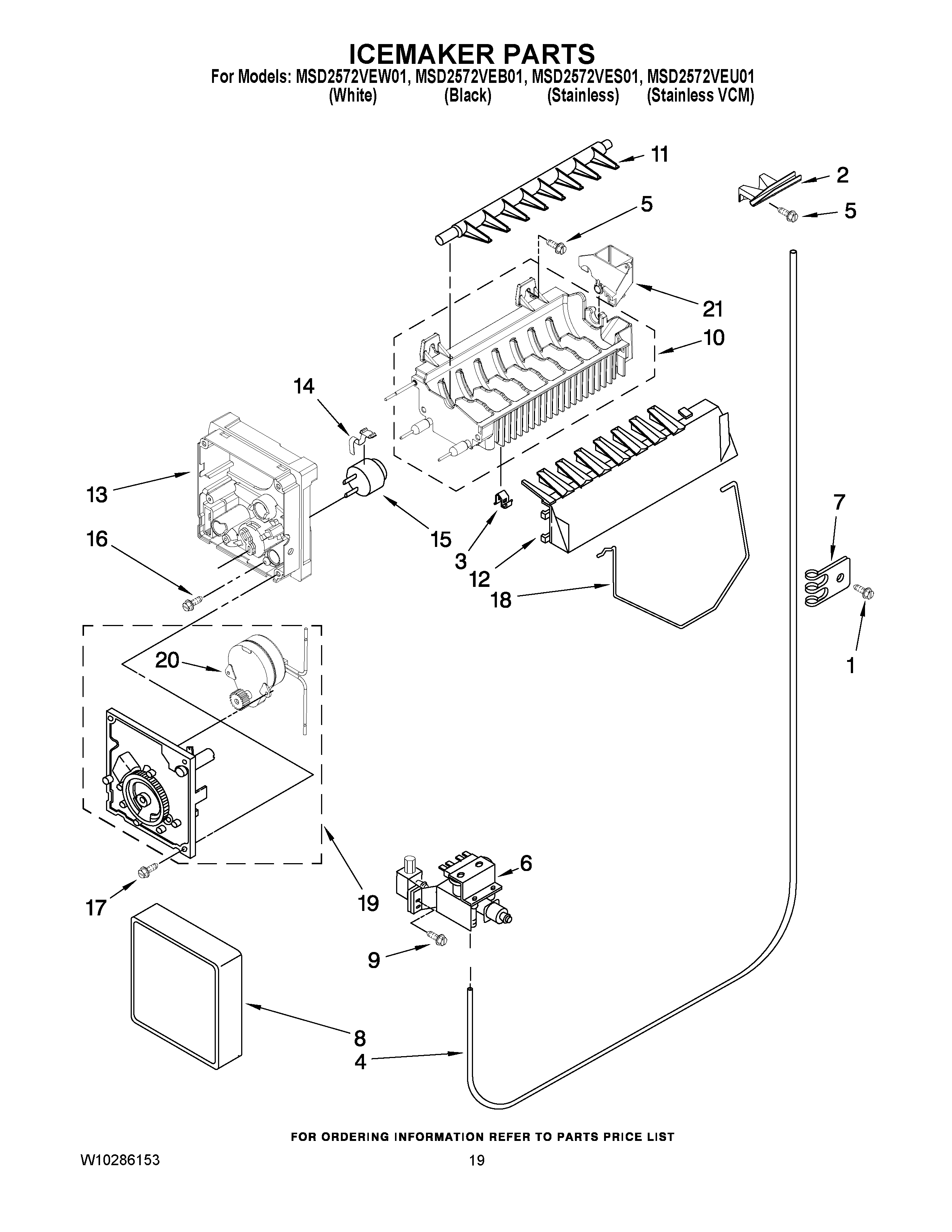

MSD2572VEW01 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	MAY 2209774
3	Clip
4	Tube, Water
5	Screw
6	MAY W10179146
7	Clip, Tube
8	MAY W10216906
9	MAY 488649
10	Mold & Heater Assembly (Also Order 542638)
11	MAY 2323524
12	ICE STRIPPER
13	MAY 2194712
14	MAY 2315522
15	THERMOSTAT (ALSO ORDER 542369 CEMENT)
16	MAY 8533917
17	MAY 489478
18	MAY 2304354
19	Module Assembly (Includes Items 23 and 24)
20	LINER (NOT A SERVICEABLE PART)
21	MAY W10122561
100	MAY W10122556
