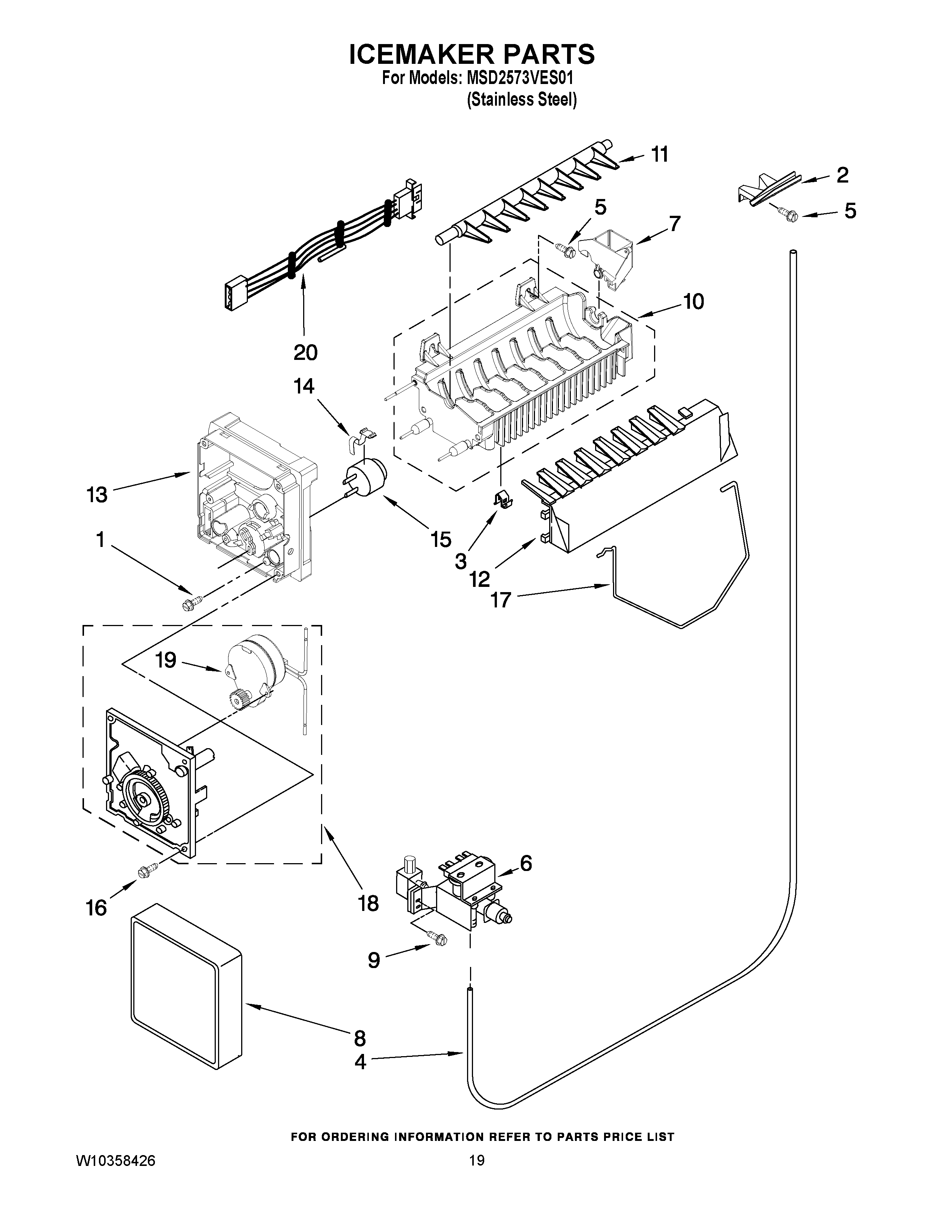

MSD2573VES01 12 – ICEMAKER PARTS

MSD2573VES01 12 – ICEMAKER PARTS

Written by

in

MSD2573VES01 12 – ICEMAKER PARTS

Products

PositionProduct
1MAY 8533917
2MAY 2209774
3Clip
4Tube, Water
5Screw
6MAY W10179146
7MAY W10122561
8COVER
9MAY 488649
10Mold & Heater Assembly (Also Order 542638)
11MAY 2323524
12ICE STRIPPER
13MAY 2194712
14MAY 2315522
15THERMOSTAT (ALSO ORDER 542369 CEMENT)
16MAY 489478
17MAY 2304354
18Module Assembly (Includes Items 23 and 24)
19LINER (NOT A SERVICEABLE PART)
20MAY 2187467
100MAY W10300022
