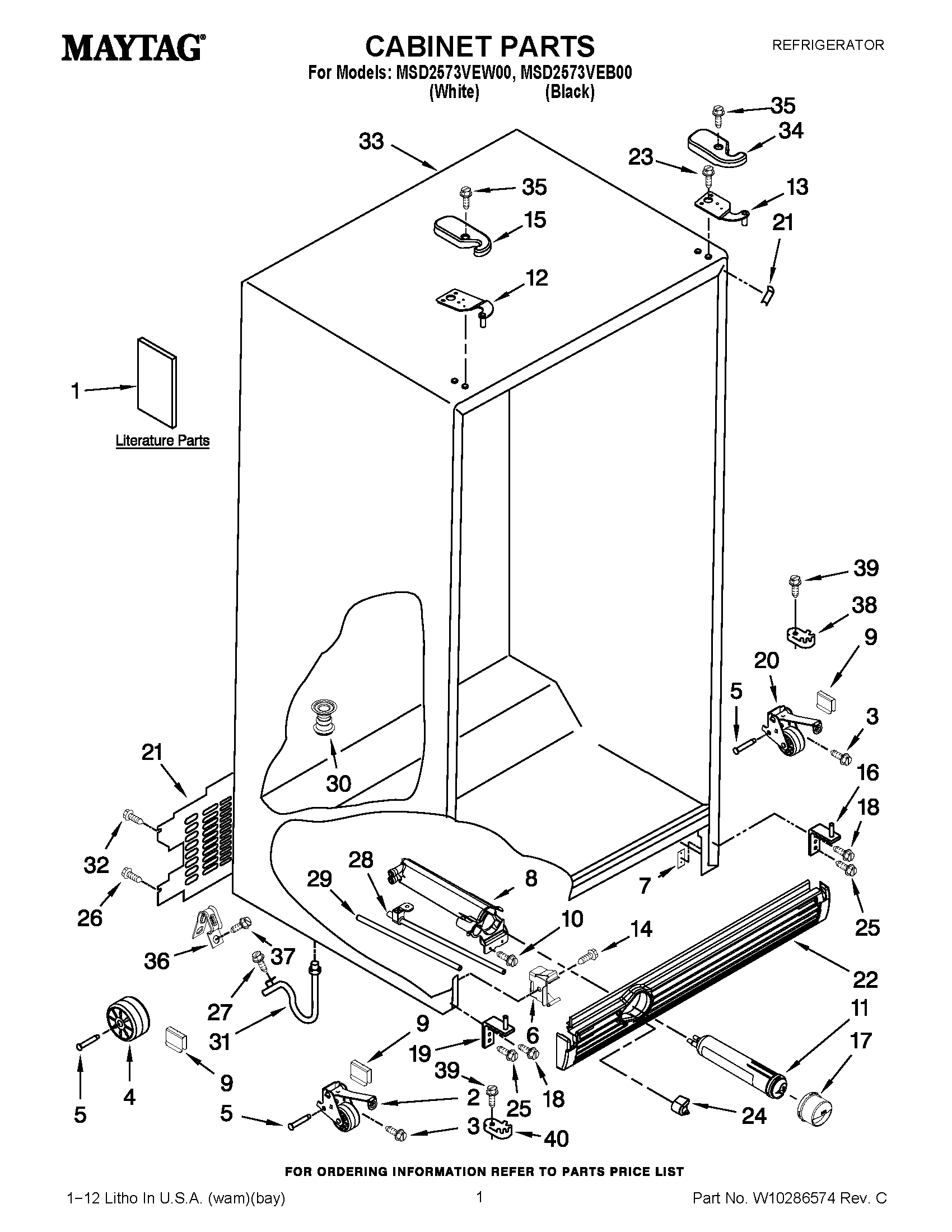

MSD2573VEW00 01 – CABINET PARTS

MSD2573VEW00 01 – CABINET PARTS

Written by

in

MSD2573VEW00 01 – CABINET PARTS

Products

Position	Product
1	MAY 628370
1	MAY W10321478
1	MAY W10161537
1	MAY W10280080
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	Housing, Water Filter
9	CLIP, ROLLER
10	MAY 489500
11	MAY 4396841
12	HINGE TOP FC
13	HINGE, TOP RC
14	MAY 488500
15	Hinge Cover (RC) (White)
15	Hinge Cover (RC) (Black)
16	MAY W10289528
17	MAY 2260502W
17	MAY 2260502B
18	Screw (4)
19	MAY W10289530
20	ROLLER, FRONT (RIGHT)
21	CORNER FILLER (BLACK)
21	CORNER FILLER (WHITE)
22	MAY W10184886
22	MAY W10184888
23	MAY 489497
24	MAY 2260503W
24	Button, Filter (Black)
25	MAY 3400103
26	SCREW
27	Screw (3)
28	MAY W10281289
29	Tube, Filter Outlet
30	MAY 2304888
31	MAY W10153550
32	MAY 2188735
33	LINER (NOT A SERVICEABLE PART)
34	Hinge Cover (FC) (Black)
34	Hinge Cover (FC) (White)
35	MAY 8281149
36	MAY 549193
37	MAY 489084
38	MAY 2155311
39	MAY W10029680
40	CLOSER, FREEZER DOOR
