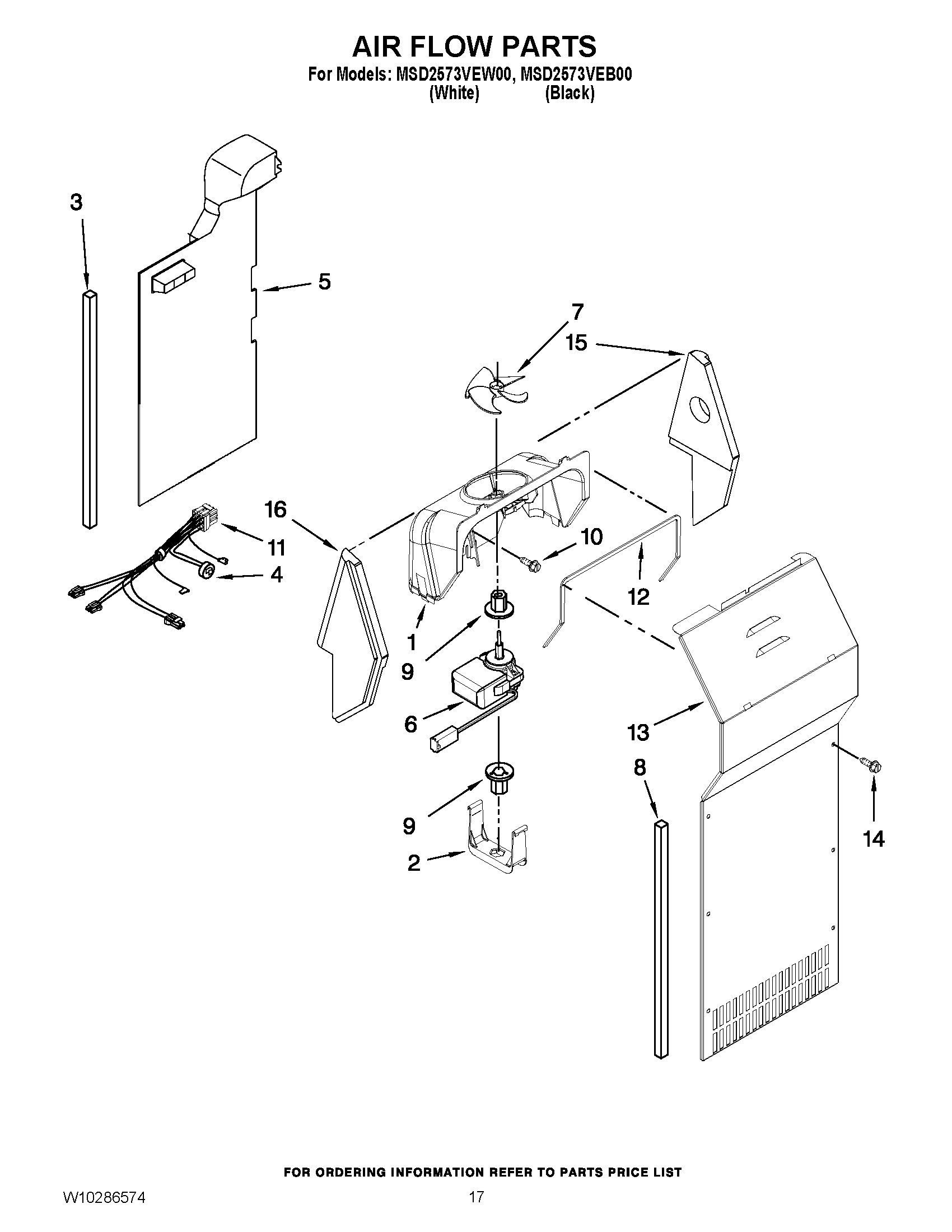

MSD2573VEW00 10 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	GASKET
4	MAY W10225581
5	AIR DUCT FREEZER
6	MAY W10312647
7	Blade, Fan (Evaporator)
8	Gasket
9	GROMMET, MOTOR
10	MAY 489478
11	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
12	Gasket, Fan Scroll
13	MAY W10196307
14	MAY 8281159
15	SUPPORT, FAN SCROLL (RIGHT HAND)
16	SUPPORT, FAN SCROLL (LEFT HAND)
