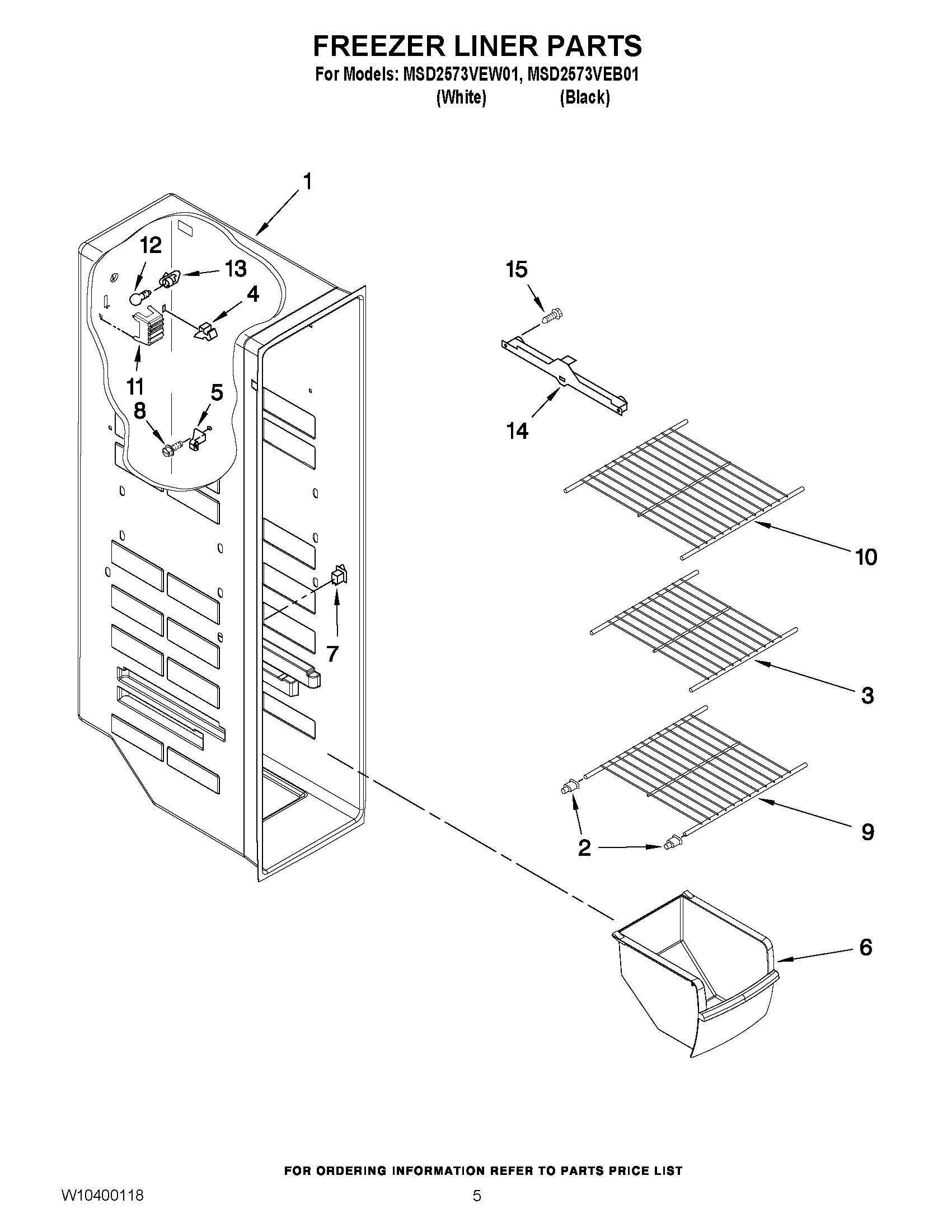

MSD2573VEW01 04 – FREEZER LINER PARTS

MSD2573VEW01 04 – FREEZER LINER PARTS

Written by

in

MSD2573VEW01 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Cup, Shelf Mount
3MAY W10318948
4MAY 2315163
5Support, Stud (4)
6Freezer Bin
7Switch, Rocker Arm
8MAY 3400893
9MAY W10318946
10MAY W10318947
11MAY 2212340
12MAY 527949
13Socket, Light
14Slide, Container (Right Side)
14Slide, Container (Left Side)
15MAY 489100
