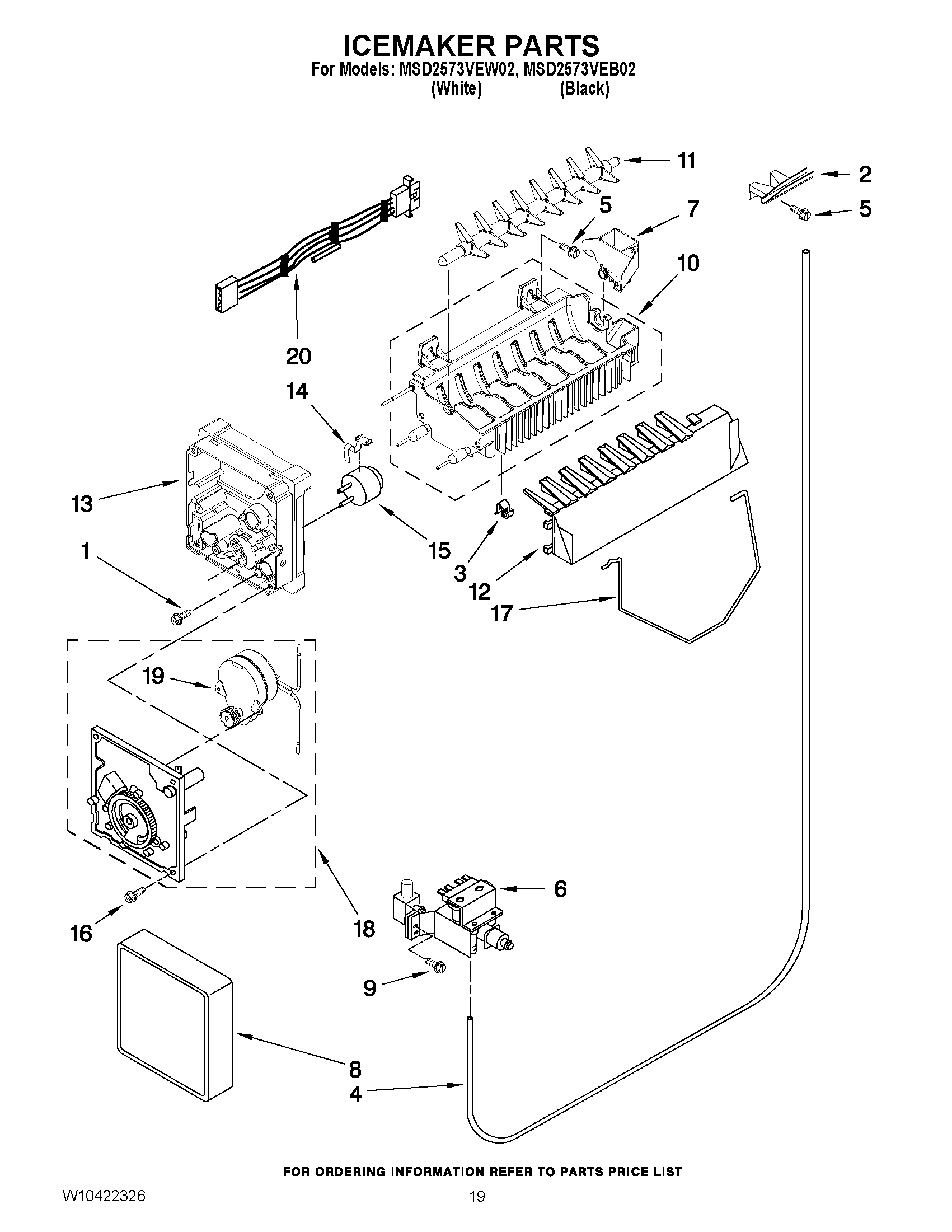

MSD2573VEW02 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY 8533917
2	MAY 2209774
3	Clip
4	Tube, Water
5	Screw
6	MAY W10179146
7	MAY W10122561
8	COVER
9	MAY 488649
10	ASSEMBLY, MOLD AND HEATER
11	MAY W10318914
12	ICE STRIPPER
13	Support & Motor Assembly
14	MAY 2315522
15	THERMOSTAT (ALSO ORDER 542369 CEMENT)
16	MAY 489478
17	MAY 2304354
18	Module Assembly (Includes Items 23 and 24)
19	LINER (NOT A SERVICEABLE PART)
20	ASSEMBLY, ICE MAKER WIRE
100	MAY W10300022
