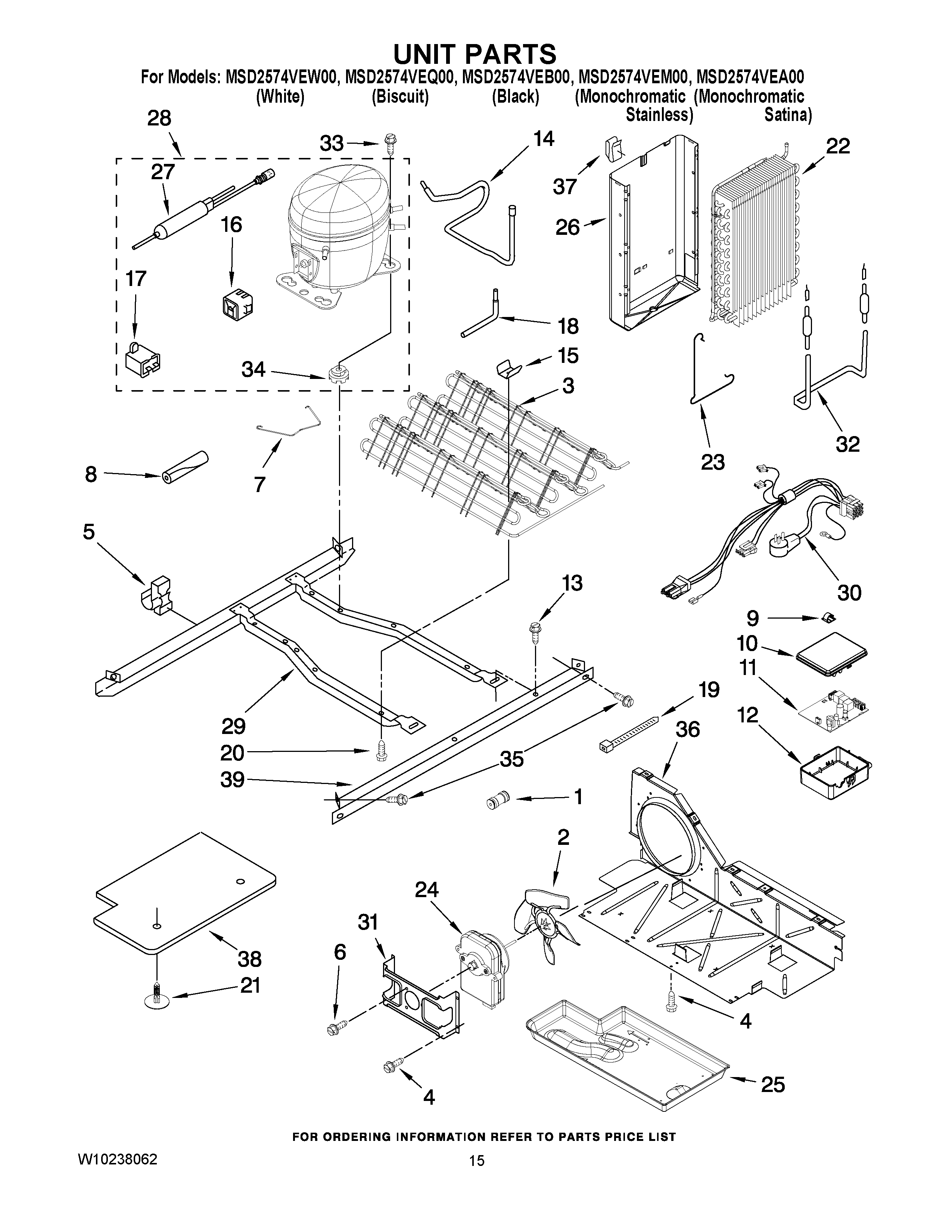

MSD2574VEB00 09 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	LINER (NOT A SERVICEABLE PART)
1	Connector, Water
2	Fan, Blade
3	MAY 2324712
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
7	MAY 2223314
8	Sleeve, Pressure Switch Hose
9	MAY 1115374
10	Box Cover
11	MAY 2322547
12	MAY 2326982
13	MAY 489427
14	MAY 2205765
15	MAY 2311725
16	Start-Device, Combination (Start Relay and Overload) (Production)
16	Start Device, Combination (Start Relay and overload) for (Service)
17	CAPACITATOR (SERVICE)
18	MAY 2261599
19	MAY 2263990
20	MAY 8281232
21	MAY 489396
22	Evaporator
23	Clip
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Heat Shield (Includes 26)
27	Drier
27	Drier
28	COMPRESSOR (ALSO ORDER 876765 TUBE KIT)
29	Unit Mounting Frame
30	Harness, Unit
31	MAY 2181929
32	MAY 2188175
33	MAY 489373
34	Grommet (Production)
34	MAY 4387558
35	MAY 489340
36	MAY W10163483
37	MAY 2155547
38	MAY 2304891
39	MAY W10196323
