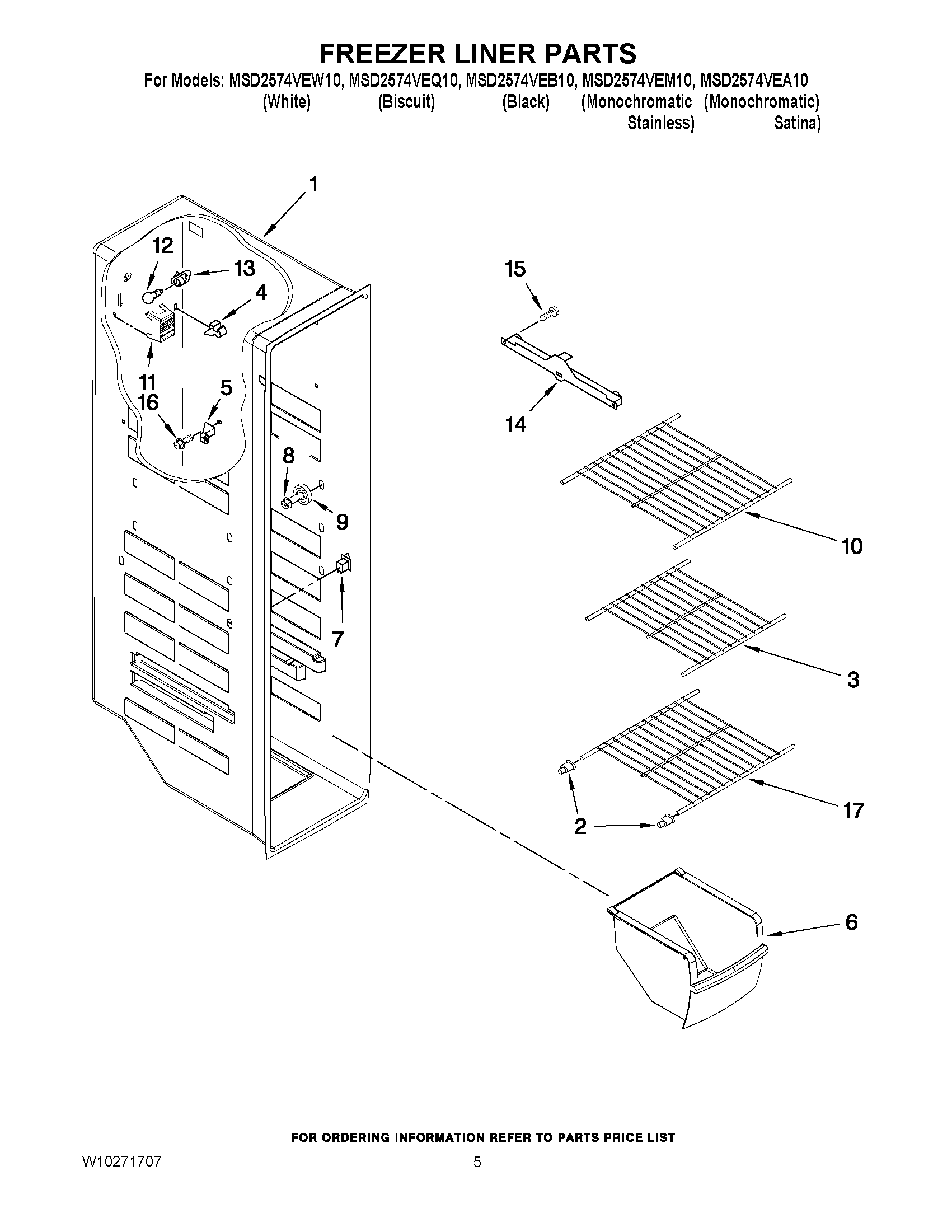

MSD2574VEB10 04 – FREEZER LINER PARTS

MSD2574VEB10 04 – FREEZER LINER PARTS

Written by

in

MSD2574VEB10 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Cup, Shelf Mount
3MAY W10318948
4Clip, Air Duct (2)
5Support, Stud (4)
6Freezer Bin
7Switch, Rocker Arm
8MAY W10191952
9ASSEMBLY, SHELF STUD
10MAY W10318947
11MAY 2212340
12MAY 527949
13Socket, Light
14Slide, Container (Left Side)
14Slide, Container (Right Side)
15MAY 489100
16MAY 3400893
17MAY W10318946
