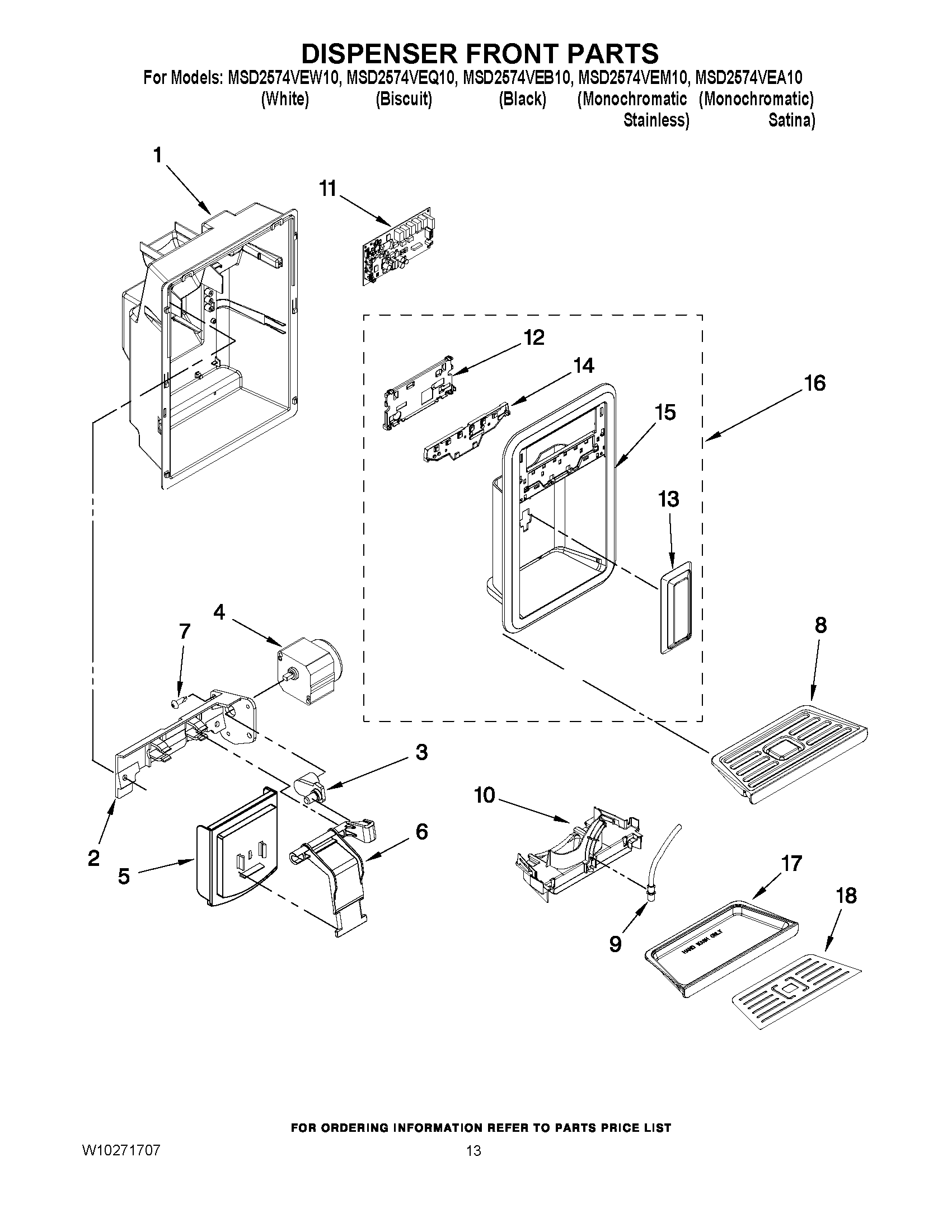

MSD2574VEB10 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	MAY 2305202
3	MAY 2305242
4	MAY W10144517
5	MAY 2328020
6	MAY 2328018
7	MAY 4449745
8	MAY W10192686
8	Tray Assembly (White)
8	Tray Assembly (Black)
8	MAY W10192689
9	MAY 2328033
10	MAY 2328015
11	MAY W10144584
12	MAY W10144040
13	PAD
13	MAY W10178766
13	MAY W10176454
13	MAY W10176455
13	MAY W10176456
14	MAY W10182888
15	LINER (NOT A SERVICEABLE PART)
16	MAY W10144041
16	MAY W10179004
16	MAY W10179005
16	MAY W10179007
16	FRONT COVER ASSEMBLY (INCLUDES ITEMS 11, 12, 13, 14, & 15)
17	Drip Tray, Stainless
18	GRILLE
