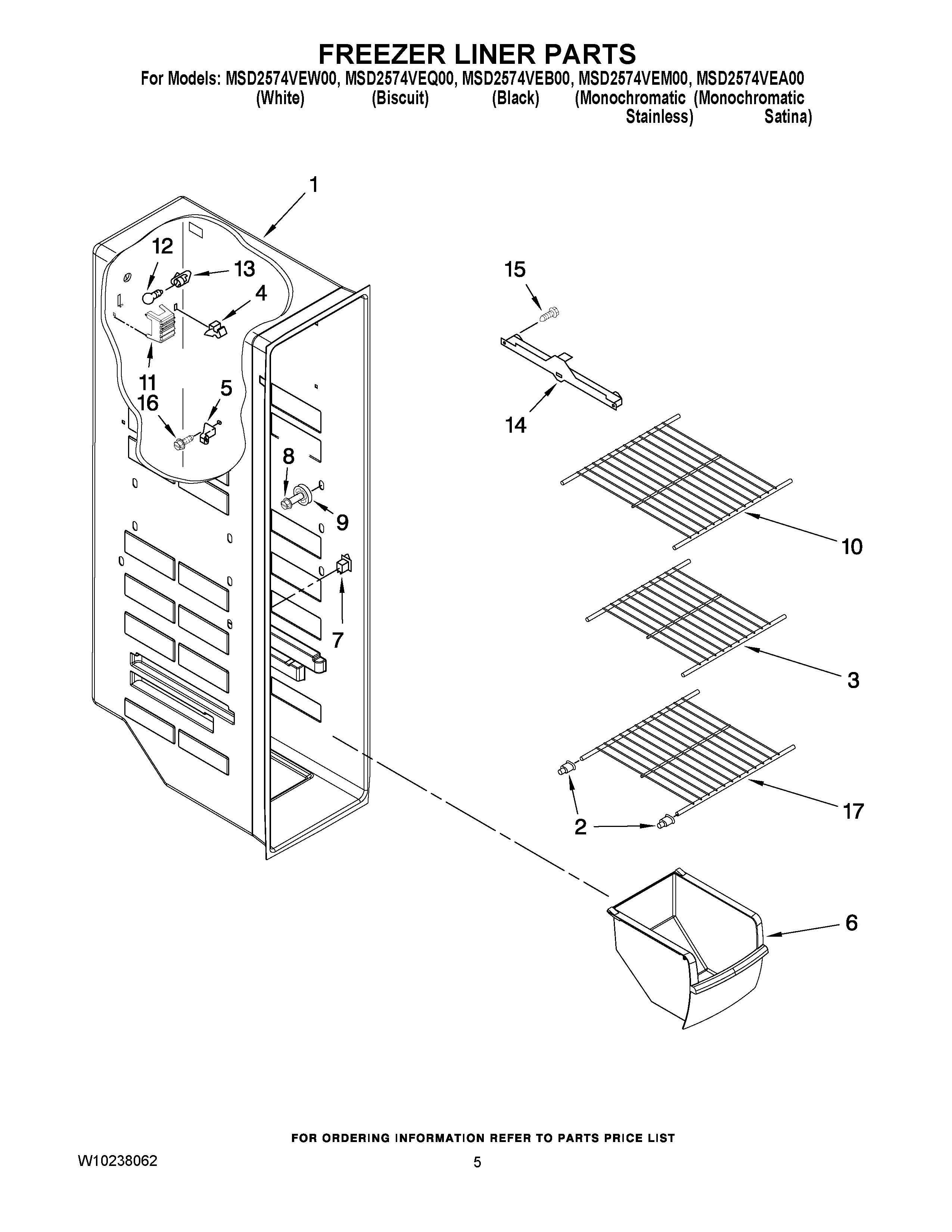

MSD2574VEM00 04 – FREEZER LINER PARTS

MSD2574VEM00 04 – FREEZER LINER PARTS

Written by

in

MSD2574VEM00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Cup, Shelf Mount
3	MAY 2309597
4	Clip, Air Duct (2)
5	Support, Stud (4)
6	Freezer Bin
7	Switch, Rocker Arm
8	MAY 8281158
9	MAY 2196483
10	Shelf, Wire
11	MAY 2212340
12	MAY 527949
13	Socket, Light
14	Slide, Container (Left Side)
14	Slide, Container (Right Side)
15	MAY 489100
16	MAY 3400893
17	SHELF WIRE
