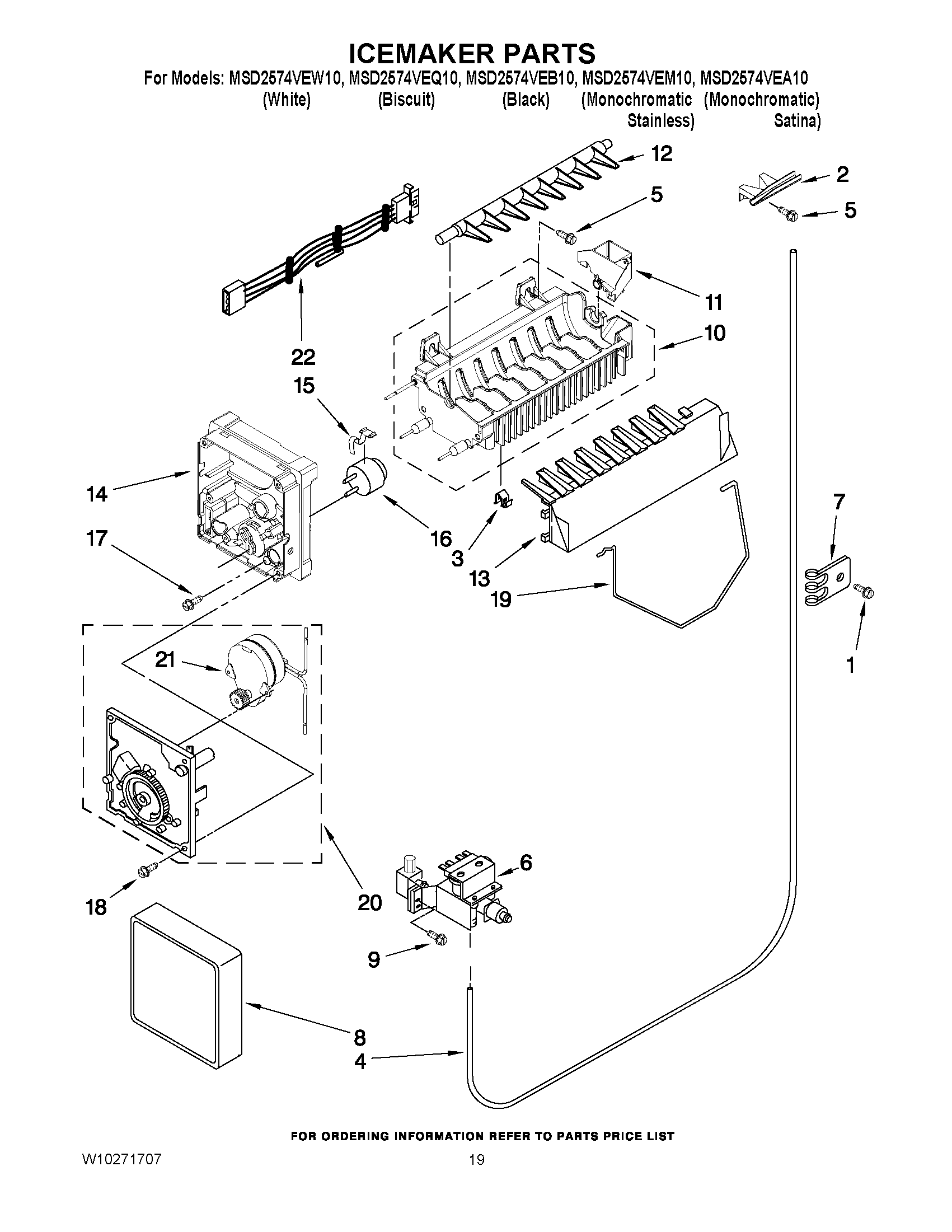

MSD2574VEM10 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	MAY 2209774
3	Clip
4	Tube, Water
5	Screw
6	MAY W10179146
7	Clip, Tube
8	MAY W10216906
9	MAY 488649
10	Mold & Heater Assembly (Also Order 542638)
11	MAY W10122561
12	MAY 2323524
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	THERMOSTAT (ALSO ORDER 542369 CEMENT)
17	MAY 8533917
18	MAY 489478
19	MAY 2304354
20	Module Assembly (Includes Items 23 and 24)
21	LINER (NOT A SERVICEABLE PART)
22	MAY 2187467
100	MAY W10122556
