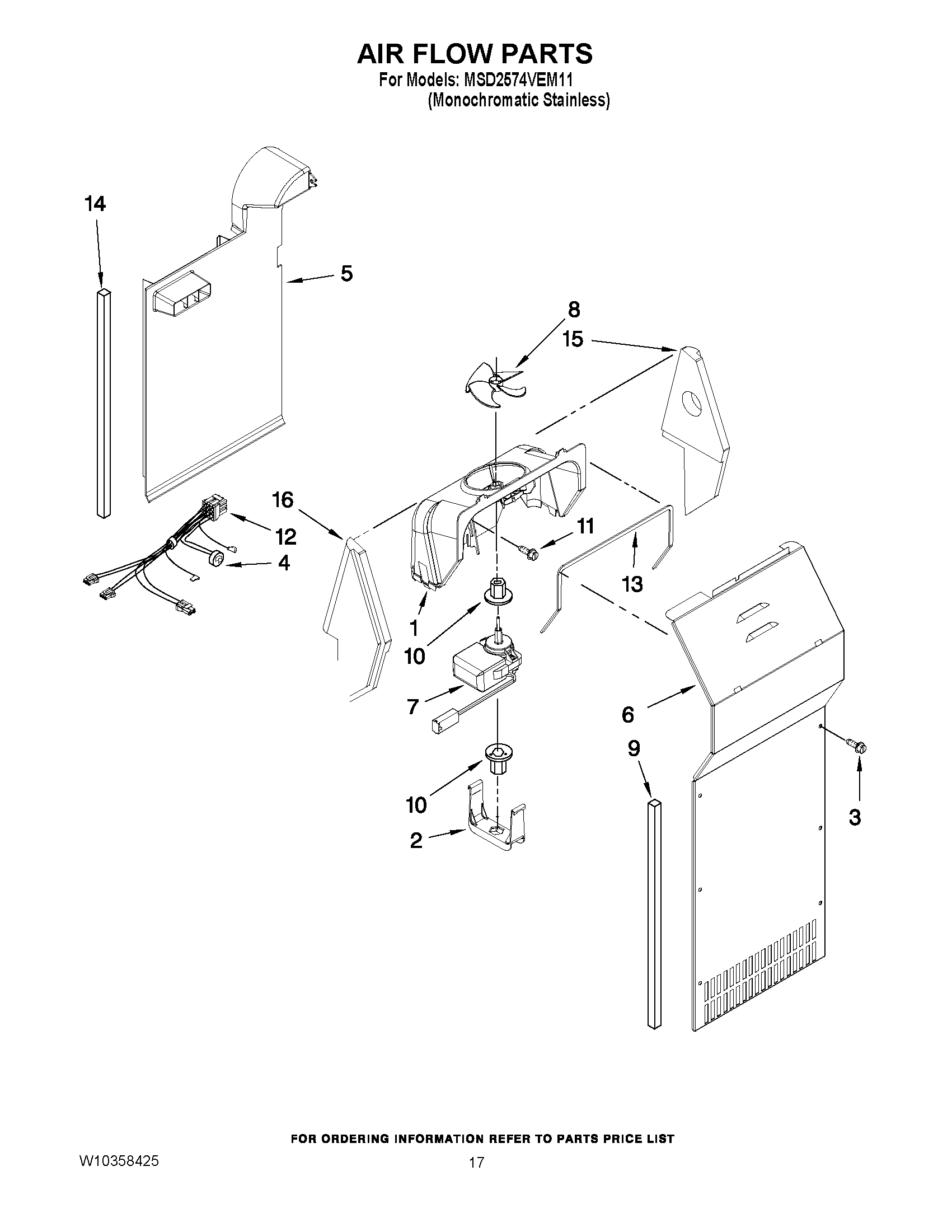

MSD2574VEM11 10 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 8281159
4	MAY 2321799
5	AIR DUCT FREEZER
6	Cover, Evaporator (Includes 9)
7	MAY W10131845
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY 489478
12	MAY W10281330
13	Gasket, Fan Scroll
14	GASKET
15	SUPPORT, FAN SCROLL (RIGHT HAND)
16	SUPPORT, FAN SCROLL (LEFT HAND)
