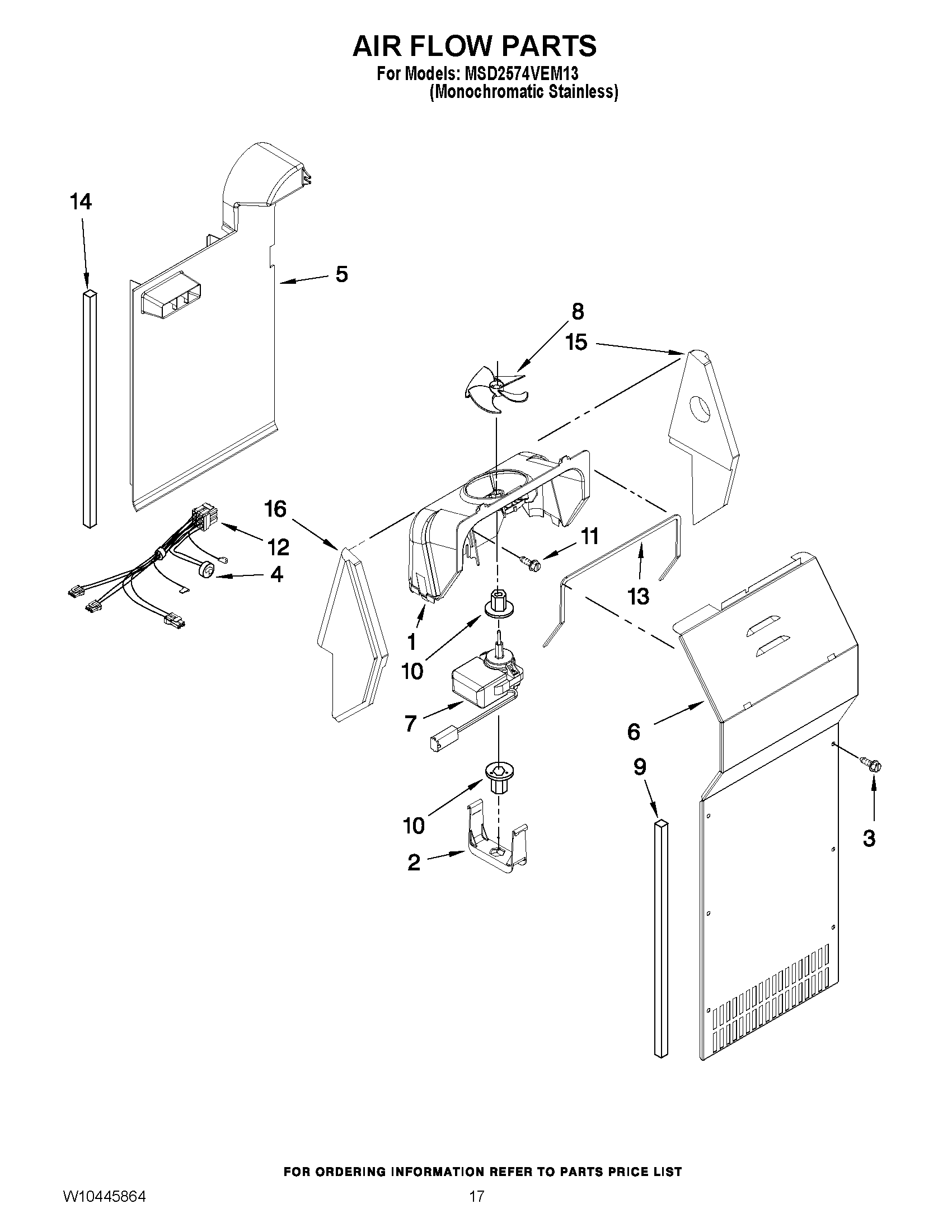

MSD2574VEM13 10 – AIR FLOW PARTS

Products

PositionProduct
1Fan Scroll
2MAY 2155590
3MAY 8281159
4MAY W10225581
5AIR DUCT FREEZER
6Cover, Evaporator (Includes 9)
7MAY W10131845
8Blade, Fan (Evaporator)
9Gasket
10GROMMET, MOTOR
11MAY 489478
12HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13Gasket, Fan Scroll
14GASKET
15SUPPORT, FAN SCROLL (RIGHT HAND)
16SUPPORT, FAN SCROLL (LEFT HAND)
