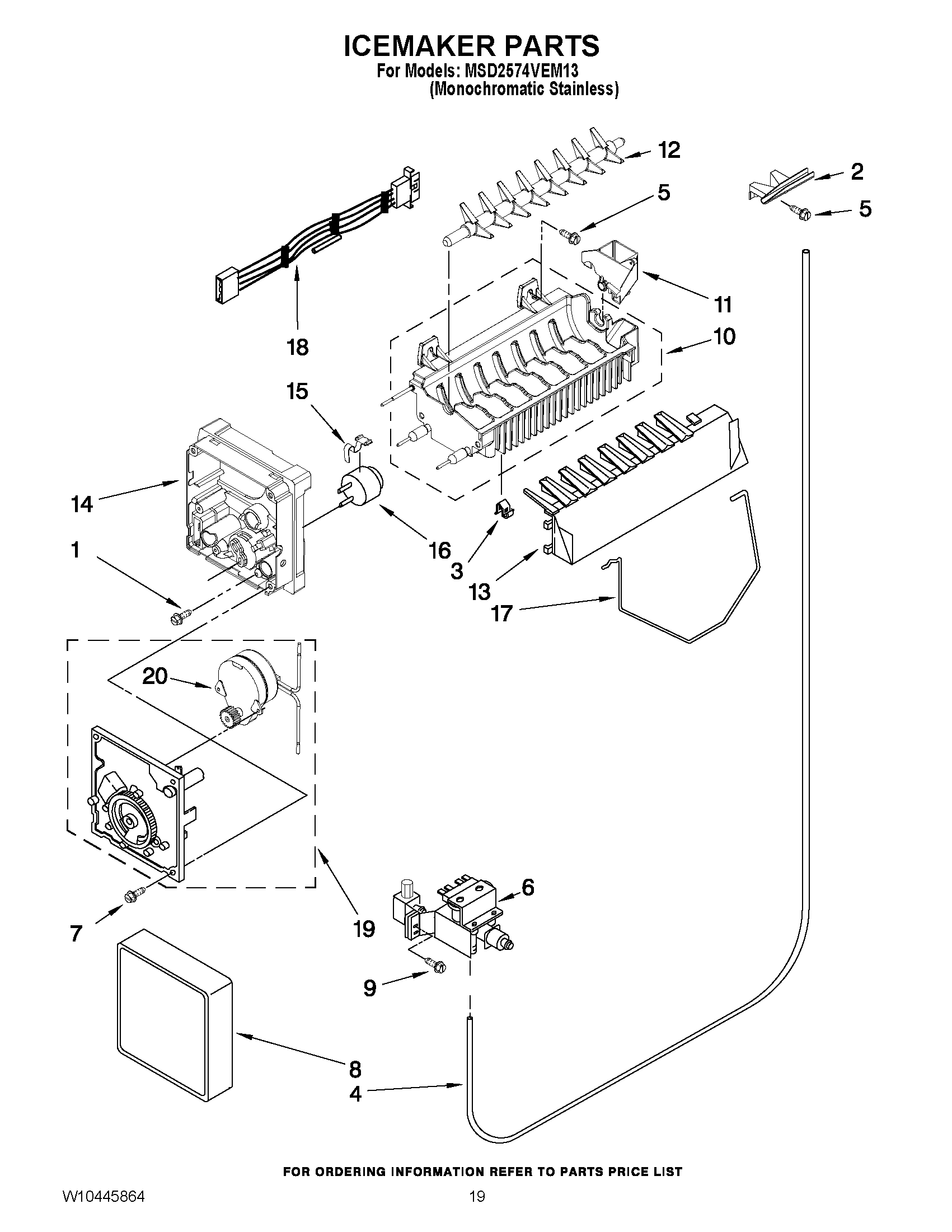

MSD2574VEM13 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY 8533917
2	MAY 2209774
3	Clip
4	MAY W10357076
5	Screw
6	MAY W10179146
7	MAY 489478
8	COVER
9	MAY 488649
10	ASSEMBLY, MOLD AND HEATER
11	MAY W10122561
12	MAY W10318914
13	ICE STRIPPER
14	Support & Motor Assembly
15	MAY 2315522
16	THERMOSTAT (ALSO ORDER 542369 CEMENT)
17	MAY 2304354
18	ASSEMBLY, ICE MAKER WIRE
19	Module Assembly (Includes Items 23 and 24)
20	LINER (NOT A SERVICEABLE PART)
100	MAY W10300022
