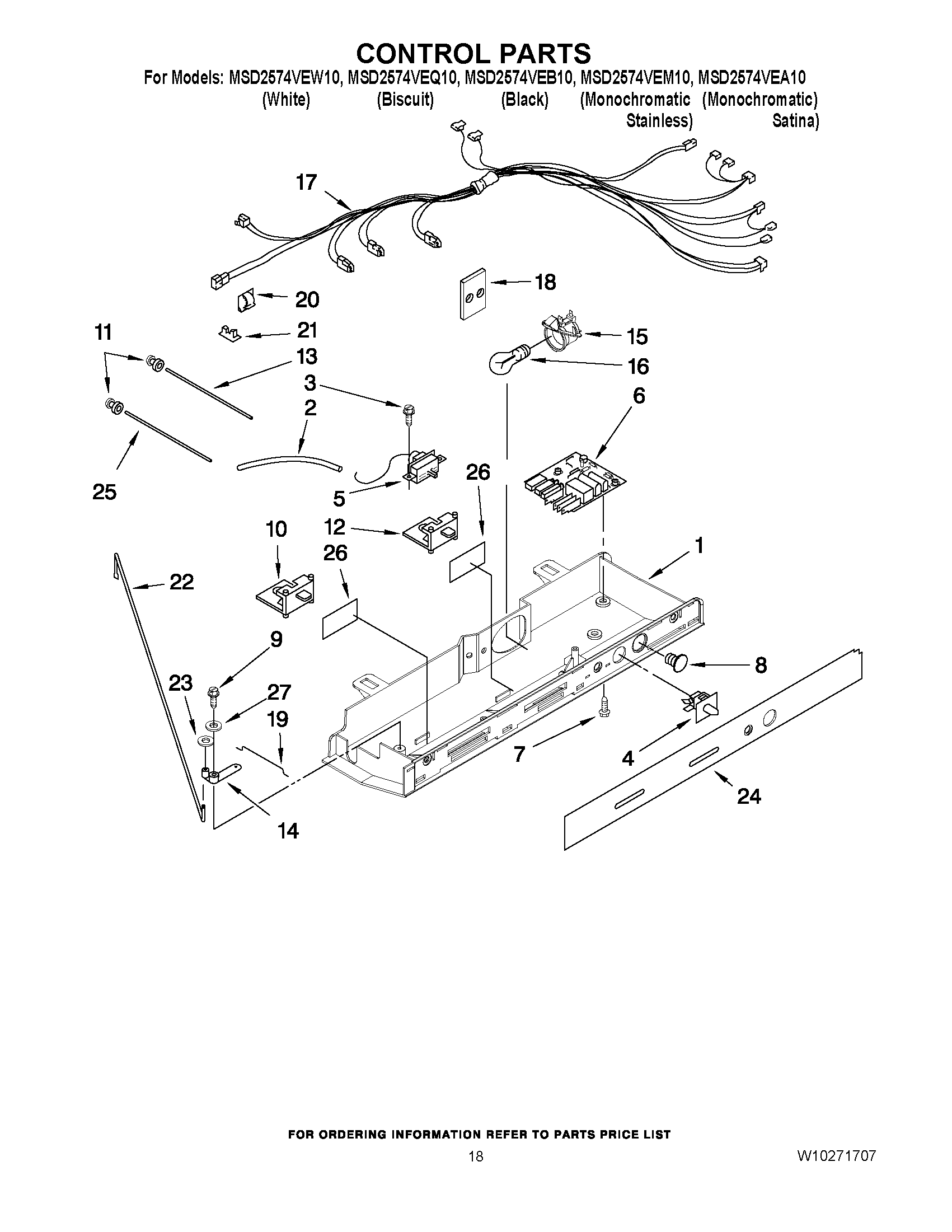

MSD2574VEQ10 11 – CONTROL PARTS – Aparts

MSD2574VEQ10 11 – CONTROL PARTS

Products

Position	Product
1	MAY 2181738
2	TUBE-BARRIER, THERMOSTAT
3	Screw (2)
4	MAY 2149705
5	Thermostat
6	Control Board Assembly
7	Screw
8	MAY 940014
9	MAY 627068
10	MAY 2181741
11	Grommet, Light Bar (4)
12	MAY 2161466
13	MAY 2179920
14	Pivot Arm
15	Socket, Light
16	MAY 527949
17	MAY 2187868
18	MAY 2172931
19	CONNECTING ROD, SHORT
20	MAY 1115374
21	Clip-Wiring
22	Connecting Rod
23	Fastner, Push-On
24	MAY W10176424
25	LIGHT BAR FC
26	MAY 2175513
27	Spring Washer
