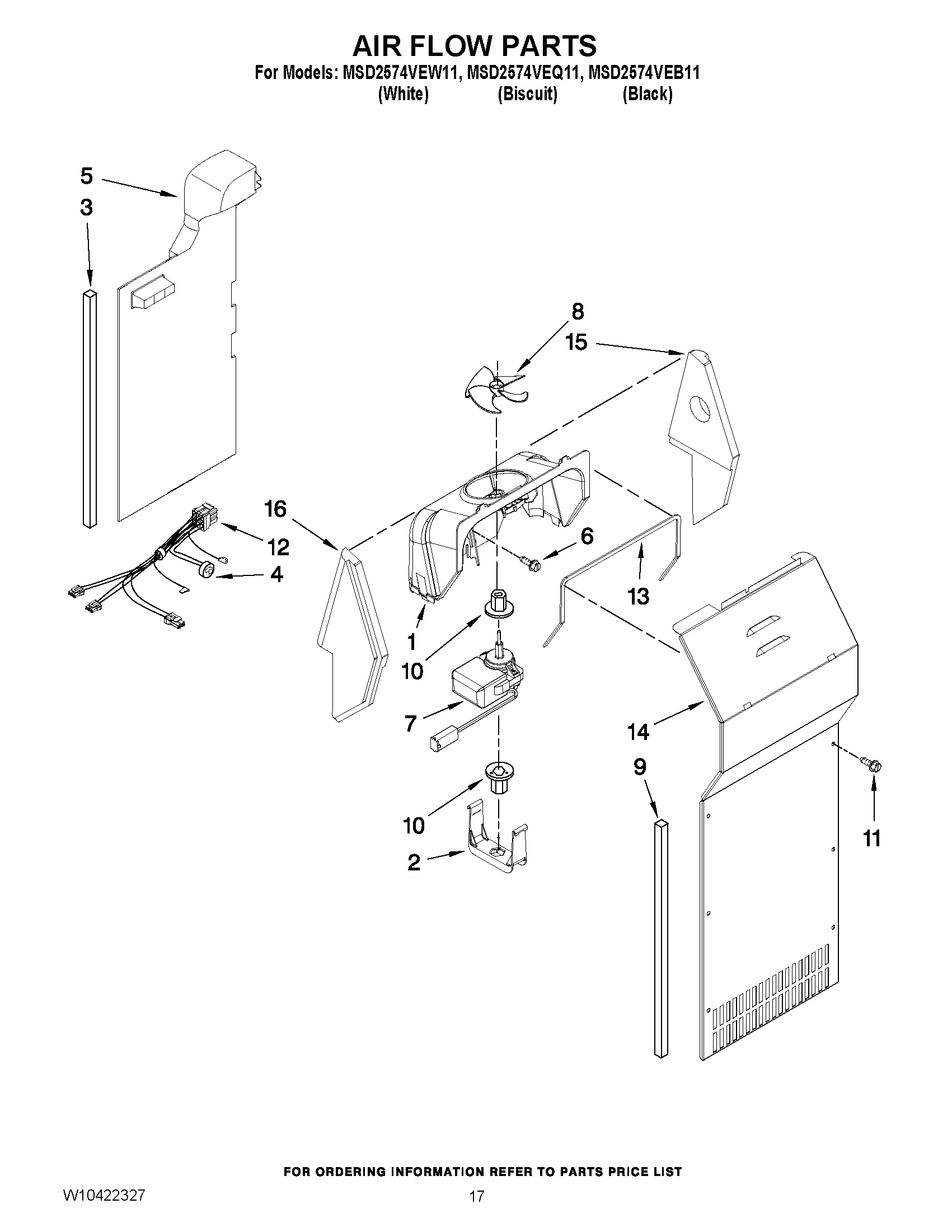

MSD2574VEQ11 10 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	GASKET
4	MAY W10225581
5	AIR DUCT FREEZER
6	MAY 489478
7	MAY W10131845
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY 8281159
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	Gasket, Fan Scroll
14	Cover, Evaporator (Includes 9)
15	SUPPORT, FAN SCROLL (RIGHT HAND)
16	SUPPORT, FAN SCROLL (LEFT HAND)
