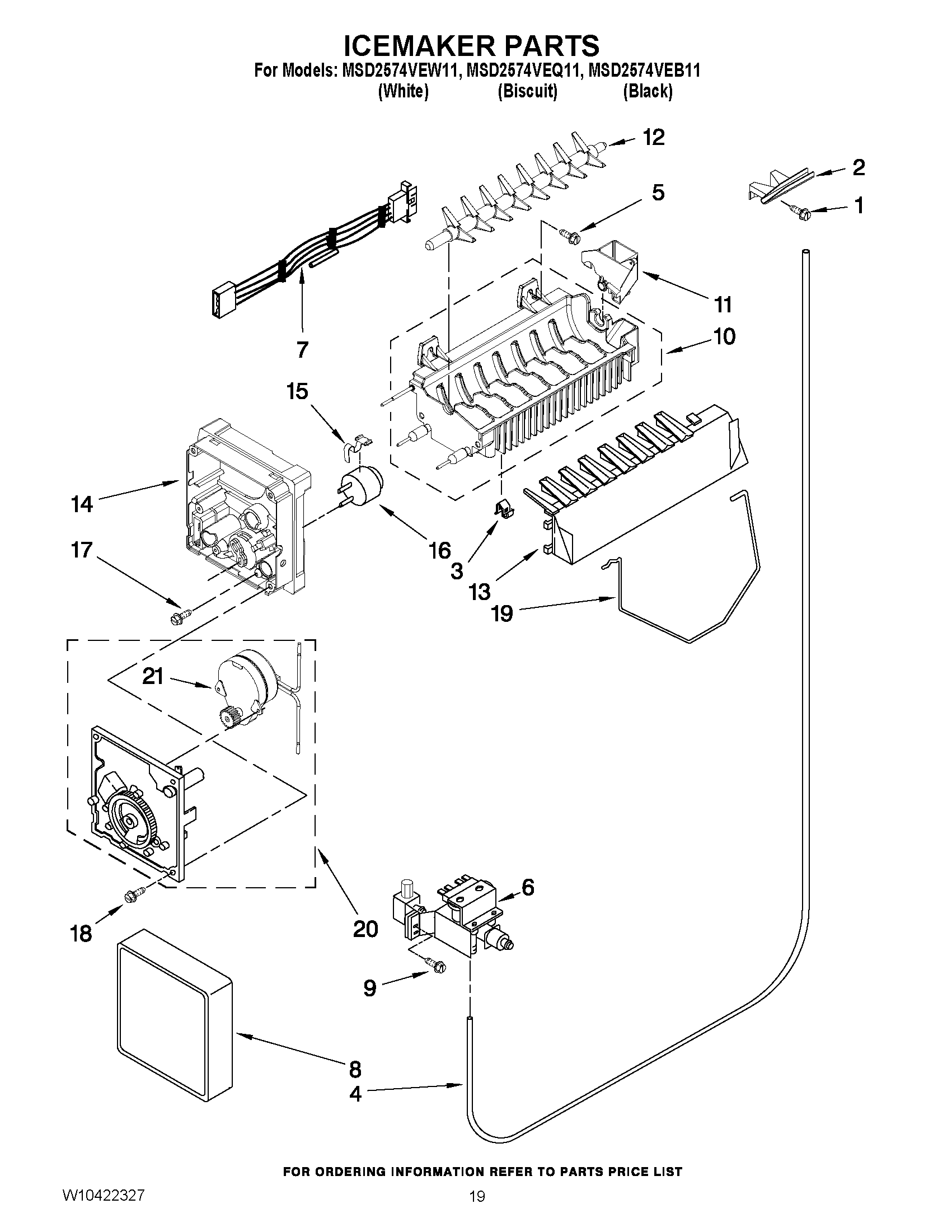

MSD2574VEQ11 12 – ICEMAKER PARTS

Products

PositionProduct
2MAY 2209774
3Clip
4Tube, Water
5Screw
6MAY W10179146
7ASSEMBLY, ICE MAKER WIRE
8COVER
9MAY 488649
10ASSEMBLY, MOLD AND HEATER
11MAY W10122561
12MAY W10318914
13ICE STRIPPER
14Support & Motor Assembly
15MAY 2315522
16THERMOSTAT (ALSO ORDER 542369 CEMENT)
17MAY 8533917
18MAY 489478
19MAY 2304354
20Module Assembly (Includes Items 23 and 24)
21LINER (NOT A SERVICEABLE PART)
100MAY W10300022
