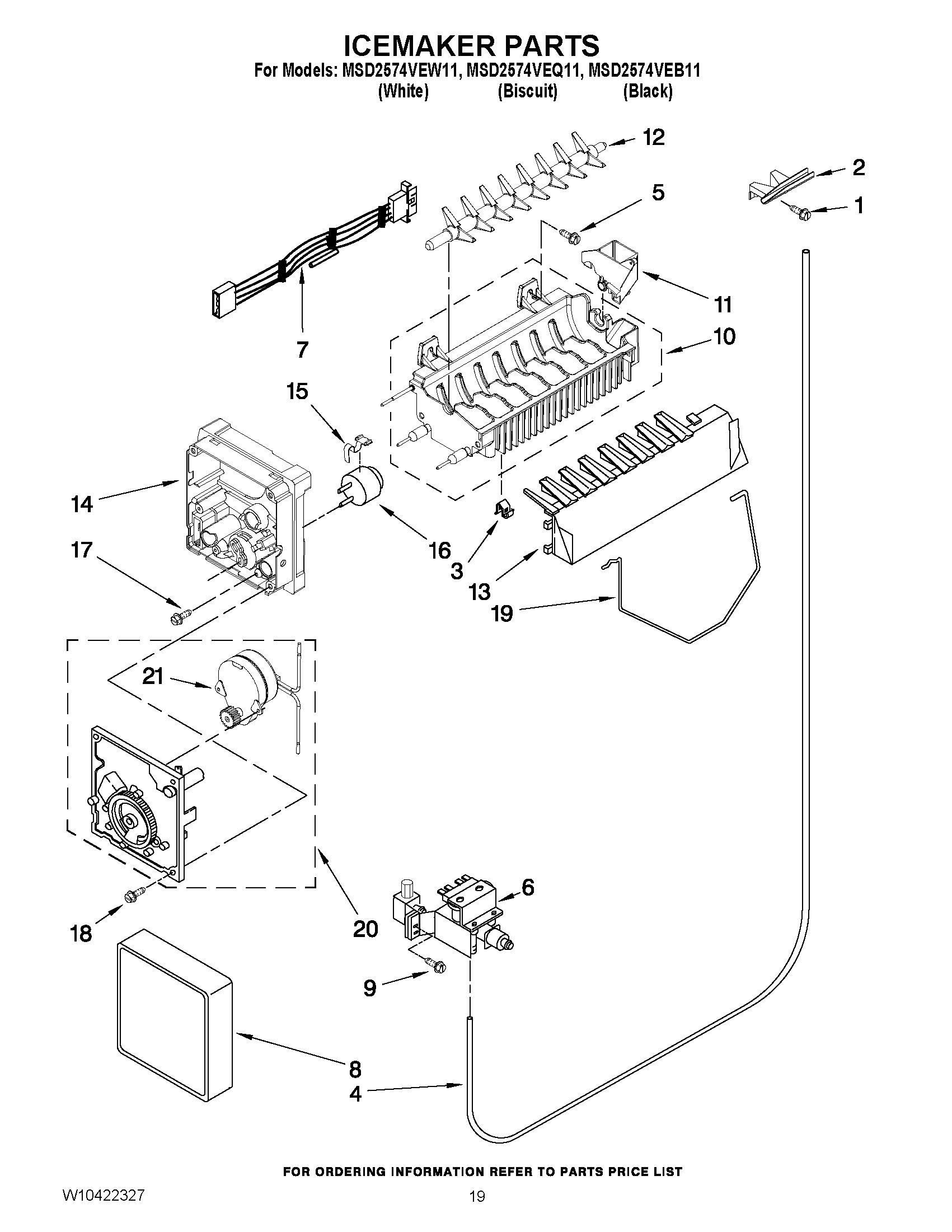

MSD2574VEW11 12 – ICEMAKER PARTS

Products

Position	Product
2	MAY 2209774
3	Clip
4	Tube, Water
5	Screw
6	MAY W10179146
7	ASSEMBLY, ICE MAKER WIRE
8	COVER
9	MAY 488649
10	ASSEMBLY, MOLD AND HEATER
11	MAY W10122561
12	MAY W10318914
13	ICE STRIPPER
14	Support & Motor Assembly
15	MAY 2315522
16	THERMOSTAT (ALSO ORDER 542369 CEMENT)
17	MAY 8533917
18	MAY 489478
19	MAY 2304354
20	Module Assembly (Includes Items 23 and 24)
21	LINER (NOT A SERVICEABLE PART)
100	MAY W10300022
