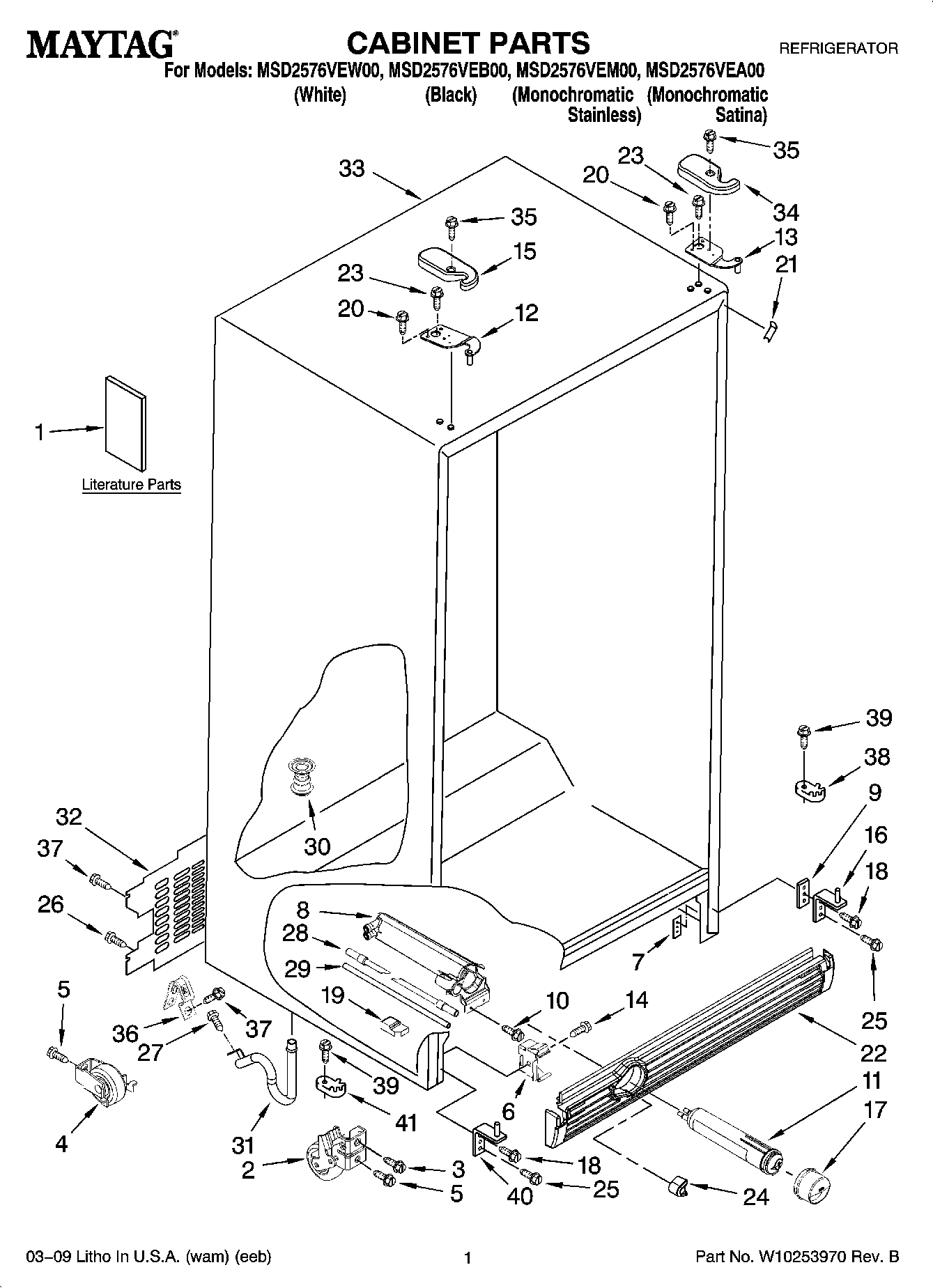

MSD2576VEW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10216883
1	MAY W10235230
1	MAY 628370
1	MAY W10216884
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 2304249
8	Housing, Water Filter
9	Shim (2)
10	MAY 489500
11	MAY 4396841
12	HINGE TOP, FC
13	HINGE TOP RC
14	MAY 488500
15	Hinge Cover (RC) (White)
15	Hinge Cover (RC) (Black)
15	COVER, HINGE (FREEZER) (GREY)
16	MAY 2217075
17	CAP, WATER FILTER (GREY)
17	MAY 2260502W
17	MAY 2260502B
18	Screw (4)
19	Block, Housing Support
20	MAY 3400858
21	Filler, Wrapper (Apollo Grey)
21	MAY 2201017
21	Corner Filler (2) (White)
22	MAY W10168144
22	MAY W10201138
22	MAY W10153178
23	MAY 489497
24	Button, Filter (Black)
24	BUTTON, WATER FILTER (GREY)
24	MAY 2260503W
25	MAY 3400103
26	SCREW
27	Screw (3)
28	MAY 2319867
29	Tube, Filter Outlet
30	MAY 2304888
31	MAY W10153550
32	MAY 2188735
34	COVER, HINGE (REFRIGERATOR) (GREY)
34	Hinge Cover (FC) (Black)
34	Hinge Cover (FC) (White)
35	MAY 8281227
36	MAY 549193
37	MAY 489084
38	MAY 2155311
39	MAY 489483
40	Hinge Bottom (FC)
41	CLOSER, FREEZER DOOR
