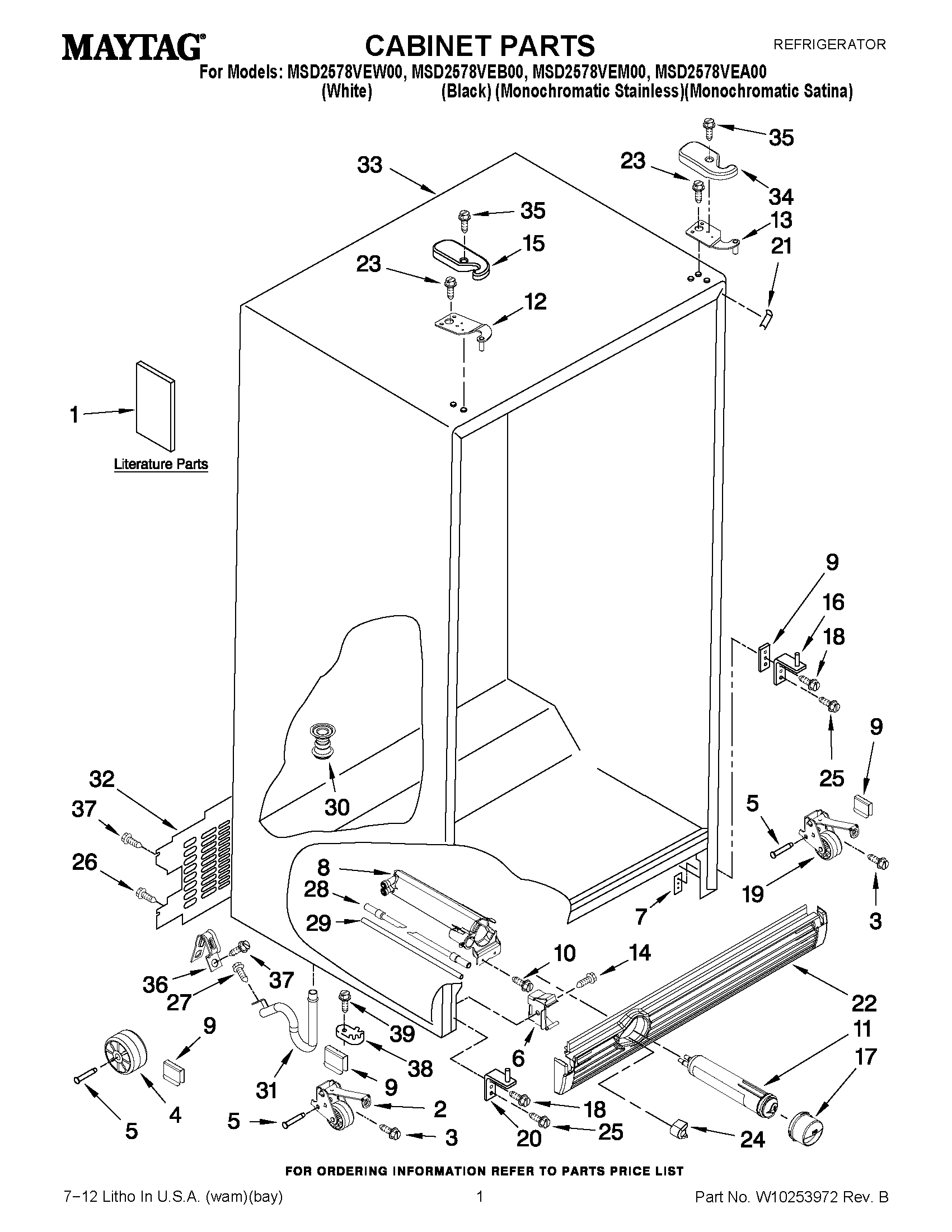

MSD2578VEA00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10216897
1	MAY W10158696
1	MAY 628370
1	MAY W10181508
2	ROLLER, FRONT (LEFT)
3	MAY 489427
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	Housing, Water Filter
9	CLIP, ROLLER
10	MAY 489500
11	MAY 4396841
12	HINGE TOP FC
13	HINGE, TOP RC
14	MAY 488500
15	Hinge Cover (RC) (White)
15	Hinge Cover (RC) (Black)
15	COVER, HINGE (FREEZER) (GREY)
16	BOTTOM HINGE (RC)
17	MAY 2260502W
17	CAP, WATER FILTER (GREY)
17	MAY 2260502B
18	Screw (4)
19	ROLLER, FRONT (RIGHT)
20	MAY W10289530
21	CORNER FILLER (BLACK)
21	CORNER FILLER (WHITE)
21	FILLER, CORNER (GREY)
22	MAY W10184888
22	MAY W10184886
22	GRILLE (MIDNIGHT GREY)
23	MAY 489797
24	MAY 2260503W
24	BUTTON, WATER FILTER (GREY)
24	Button, Filter (Black)
25	MAY 3400103
26	SCREW
27	Screw (3)
28	MAY W10281289
29	Tube, Filter Outlet
30	MAY 2304888
31	MAY W10153550
32	MAY 2188735
33	LINER (NOT A SERVICEABLE PART)
34	Hinge Cover (FC) (Black)
34	COVER, HINGE (REFRIGERATOR) (GREY)
34	Hinge Cover (FC) (White)
35	MAY 8281149
36	MAY 549193
37	MAY 489084
38	CLOSER, FREEZER DOOR
39	MAY W10029680
