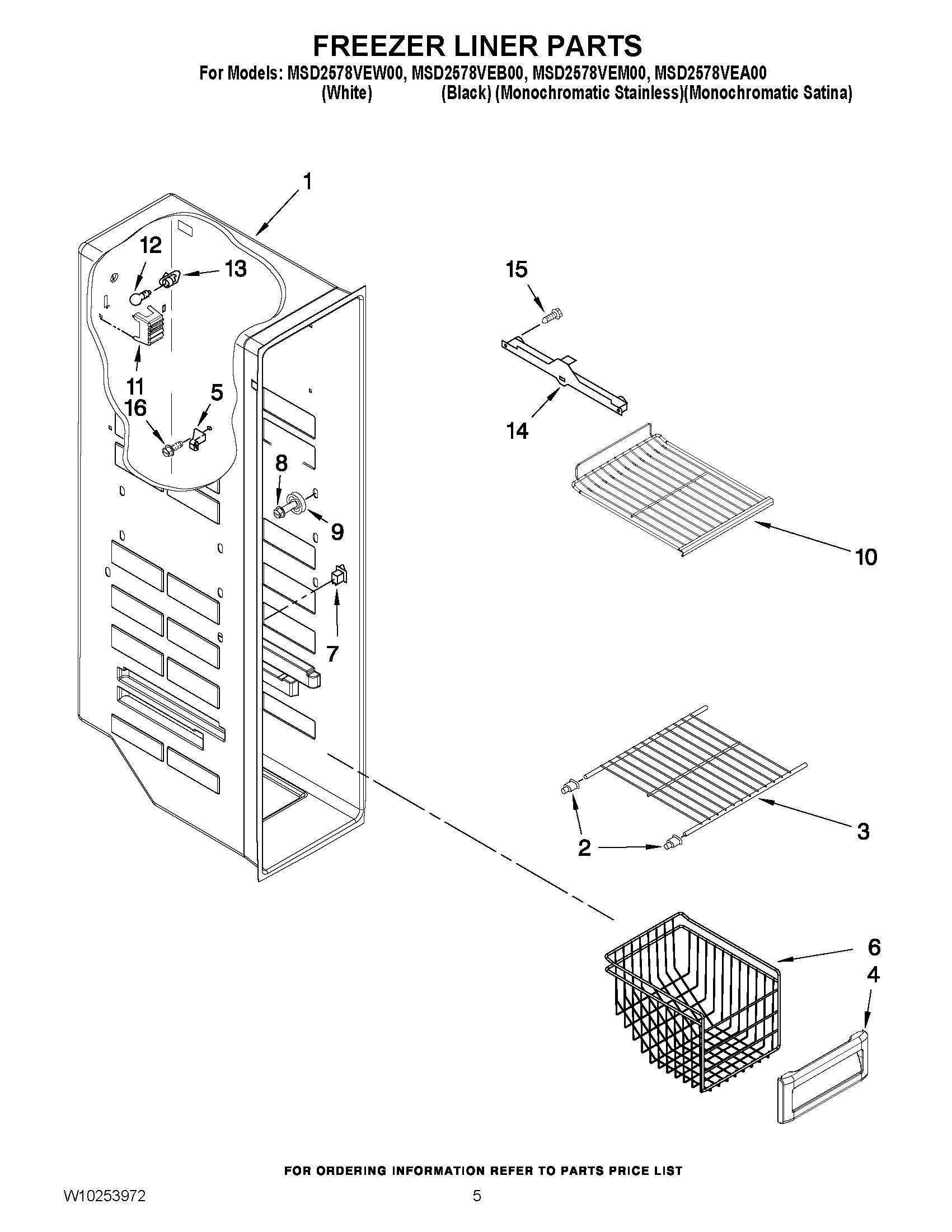

MSD2578VEA00 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Cup, Shelf Mount
3MAY W10318961
4MAY W10153254
5Support, Stud (4)
6MAY W10153523
7Switch, Rocker Arm
8MAY W10191952
9ASSEMBLY, SHELF STUD
10Shelf, Slide Out Lower (2)
11MAY 2212340
12MAY W10194422
13Socket, Light
14Slide, Container (Left Side)
14Slide, Container (Right Side)
15MAY 489100
16MAY 3400893
