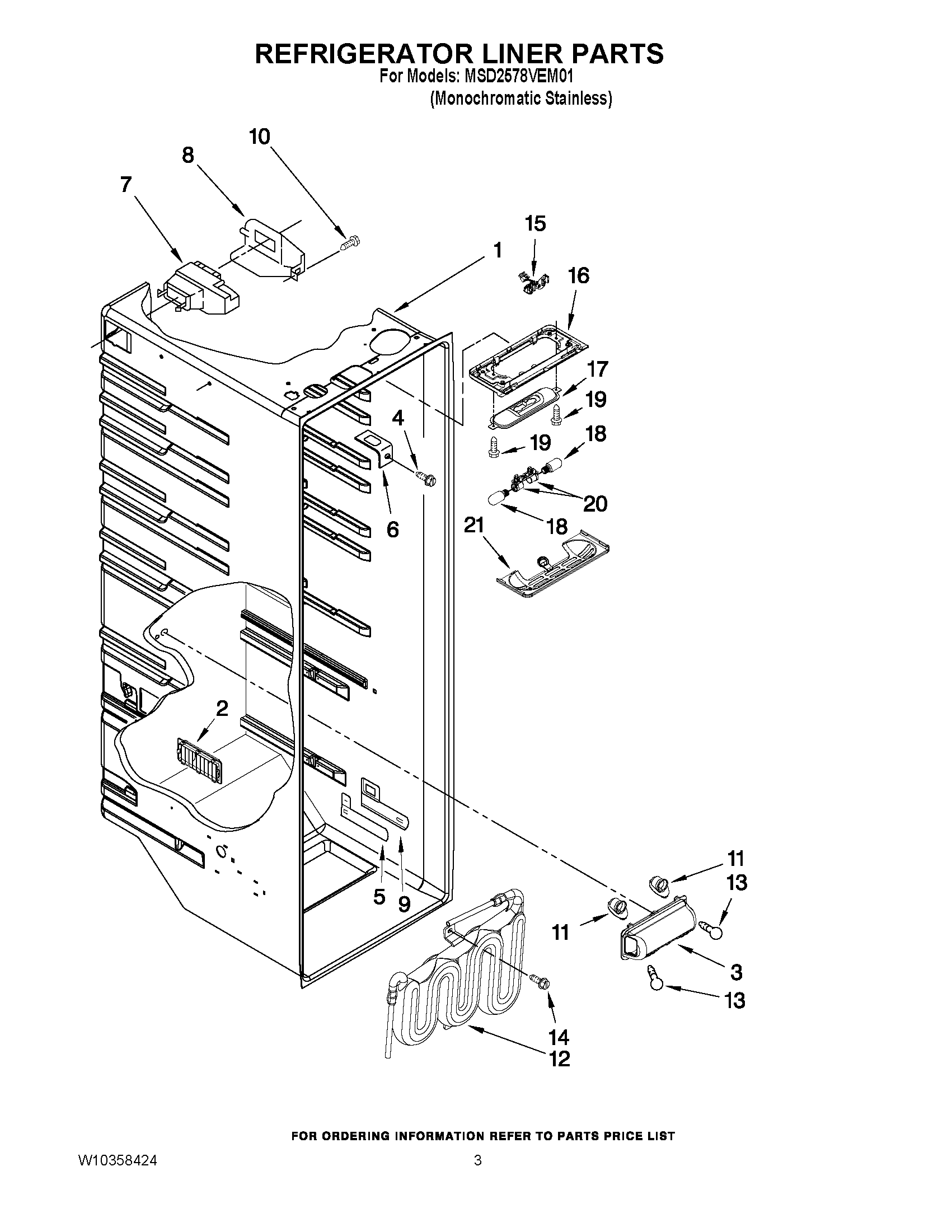

MSD2578VEM01 02 – REFRIGERATOR LINER PARTS

MSD2578VEM01 02 – REFRIGERATOR LINER PARTS

Written by

in

MSD2578VEM01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2257741
4	MAY 489084
5	MAY 2182757
6	MAY 2256085
7	ASSEMBLY, AIR DIFFUSER
8	MAY W10128735
9	MAY W10175967
10	MAY 486298
11	Socket, Light
12	MAY W10204356
13	MAY W10311505
14	Screw
15	WIRE ASSY, LIGHT
16	Trim, Light
17	MAY 2223680
18	Bulb, Light
19	MAY 489478
20	MAY 2223857
21	Light Lens, Control Box
