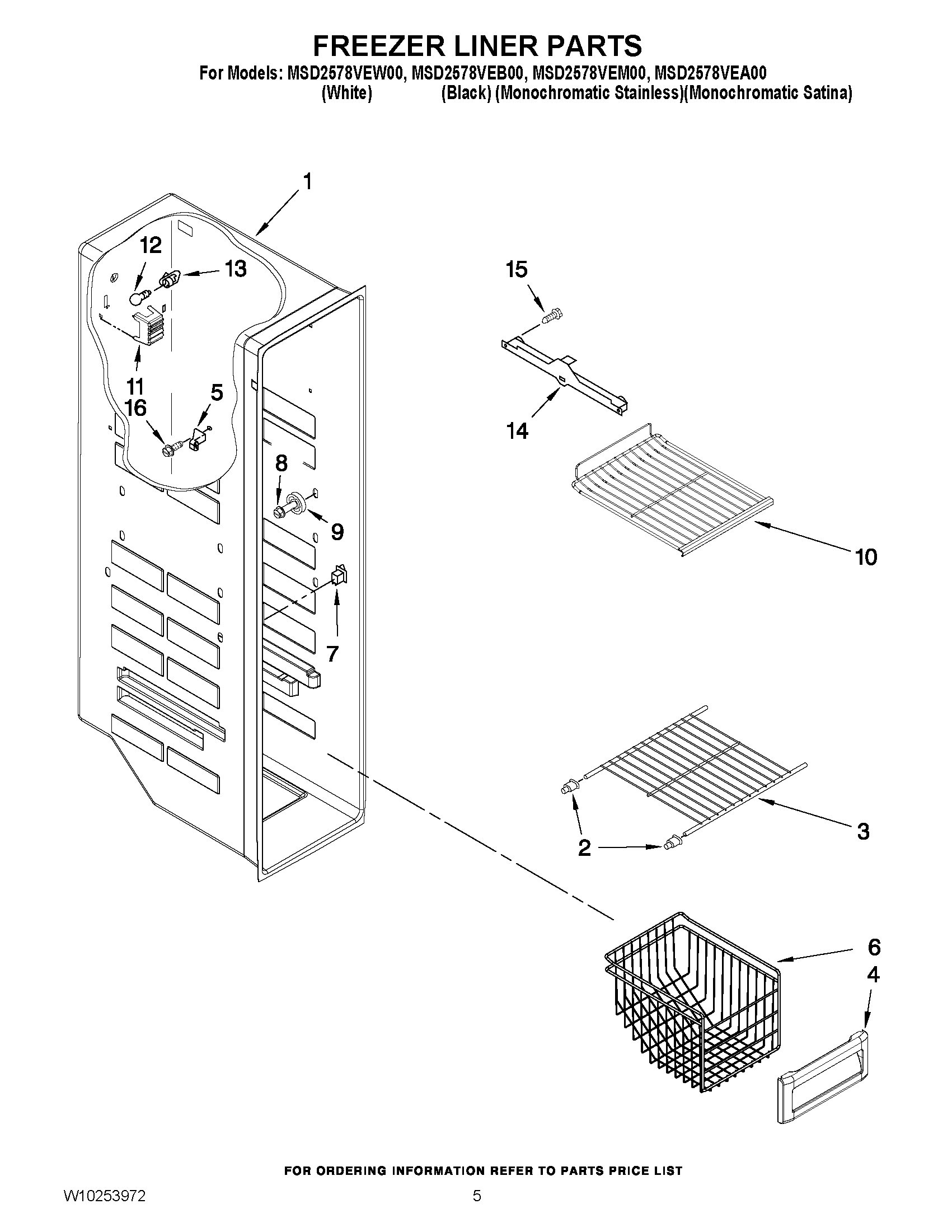

MSD2578VEW00 04 – FREEZER LINER PARTS

MSD2578VEW00 04 – FREEZER LINER PARTS

Written by

in

MSD2578VEW00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Cup, Shelf Mount
3	MAY W10318961
4	MAY W10153254
5	Support, Stud (4)
6	MAY W10153523
7	Switch, Rocker Arm
8	MAY W10191952
9	ASSEMBLY, SHELF STUD
10	Shelf, Slide Out Lower (2)
11	MAY 2212340
12	MAY W10194422
13	Socket, Light
14	Slide, Container (Left Side)
14	Slide, Container (Right Side)
15	MAY 489100
16	MAY 3400893
