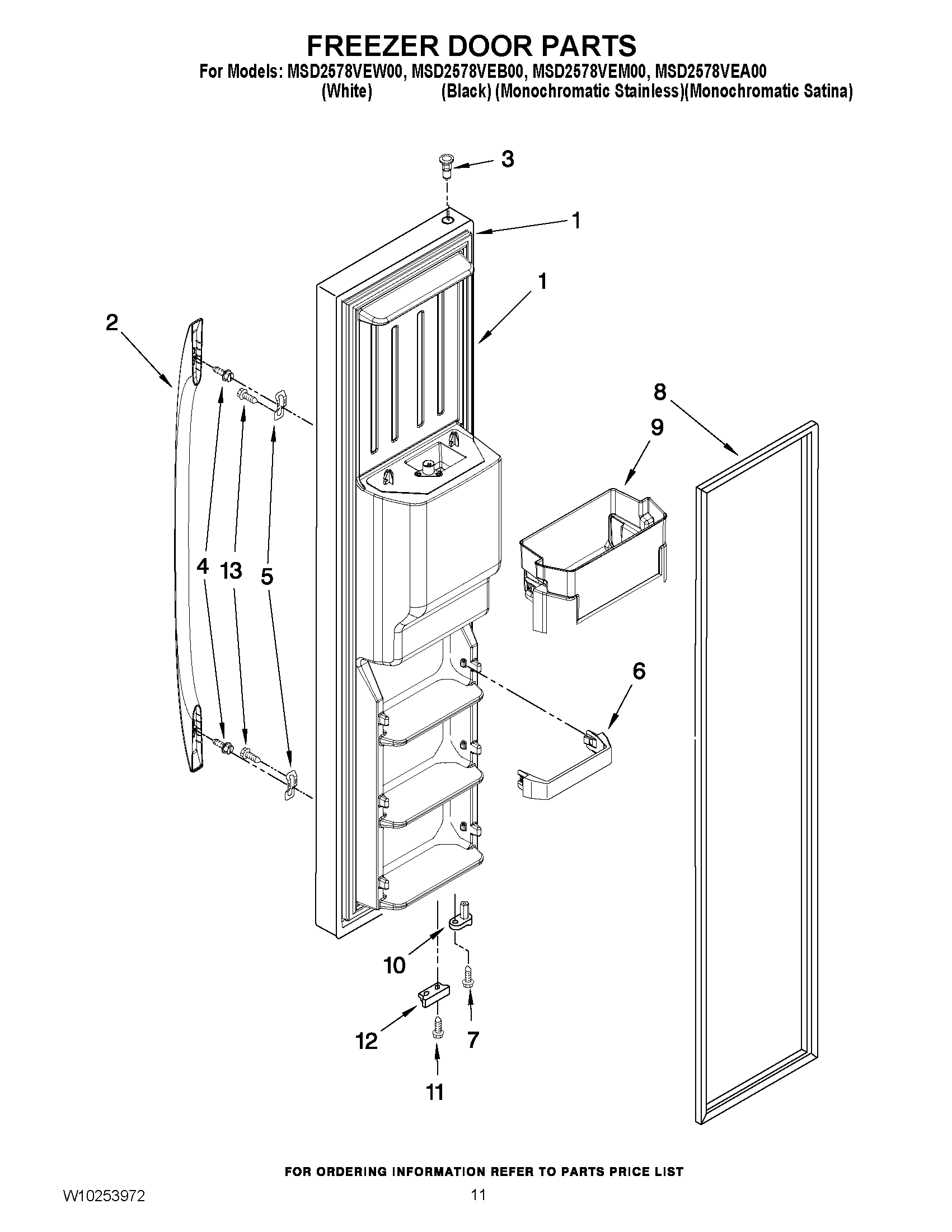

MSD2578VEW00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10216891
1	MAY W10202787
1	MAY W10216893
1	MAY W10216892
2	HANDLE (INCLUDES ITEMS 7 & 9) (WHITE)
2	HANDLE
2	HANDLE (INCLUDES ITEMS 7 & 9) (BLACK)
3	THIMBLE
4	SCREW 10-16 X 1/2 (FOR WHITE & BLACK MODELS)
5	MAY 2255411
6	Trim, Door (4)
7	MAY 3400012
8	MAY 2309533
8	DOOR GASKET, MAGNETIC (SERVICE) (GREY)
8	Door Gasket, Magnetic (White)
9	MAY W10142358
10	MAY 2323535
11	MAY 489420
12	Bracket, Door Stop (Black)
12	Bracket, Door Stop (Chrome)
13	MAY W10288153
