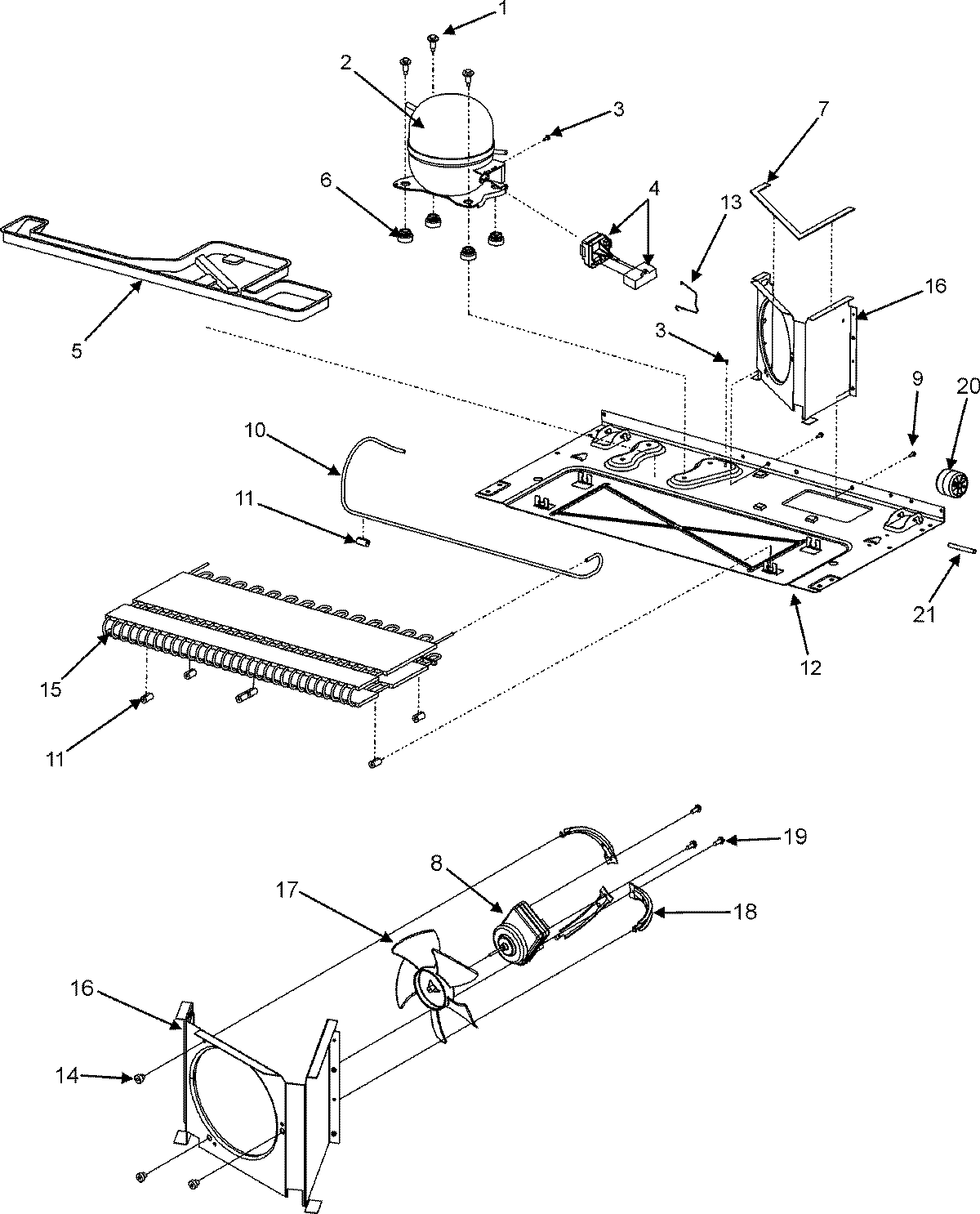

MSD2652KES 02 – COMPRESSOR/COND MOTOR/REAR ROLLERS

Products

Position	Product
1	MAY 67006432
2	W10309990 Whirlpool Refrigerator Compressor
3	MAY 67006433
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	MAY 67004848
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	MAY 67004432
9	Screw (10)
10	MAY 67004700
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67005889
13	MAY 12576801
14	GROMMET, BRACKET
15	WP67006131 Whirlpool Refrigerator Condenser
15	MAY 67002235
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	MAY 67004953
19	WP67004954 Whirlpool Refrigerator Screw
20	WP67005149 Whirlpool Roller
21	67006434 Whirlpool Axle Pin
22	67004955 Whirlpool Refrigerator MC Harness
